Connection Examples

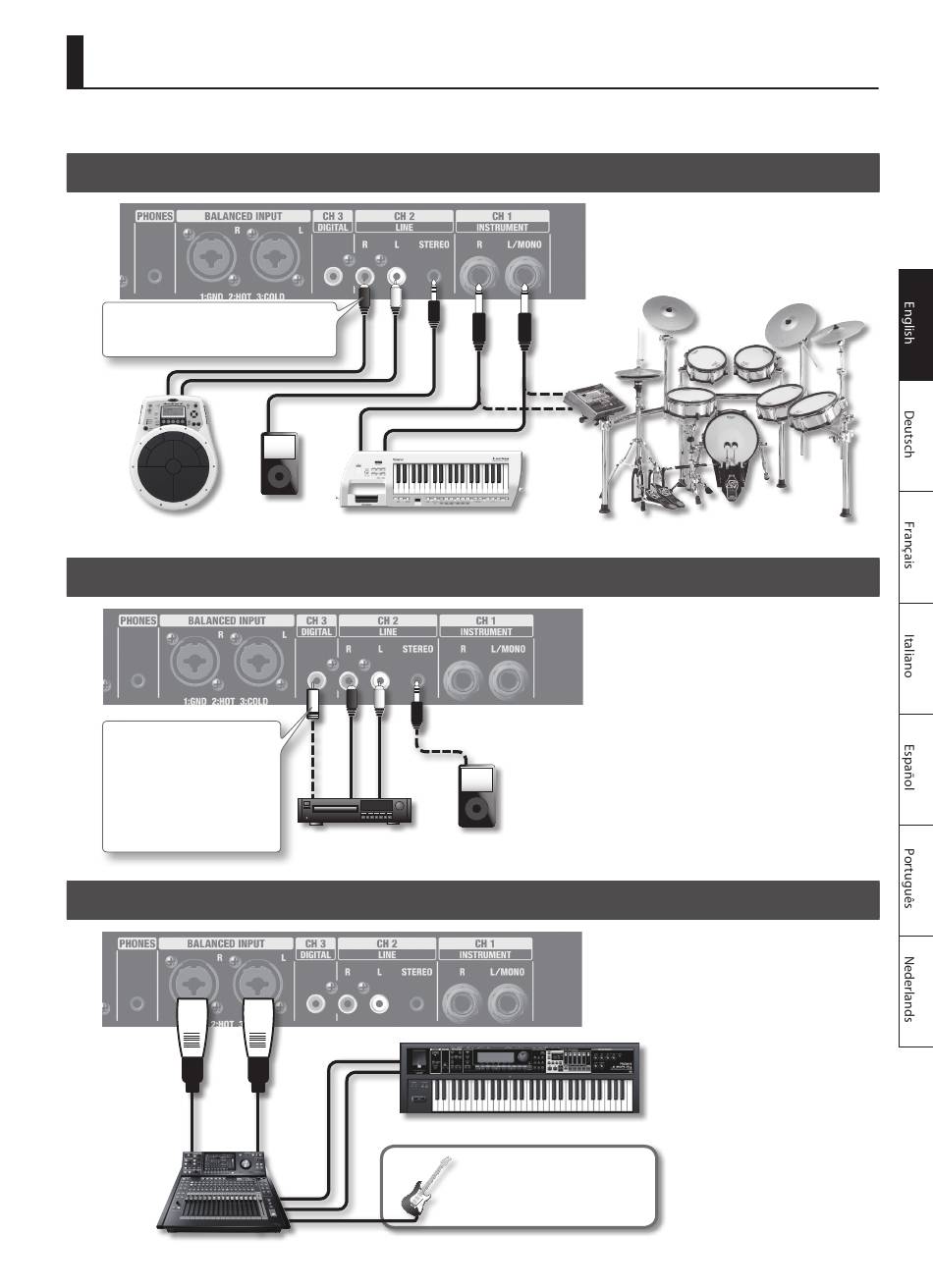

Sound from all connected equipment can be played simultaneously.
Playing a Synthesizer or V-Drums Set
* Use an adapter cable (such as an RCA phono
to 1/4" phone adapter) as appropriate for
the device you're connecting.
Percussion Audio Player, etc.
Playing Music from a DVD Player or Audio Player
Do not input anything other than
a stereo digital signal to the CH
3 jack. Inputting a digital signal
such as 5.1 channel audio will
produce noise.
Set the connected device to its
"stereo" or "PCM" setting.
Playing Music from a Mixer
Mixer
Synthesizer
or or
DVD player Audio player
Synthesizer
* Do not connect a guitar, bass,
or microphone directly to the
CM-110 or CM-220.
You can connect an audio player or other source, and
play it back simultaneously.
or
V-Drums
If your DVD player has a digital output jack, connect it to
the CH 3 jack for the best-quality playback.
Connect your mixer to the BALANCED INPUT jacks. This
allows you to use the system as a set of high-quality
monitors.
