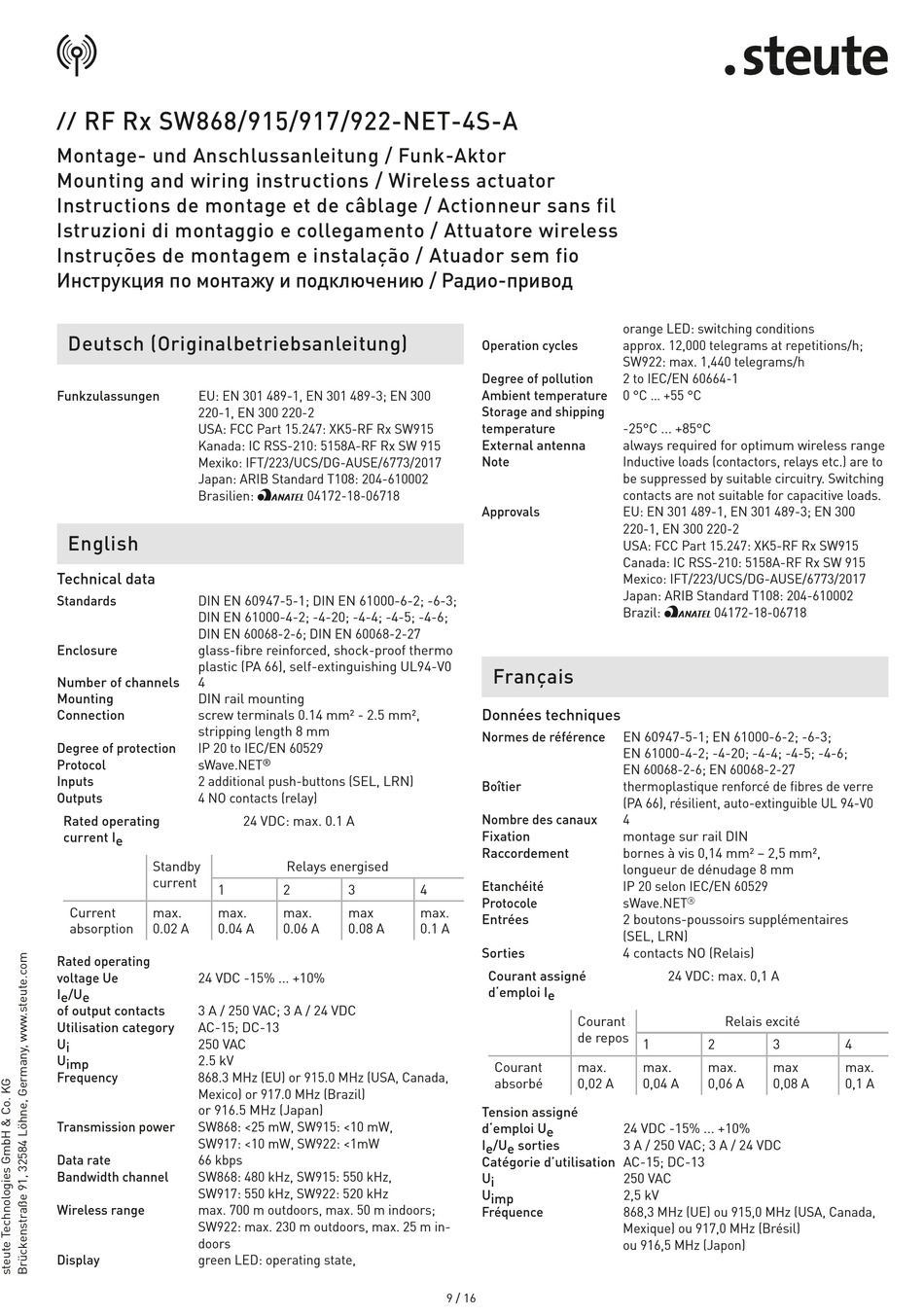

RF Rx SW868/915/917/922-NET-4S-A
//
Montage- und Anschlussanleitung / Funk-Aktor
Mounting and wiring instructions / Wireless actuator
Instructions de montage et de câblage / Actionneur sans fil
Istruzioni di montaggio e collegamento / Attuatore wireless
Instruções de montagem e instalação / Atuador sem fio
Инструкция по монтажу и подключению / Радио-привод
Deutsch (Originalbetriebsanleitung)
Funkzulassungen EU: EN 301 489-1, EN 301 489-3; EN 300
220-1, EN 300 220-2
USA: FCC Part 15.247: XK5-RF Rx SW915
Kanada: IC RSS-210: 5158A-RF Rx SW 915
Mexiko: IFT/223/UCS/DG-AUSE/6773/2017
Japan: ARIB Standard T108: 204-610002
Brasilien:
English
Technical data
Standards DIN EN 60947-5-1; DIN EN 61000-6-2; -6-3;
DIN EN 61000-4-2; -4-20; -4-4; -4-5; -4-6;
DIN EN 60068-2-6; DIN EN 60068-2-27
Enclosure glass-fibre reinforced, shock-proof thermo
plastic (PA 66), self-extinguishing UL94-V0
Number of channels 4
Mounting DIN rail mounting
Connection screw terminals 0.14 mm² - 2.5 mm²,
stripping length 8 mm
Degree of protection IP 20 to IEC/EN 60529
Protocol sWave.NET
Inputs 2 additional push-buttons (SEL, LRN)
Outputs 4 NO contacts (relay)
Rated operating
current I e
Standby
current
1
Current max. max.
absorption 0.02 A 0.04 A
Rated operating
voltage Ue 24 VDC -15% ... +10%
I e /U e
of output contacts 3 A / 250 VAC; 3 A / 24 VDC
Utilisation category AC-15; DC-13
U i 250 VAC
U imp 2.5 kV
Frequency 868.3 MHz (EU) or 915.0 MHz (USA, Canada,
Mexico) or 917.0 MHz (Brazil)
or 916.5 MHz (Japan)
Transmission power SW868: <25 mW, SW915: <10 mW,
SW917: <10 mW, SW922: <1mW
Data rate 66 kbps
Bandwidth channel SW868: 480 kHz, SW915: 550 kHz,
SW917: 550 kHz, SW922: 520 kHz
Wireless range max. 700 m outdoors, max. 50 m indoors;
SW922: max. 230 m outdoors, max. 25 m in-
doors
Display green LED: operating state,
04172-18-06718
ö
®
24 VDC: max. 0.1 A
Relays energised
2 3
max. max
0.06 A 0.08 A
Operation cycles
Degree of pollution
Ambient temperature
Storage and shipping
temperature
External antenna
Note
Approvals
Français
Données techniques
Normes de référence
Boîtier
Nombre des canaux
Fixation
Raccordement
Etanchéité
4
Protocole
max.
Entrées
0.1 A
Sorties
Courant assigné
d'emploi I e
Courant
de repos
Courant max.
absorbé 0,02 A
Tension assigné
d'emploi U e
I e /U e sorties
Catégorie d'utilisation AC-15; DC-13
U i
U imp
Fréquence
9 / 16
orange LED: switching conditions
approx. 12,000 telegrams at repetitions/h;
SW922: max. 1,440 telegrams/h
2 to IEC/EN 60664-1
0 °C ... +55 °C
-25°C ... +85°C
always required for optimum wireless range
Inductive loads (contactors, relays etc.) are to
be suppressed by suitable circuitry. Switching
contacts are not suitable for capacitive loads.
EU: EN 301 489-1, EN 301 489-3; EN 300
220-1, EN 300 220-2
USA: FCC Part 15.247: XK5-RF Rx SW915
Canada: IC RSS-210: 5158A-RF Rx SW 915
Mexico: IFT/223/UCS/DG-AUSE/6773/2017
Japan: ARIB Standard T108: 204-610002
Brazil: 04172-18-06718
ö
EN 60947-5-1; EN 61000-6-2; -6-3;
EN 61000-4-2; -4-20; -4-4; -4-5; -4-6;
EN 60068-2-6; EN 60068-2-27
thermoplastique renforcé de fibres de verre
(PA 66), résilient, auto-extinguible UL 94-V0
4
montage sur rail DIN
bornes à vis 0,14 mm² – 2,5 mm²,
longueur de dénudage 8 mm
IP 20 selon IEC/EN 60529
sWave.NET
r
2 boutons-poussoirs supplémentaires
(SEL, LRN)
4 contacts NO (Relais)
24 VDC: max. 0,1 A
Relais excité
1 2 3
max. max. max
0,04 A 0,06 A 0,08 A
24 VDC -15% ... +10%
3 A / 250 VAC; 3 A / 24 VDC
250 VAC
2,5 kV
868,3 MHz (UE) ou 915,0 MHz (USA, Canada,
Mexique) ou 917,0 MHz (Brésil)
ou 916,5 MHz (Japon)
4
max.
0,1 A
