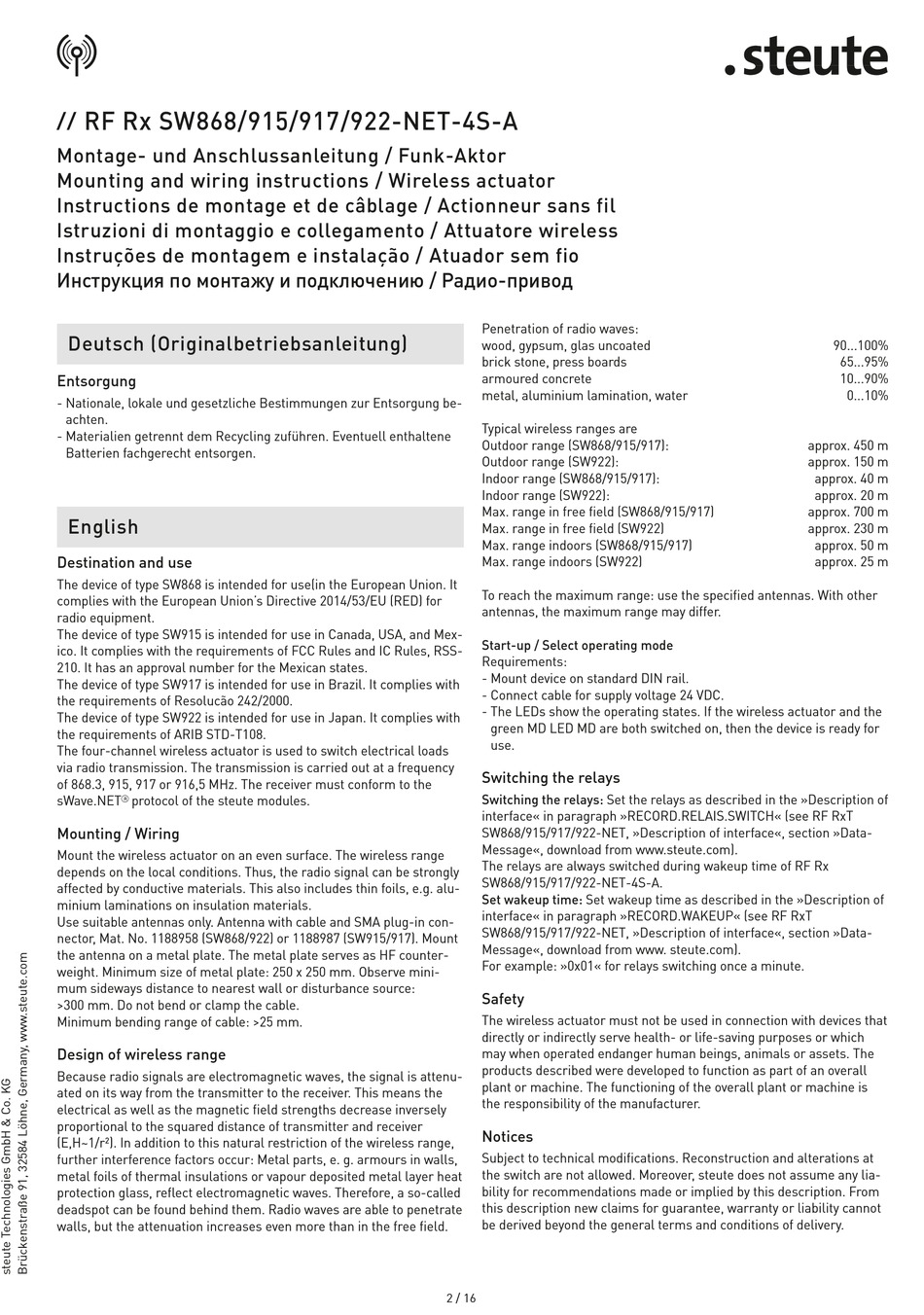

steute RF Rx SW868-NET-4S-A Montage- Und Anschlussanleitung Seite 2

RF Rx SW868/915/917/922-NET-4S-A
//
Montage- und Anschlussanleitung / Funk-Aktor
Mounting and wiring instructions / Wireless actuator
Instructions de montage et de câblage / Actionneur sans fil
Istruzioni di montaggio e collegamento / Attuatore wireless
Instruções de montagem e instalação / Atuador sem fio
Инструкция по монтажу и подключению / Радио-привод
Deutsch (Originalbetriebsanleitung)
Entsorgung
- Nationale, lokale und gesetzliche Bestimmungen zur Entsorgung be-
achten.
- Materialien getrennt dem Recycling zuführen. Eventuell enthaltene
Batterien fachgerecht entsorgen.
English
Destination and use
The device of type SW868 is intended for use(in the European Union. It
complies with the European Union's Directive 2014/53/EU (RED) for
radio equipment.
The device of type SW915 is intended for use in Canada, USA, and Mex-
ico. It complies with the requirements of FCC Rules and IC Rules, RSS-
210. It has an approval number for the Mexican states.
The device of type SW917 is intended for use in Brazil. It complies with
the requirements of Resolucão 242/2000.
The device of type SW922 is intended for use in Japan. It complies with
the requirements of ARIB STD-T108.
The four-channel wireless actuator is used to switch electrical loads
via radio transmission. The transmission is carried out at a frequency
of 868.3, 915, 917 or 916,5 MHz. The receiver must conform to the
sWave.NET protocol of the steute modules.
r
Mounting / Wiring
Mount the wireless actuator on an even surface. The wireless range
depends on the local conditions. Thus, the radio signal can be strongly
affected by conductive materials. This also includes thin foils, e.g. alu-
minium laminations on insulation materials.
Use suitable antennas only. Antenna with cable and SMA plug-in con-
nector, Mat. No. 1188958 (SW868/922) or 1188987 (SW915/917). Mount
the antenna on a metal plate. The metal plate serves as HF counter-
weight. Minimum size of metal plate: 250 x 250 mm. Observe mini-
mum sideways distance to nearest wall or disturbance source:
>300 mm. Do not bend or clamp the cable.
Minimum bending range of cable: >25 mm.
Design of wireless range
Because radio signals are electromagnetic waves, the signal is attenu-
ated on its way from the transmitter to the receiver. This means the
electrical as well as the magnetic field strengths decrease inversely
proportional to the squared distance of transmitter and receiver
(E,H~1/r²). In addition to this natural restriction of the wireless range,
further interference factors occur: Metal parts, e. g. armours in walls,
metal foils of thermal insulations or vapour deposited metal layer heat
protection glass, reflect electromagnetic waves. Therefore, a so-called
deadspot can be found behind them. Radio waves are able to penetrate
walls, but the attenuation increases even more than in the free field.
Penetration of radio waves:
wood, gypsum, glas uncoated
brick stone, press boards
armoured concrete
metal, aluminium lamination, water
Typical wireless ranges are
Outdoor range (SW868/915/917):
Outdoor range (SW922):
Indoor range (SW868/915/917):
Indoor range (SW922):
Max. range in free field (SW868/915/917)
Max. range in free field (SW922)
Max. range indoors (SW868/915/917)
Max. range indoors (SW922)
To reach the maximum range: use the specified antennas. With other
antennas, the maximum range may differ.
Start-up / Select operating mode
Requirements:
- Mount device on standard DIN rail.
- Connect cable for supply voltage 24 VDC.
- The LEDs show the operating states. If the wireless actuator and the
green MD LED MD are both switched on, then the device is ready for
use.
Switching the relays
Switching the relays: Set the relays as described in the »Description of
interface« in paragraph »RECORD.RELAIS.SWITCH« (see RF RxT
SW868/915/917/922-NET, »Description of interface«, section »Data-
Message«, download from www.steute.com).
The relays are always switched during wakeup time of RF Rx
SW868/915/917/922-NET-4S-A.
Set wakeup time: Set wakeup time as described in the »Description of
interface« in paragraph »RECORD.WAKEUP« (see RF RxT
SW868/915/917/922-NET, »Description of interface«, section »Data-
Message«, download from www. steute.com).
For example: »0x01« for relays switching once a minute.
Safety
The wireless actuator must not be used in connection with devices that
directly or indirectly serve health- or life-saving purposes or which
may when operated endanger human beings, animals or assets. The
products described were developed to function as part of an overall
plant or machine. The functioning of the overall plant or machine is
the responsibility of the manufacturer.
Notices
Subject to technical modifications. Reconstruction and alterations at
the switch are not allowed. Moreover, steute does not assume any lia-
bility for recommendations made or implied by this description. From
this description new claims for guarantee, warranty or liability cannot
be derived beyond the general terms and conditions of delivery.
