This guide must be translated (where applicable) by the dealer in the language of the country where the equipment is used.
For your own safety, you must strictly follow the usage, inspection, maintenance and storage instructions.
KRATOS SAFETY cannot be held liable for any direct or indirect accident occurring following use other than that provided for in these instructions; do
not use this equipment beyond its limits!
INSTRUCTIONS FOR USE AND PRECAUTIONS: The MULTISAFEWAY is an anchorage point; it complies with standard EN 795:2012 Type A;
the mounting brackets (FA 60 022 01 and FA 60 022 02) must be fixed in/on a structure, whereas the lifting arm and the davit mast can be temporarily
installed. The lifting arm and the davit mast are transportable and can be mounted on different adaptation plates. The MULTISAFEWAY can only be
used by one person at a time, and is intended to be used to access confined spaces: tanks, silos, sewers, wells, etc., or when working on façades.
The "MULTISAFEWAY anchor" comprises a combination of at least three components: lifting arm + davit mast + mounting bracket. It can be fitted
with optional mounting brackets. Each component is described below. It is imperative that ONLY ELEMENTS MADE BY KRATOS SAFETY ARE
USED.
MULTISAFEWAY also complies with Machinery Directive 2006/42/EC for lifting a maximum weight of 300 kg.
All the elements (pulleys, covers, safety pins, etc.) cannot be lost.

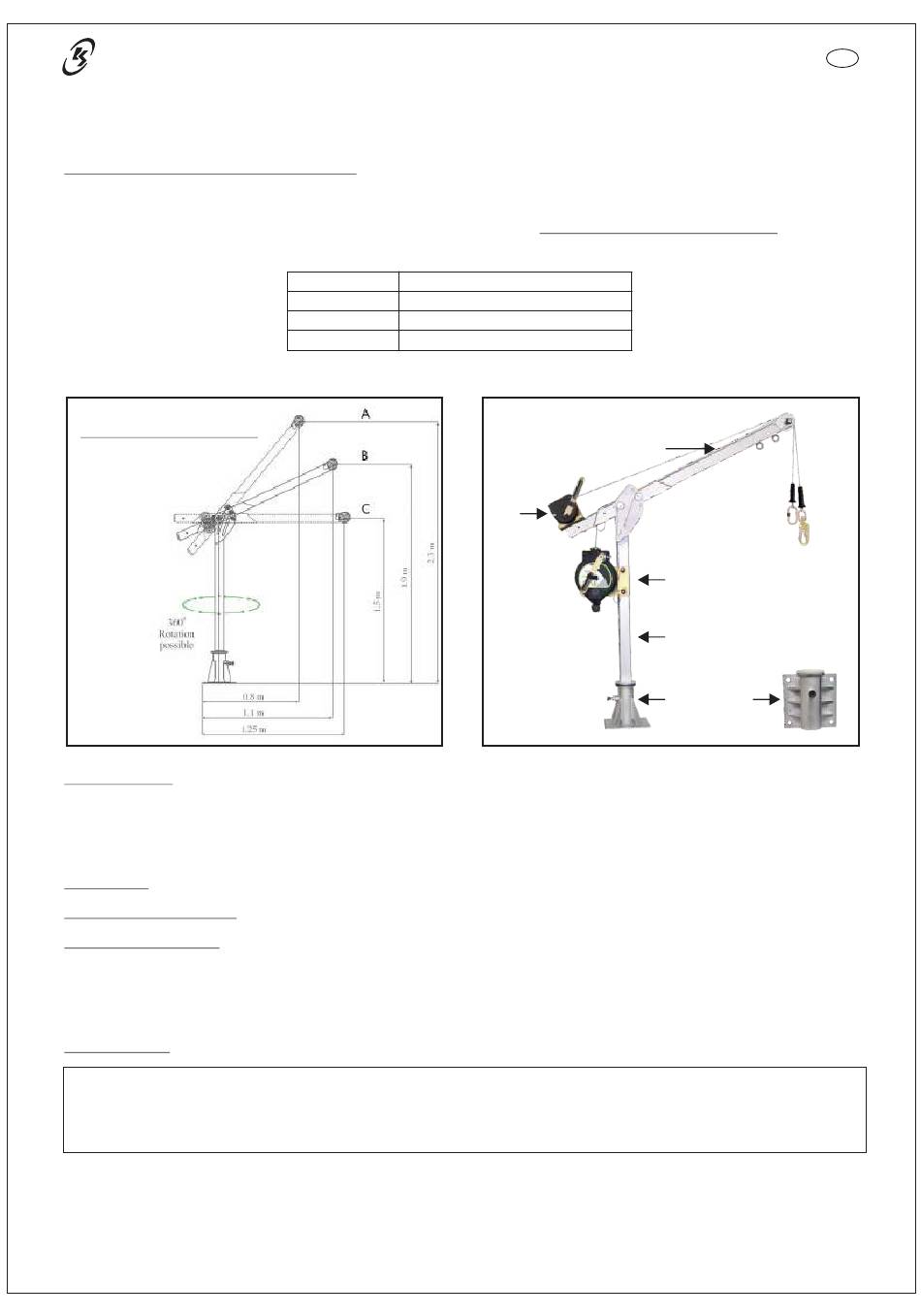

Can be used in three possible positions:
A = high position
B = middle position
C = low position
MULTISAFEWAY's various components:
The lifting arm (1): The lifting arm has two anchoring rings on its far end that are for attaching an EN363 fall arrest system (retractable fall arrester or
sliding fall arrester on flexible anchor line, etc.) and a hanging/rope access work system.
The end of the lifting arm is equipped with two end pulleys for cable passages, protected by a cover.
The other end of the arm can be fitted with an EN1496 Class A rescue lifting device [winch type – ref. FA 60 003 00 (20 m) or FA 60 023 00 (30 m)].
MULTISAFEWAY comes with the fasteners (screws with nuts) for mounting the winch on the lifting arm.
Lastly, the lifting arm is equipped with a return pulley located at the axis.
The lifting arm is indexable, and can be used in 3 positions (high, middle, low).
The davit mast (2): The mast can be fitted with an adapter plate [ref. FA 60 022 03 or FA 60 022 04], needed for installation of a retractable fall arrester
with a built-in EN1496 Class B rescue lifting device [ref. FA 20 401 20 (20 m) or FA 20 401 30 (30 m)].
The ground mounting bracket (3): This fixture supports the davit mast, and is mounted onto a surface that is perfectly level. The assembly must be
perfectly stable.
The wall mounting bracket (4): This fixture supports the davit mast, and is mounted onto a surface that is perfectly vertical. The assembly must be
perfectly stable.
Both of the mounting brackets are equipped with an indexing pin (button) that enables the davit to rotate 360 degrees. The davit must be immobilised in a
fixed position when in use.
The davit (lifting arm + mast) can be transported and used in different sites; however, the mounting brackets (wall or floor) must be permanently affixed
to a receiving structure.
INSTALLATION:
The receiving structure must be able to withstand stresses equivalent to 22.1 MPa or 22.1N/mm . The fasteners/structural anchors must be strong
enough to handle this strain. They must be stainless steel, size M16, class 8.8 (minimum).
Using the nature of the receiving structure and the site's configuration, an engineer must run calculations to determine that the sizing of the structural
anchors (length), the type of fixture (chemical or mechanical fasteners, etc.), the position of the structural anchors, and thus of the mounting bracket,
are all correct.
Once the mounting bracket has been installed: pull the indexing pin on the plate and rotate 90°, install the davit mast, and push the indexing pin back in.
Install the lifting arm by first inserting the safety pin in line with the davit mast. Choose a position for the lifting arm (high, middle, low) as shown in the
diagram in Fig. 1, then insert the second safety pin. The davit is ready for use.
Ref. Description
Lifting arm + Davit mast
FA 60 022 00
FA 60 022 01
Ground mounting bracket
FA 60 022 02 Wall mounting bracket
4
(1)
(A)
2
GB
(B)
(2)
(3) (4)
