Technical parameters

a
USS-ZM
USS-00
USS-01
USS-02
a/I.
USS-03
USS-04
USS-05
USS-06/S
USS-06/R
USS-07
a/II.
USS-08
USS-09
USS-10
a/III.
USS-11
USS-12
USS-13
A1 (A11)
A3 (A13)
USS-14
A2 (A12)
USS-15
b c
A3 A1
A2
x
A12
A11 A13
x x
A3 A1
6 A / 250 V
(A12)
(A13)
A1
(A12)
A3
8 A / 250 V
(A13) A2
(A11)
A1
(A12)
A3
6 A / 250 V
(A13) A2
(A11)
A1
(A12)
A3
6 A / 250 V
(A13) A2
(A11)
A1
(A12)
A3
6 A / 250 V
(A13) A2
(A11)
A1
A3
8 A / 250 V
(A12)
(A13)
A1
A3
8 A / 250V
(A12)
(A13)
A1
A3
(A12)
(A13)
10 A / 250 V
A2
(A11)
A1
A3
(A12)
(A13)
10 A / 250 V
A2
(A11)
A1
A3
(A12)
(A13)
10 A / 250 V
A2
(A11)
A1-A2, AC 250 V
A3
A1
(A13)
A1-A3,
(A11)
A2
AC/DC 24 V
(A12)
A1-A2, AC 250 V
A3
A1
(A13)
A1-A3,
(A11)
A2
AC/DC 24 V
(A12)
A1-A2, AC 250 V
A3
A1
(A13)
A1-A3,
(A11)
A2
AC/DC 24 V
(A12)
A1-A2, AC 250 V
A3
A1
(A13)
A1-A3,
(A11)
A2
AC/DC 24 V
(A12)
A1-A2, AC 250 V
A3
A1
(A13)
A1-A3,
(A11)
A2
AC/DC 24 V
(A12)
A1-A2, AC 250 V
A3
A1
(A13)
A1-A3,
(A11)
A2
AC/DC 24 V
(A12)

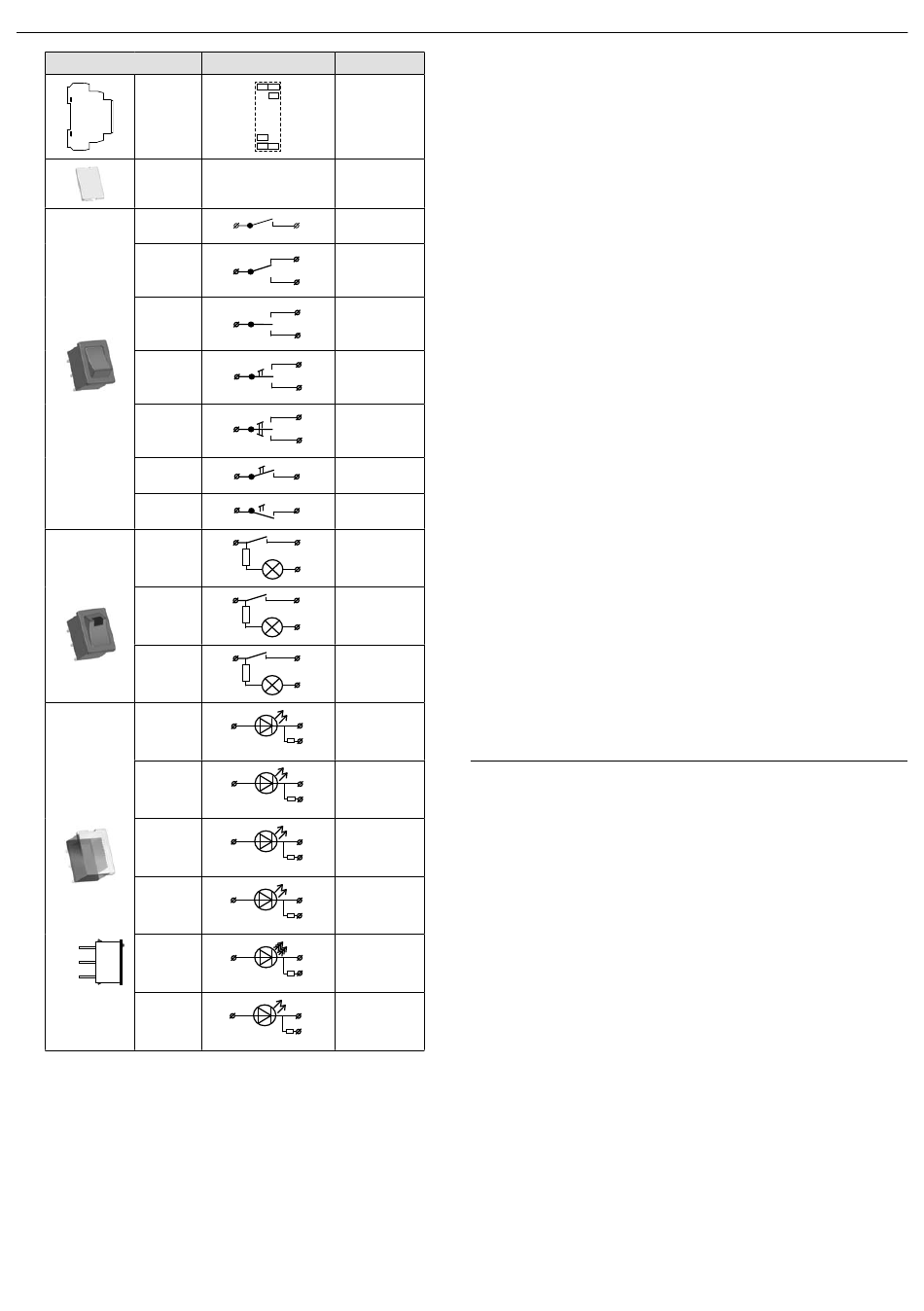

a) Name
USS-ZM - basic MODULE (housing with terminals and contacts)
USS-00 - blind fl ange - Used to fi ll in an empty position in the front panel of the USS
Module. Dimensions: 21 x 15 x 7 mm (0.83" x 0.59" x 0.28"). Color: Grey, RAL7035 (the
same as the housing).
a/I. SWITCHES, PUSH BUTTONS - they have a low uplift and a large fi ngerboard. Thanks
to this design and switching mechanism they fulfi l high expectations for number of
switching and contact quality. Dimensions: 21 x 15 x 20 mm (0.83" x 0.59" x 0.79").
USS-01 - switch
USS-02 - alternation switch
USS-03 - switch with cental position
USS-04 - switch + button with central position
USS-05 - switching button with central position
USS-06/S - NO switch
USS-06/R - NC switch
a/II. SWITCHES WITH GLOW LAMP - switch and signalization in one unit. Signalization is
carried out by a glow lamp in dolly including series resistance. It is possible to instal it
for permanent indication or for an intermittend by contact of the switch. Colours: red,
green, yellow. Supply voltage of the signalling light: AC 250 V. Dimensions: 21 x 15 x 20
mm (0.83" x 0.59" x 0.79").
USS-07 - switch with glow lamp (red)
USS-08 - switch with glow lamp (green)
USS-09 - switch with glow lamp (yellow)
a/III. SIGNALLING LIGHT - high luminance is ensured by SMD LED diode, which equally
illuminates by its colour all surface of the transparent signalling light. It is possible to
supply the signalling ligt by AC 230 V, and also by AC/DC 24 V with minimal input. Red
sig. light is delivered also in a fl ashing version. - unit: 14. Colours: red, green, yellow,
white, blue. Dimensions: 21 x 15 x 14 mm (0.83" x 0.59" x 0.55").
USS-10 - signalling LED (red)
USS-11 - signalling LED (green)
USS-12 - signalling LED (yellow)
USS-13 - signalling LED (white)
USS-14 - signalling LED fl ashing (red)
USS-15 - signalling LED (blue)
b) Connection
c) for switches - rated current / voltage
for signalling lights - supply voltage
Warning
Device is constructed for connection for 1-phase main voltage or AC/DC 24 and must
be installed according to norms valid in existing state. Installation, connection, setting
and servicing For right device protection should be fronted-end certain element. Before
starting installation must be main switch in position „SWITCH OFF" and device should be
out of voltage. Don´t install device to suppliers surcharge electro-magnetic interference.
By right installation of device is provide good air circulate to don´t pass maximal oper-
ating temperature,in case of higher ambient temperature and permanent working. For
installation and setting use screw-driver cca 2 mm. The device is full-electronic - installa-
tion should be eff ected according to this. Function without problems is too dependent
on previous type of transportation, storing and manipulation. In case of any vestige of
destruction, deformation, non-function or missing part, don´t install and made claim to
seller. Product may be ,after passing operating time, disassembled, recycled or puted on
protected tip. Connection according to the details in this direction. should be installed
by qualifi ed electrician staff only, who learn this instruction and functions of device
