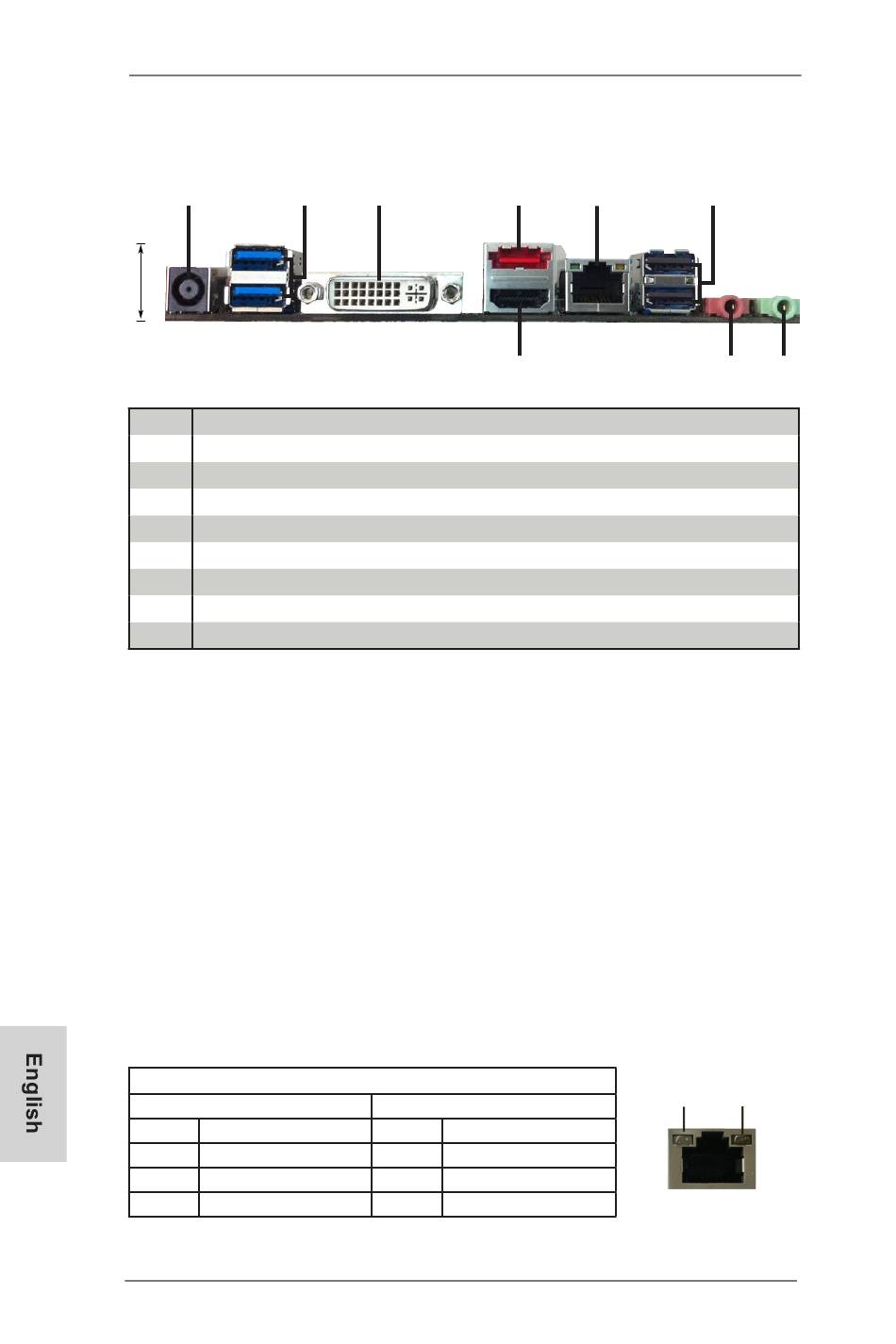

I/O Panel
1
<20mm
1*
DC Jack
2
USB 3.0 Ports (USB01)
3
DVI-I (DVI1)
4
eSATA Connector (eSATA1)
5**
LAN RJ-45 Port
6
USB 2.0 Ports (USB23)
7
Front Speaker (Lime)
8
Microphone (Pink)
9
HDMI Port (HDMI1)
* Please use a 19V power adaptor for the DC jack. This jack accepts dual barrel
plugs with an inner diameter of 2.5 mm and an outer diameter of 5.5 mm, where
the inner contact is +8 (±10%) through +19 (±10%) VDC and the shell is GND. The
maximum current rating depends on the power adaptor. The following are examples
of power adaptors that may be used:
DELTA
DELTA-ADP-150TB-150W/19V
HP
HP-TBC-BA52-150W/19V
FSP
FSP-FSP150-ABAN1-150W/19V
** There are two LEDs on the LAN port. Please refer to the table below for the LAN
port LED indications.
LAN Port LED Indications
Activity/Link LED
Status
Description
Off
No Link
Blinking Data Activity
On
100Mbps connection Yellow
4
3
2
SPEED LED
Status
Description
Off
10Mbps connection
Off
100Mbps connection
1Gbps connection
ASRock H61TM-ITX Motherboard
4
5
9
ACT/LINK
LED
LAN Port
6
8
7
SPEED
LED
