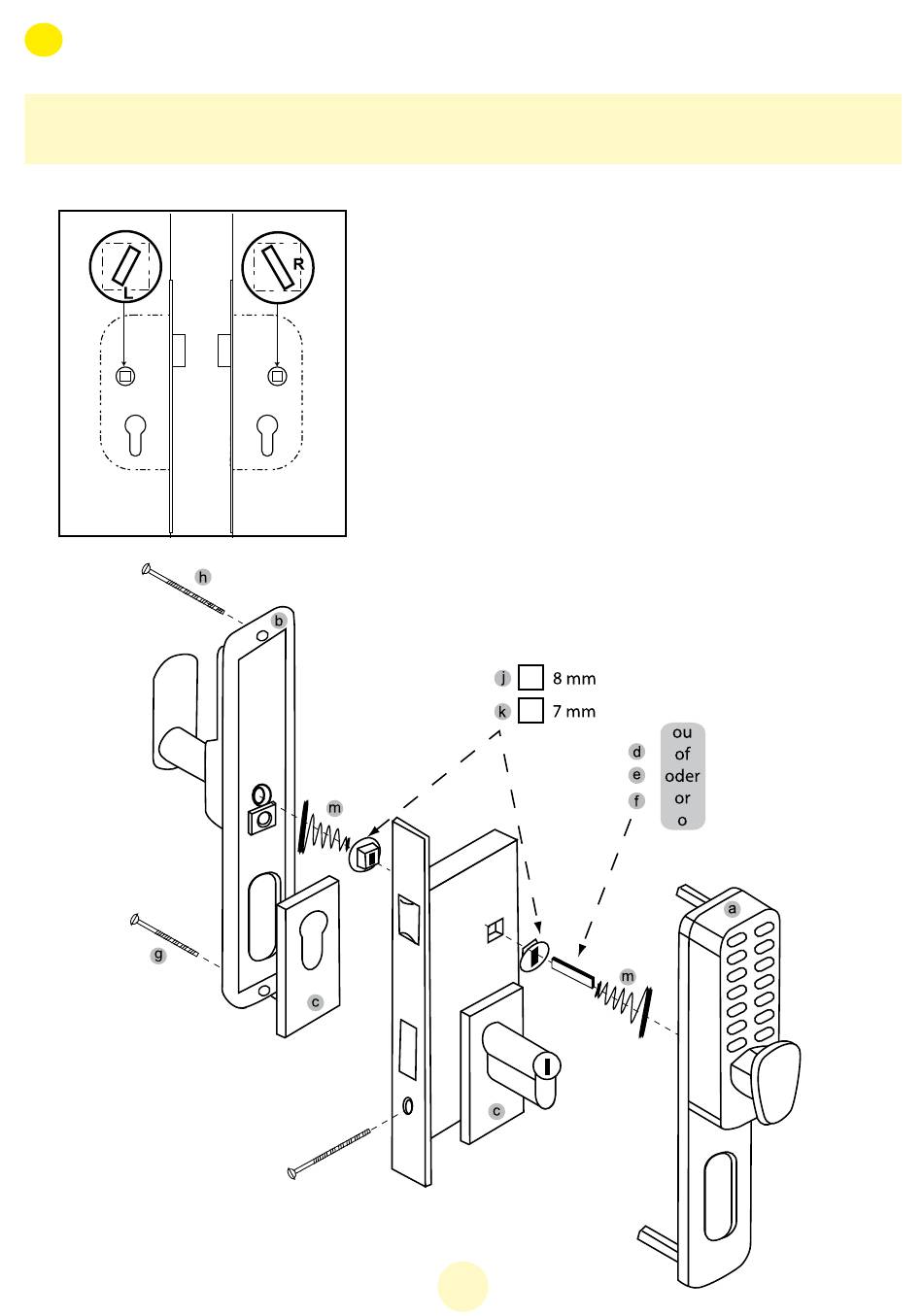

4 - Final assembly
At this step of the assembly we determined the proper adapters and the proper guide.
IMPORTANT
The adapters shall be positioned with the letters "L" and "R" in a legible position.
1. Place the "j" or "k" adapters
2. Engage the "d", "e" or "f" guide letting it stick out at each
side of the door.
3. Engage the "m" springs, their conical part, on the side of
the lock.
4. Place the embellishment front panels of the "C" cylinder.
5. Engage the "a" and "b" blocks in the guide and mount the
assembly with the supplied screws ("g" short at the bottom
and "h" long at the top).
6. Test the keypad before closing the door.
6EN
