F

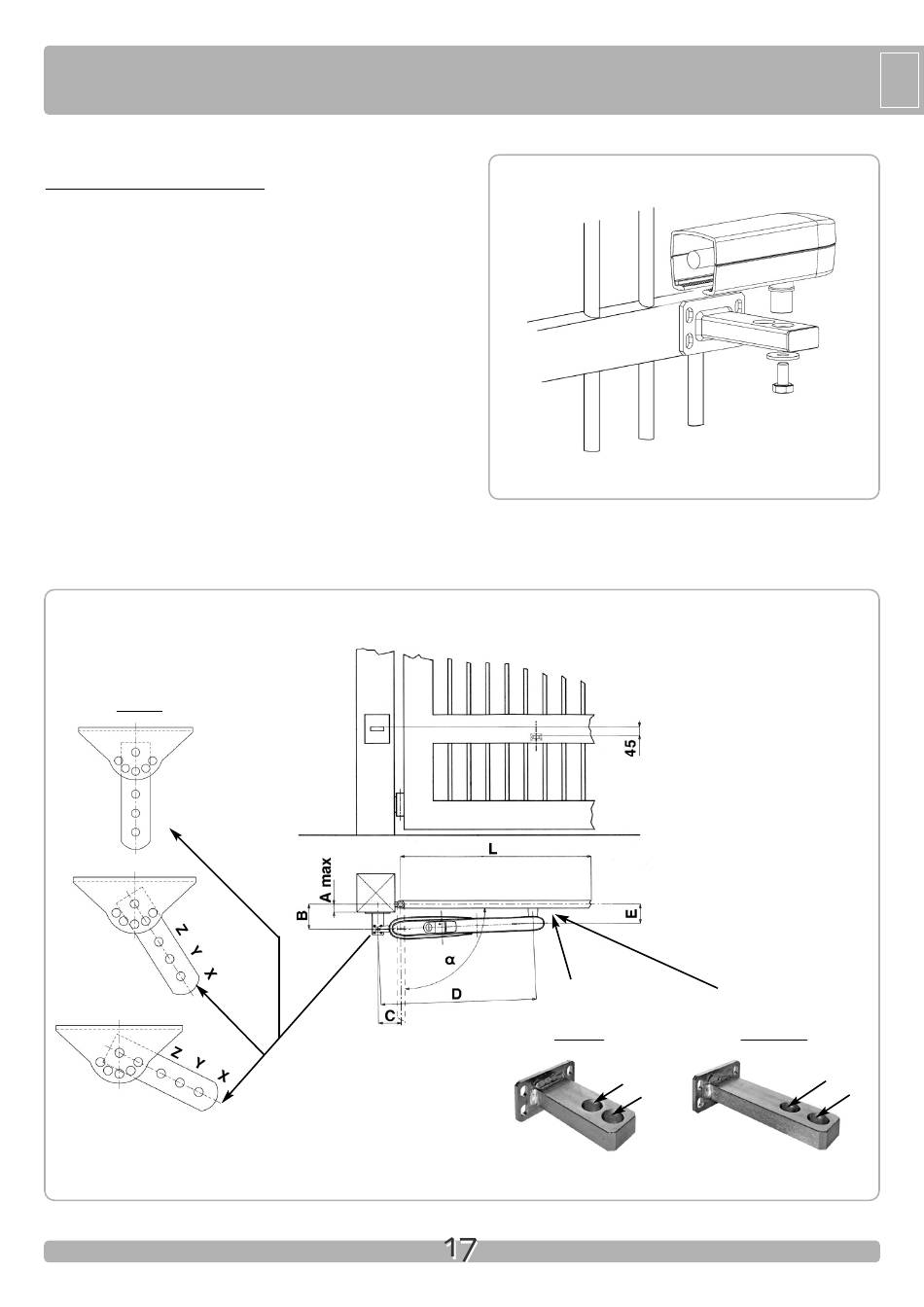

IXING THE OPERATOR ATTACHMENT TO THE GATE
(to see the TABLES of the measures).
Weld the base at the right height (Fig. 8).
Fix the PLUS and try several times to open and to close the gate,
controlling that the screwcover does not touch the moving gate.
COL
Column attachment
PLUS
Z
S1
Y
X
S2
S3
6-1624020 rev. 5 05/11/2007
ANT
Leaf attachment
PLUS
A
B
8
ANT PLUS L
Leaf attachment
PLUS L
C
D
9
G G
B B
