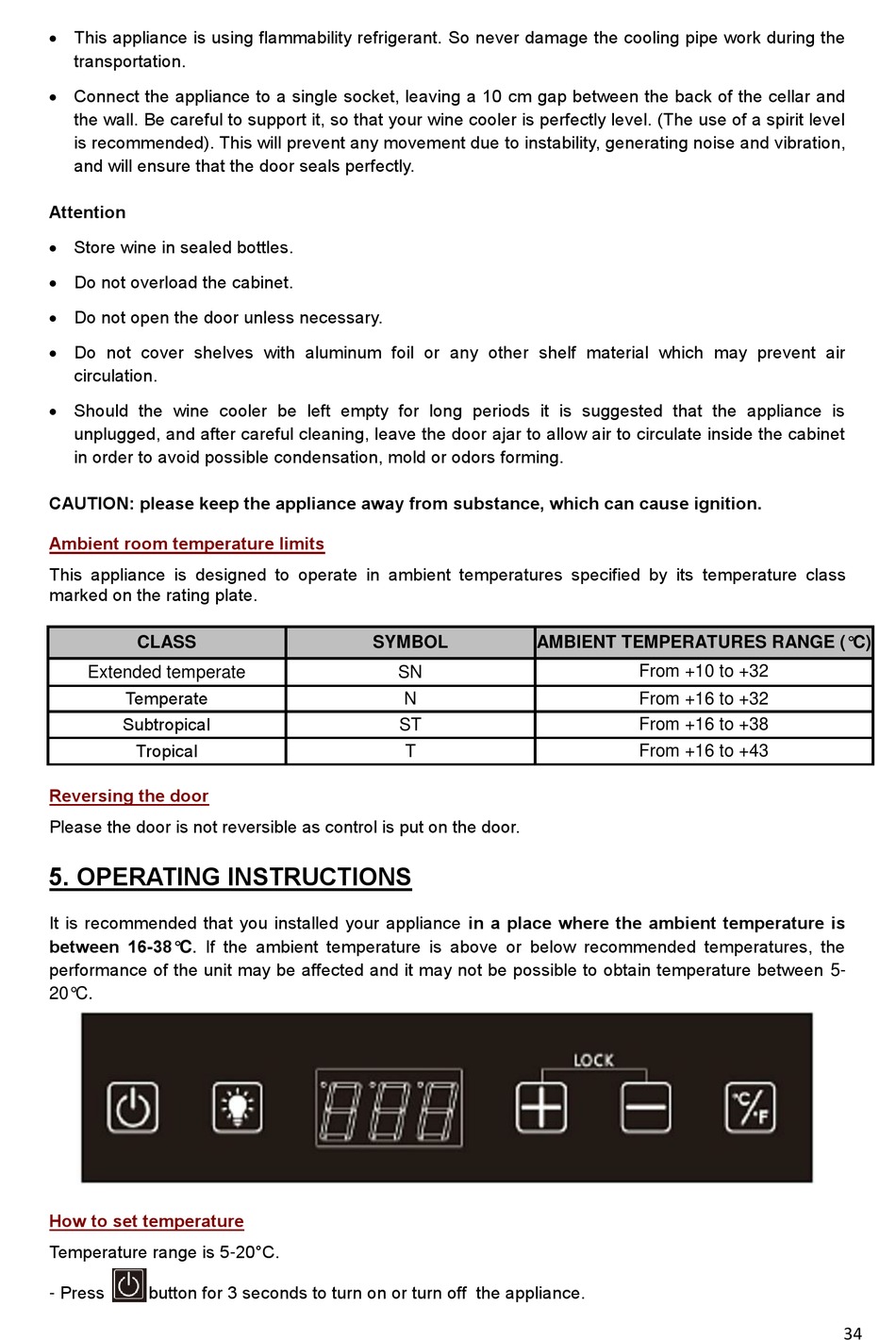

Climadiff CLS34 Gebrauchsanweisung Seite 34

 This appliance is using flammability refrigerant. So never damage the cooling pipe work during the
transportation.
 Connect the appliance to a single socket, leaving a 10 cm gap between the back of the cellar and
the wall. Be careful to support it, so that your wine cooler is perfectly level. (The use of a spirit level
is recommended). This will prevent any movement due to instability, generating noise and vibration,
and will ensure that the door seals perfectly.
Attention
 Store wine in sealed bottles.
 Do not overload the cabinet.
 Do not open the door unless necessary.
 Do not cover shelves with aluminum foil or any other shelf material which may prevent air
circulation.
 Should the wine cooler be left empty for long periods it is suggested that the appliance is
unplugged, and after careful cleaning, leave the door ajar to allow air to circulate inside the cabinet
in order to avoid possible condensation, mold or odors forming.
CAUTION: please keep the appliance away from substance, which can cause ignition.
Ambient room temperature limits
This appliance is designed to operate in ambient temperatures specified by its temperature class
marked on the rating plate.
CLASS
Extended temperate
Temperate
Subtropical
Tropical
Reversing the door
Please the door is not reversible as control is put on the door.
5. OPERATING INSTRUCTIONS
It is recommended that you installed your appliance in a place where the ambient temperature is
between 16-38°C. If the ambient temperature is above or below recommended temperatures, the
performance of the unit may be affected and it may not be possible to obtain temperature between 5-
20°C.
How to set temperature
Temperature range is 5-20°C.
- Press button for 3 seconds to turn on or turn off the appliance.
SYMBOL AMBIENT TEMPERATURES RANGE (°C)
SN
N
ST
T
From +10 to +32
From +16 to +32
From +16 to +38
From +16 to +43
34
