Safety Instruction - Dometic Remote Water Pump Montage- Und Bedienungsanleitung

Remote Water Pump
A
NOTICE!
Failure to observe this instruction can cause material damage and
impair the function of the product.
I
NOTE
Supplementary information for operating the product.
2

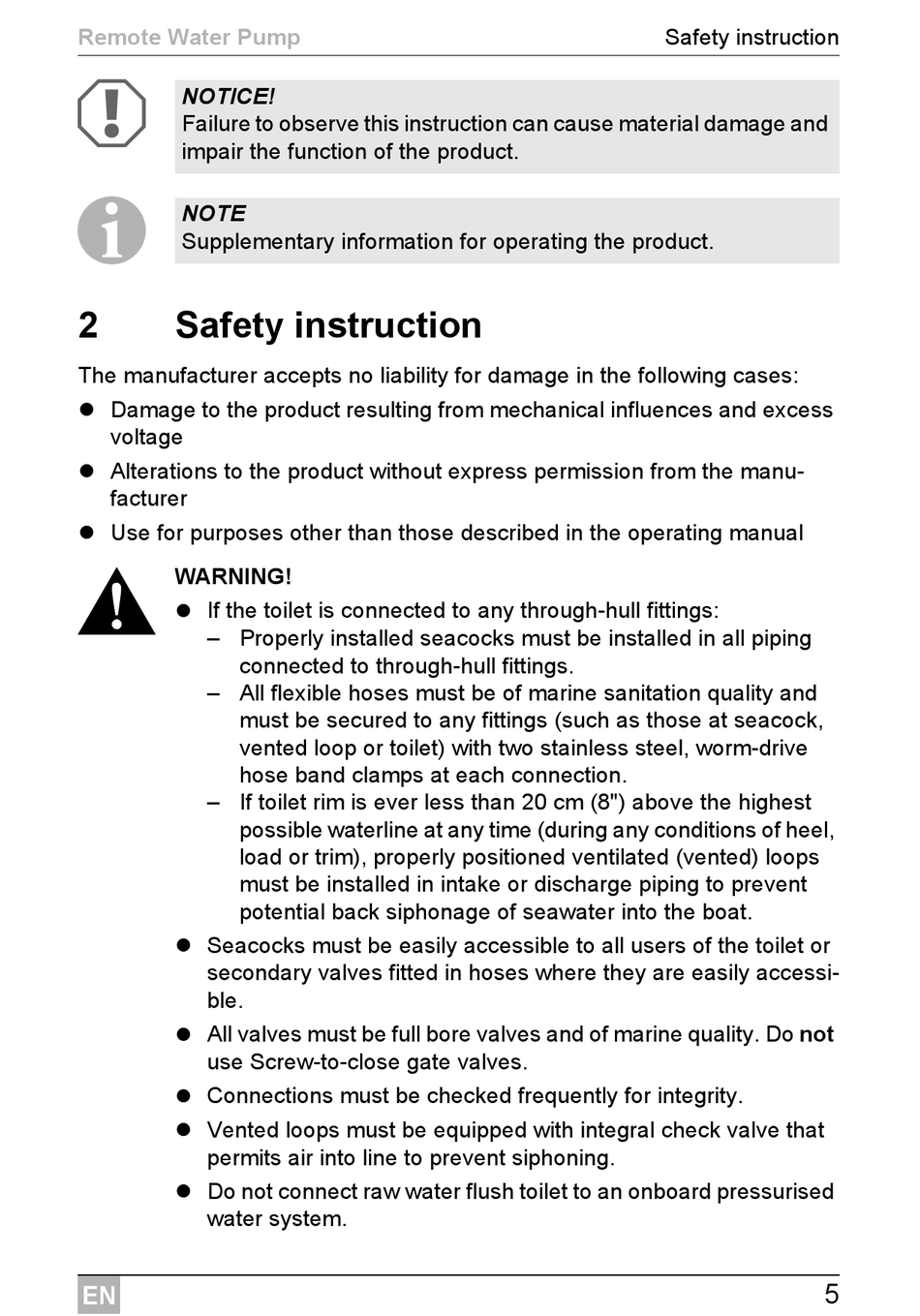

Safety instruction

The manufacturer accepts no liability for damage in the following cases:
 Damage to the product resulting from mechanical influences and excess
voltage
 Alterations to the product without express permission from the manu-
facturer
 Use for purposes other than those described in the operating manual
WARNING!
!
 If the toilet is connected to any through-hull fittings:
– Properly installed seacocks must be installed in all piping
connected to through-hull fittings.
– All flexible hoses must be of marine sanitation quality and
must be secured to any fittings (such as those at seacock,
vented loop or toilet) with two stainless steel, worm-drive
hose band clamps at each connection.
– If toilet rim is ever less than 20 cm (8") above the highest
possible waterline at any time (during any conditions of heel,
load or trim), properly positioned ventilated (vented) loops
must be installed in intake or discharge piping to prevent
potential back siphonage of seawater into the boat.
 Seacocks must be easily accessible to all users of the toilet or
secondary valves fitted in hoses where they are easily accessi-
ble.
 All valves must be full bore valves and of marine quality. Do not
use Screw-to-close gate valves.
 Connections must be checked frequently for integrity.
 Vented loops must be equipped with integral check valve that
permits air into line to prevent siphoning.
 Do not connect raw water flush toilet to an onboard pressurised
water system.
EN
Safety instruction
5
