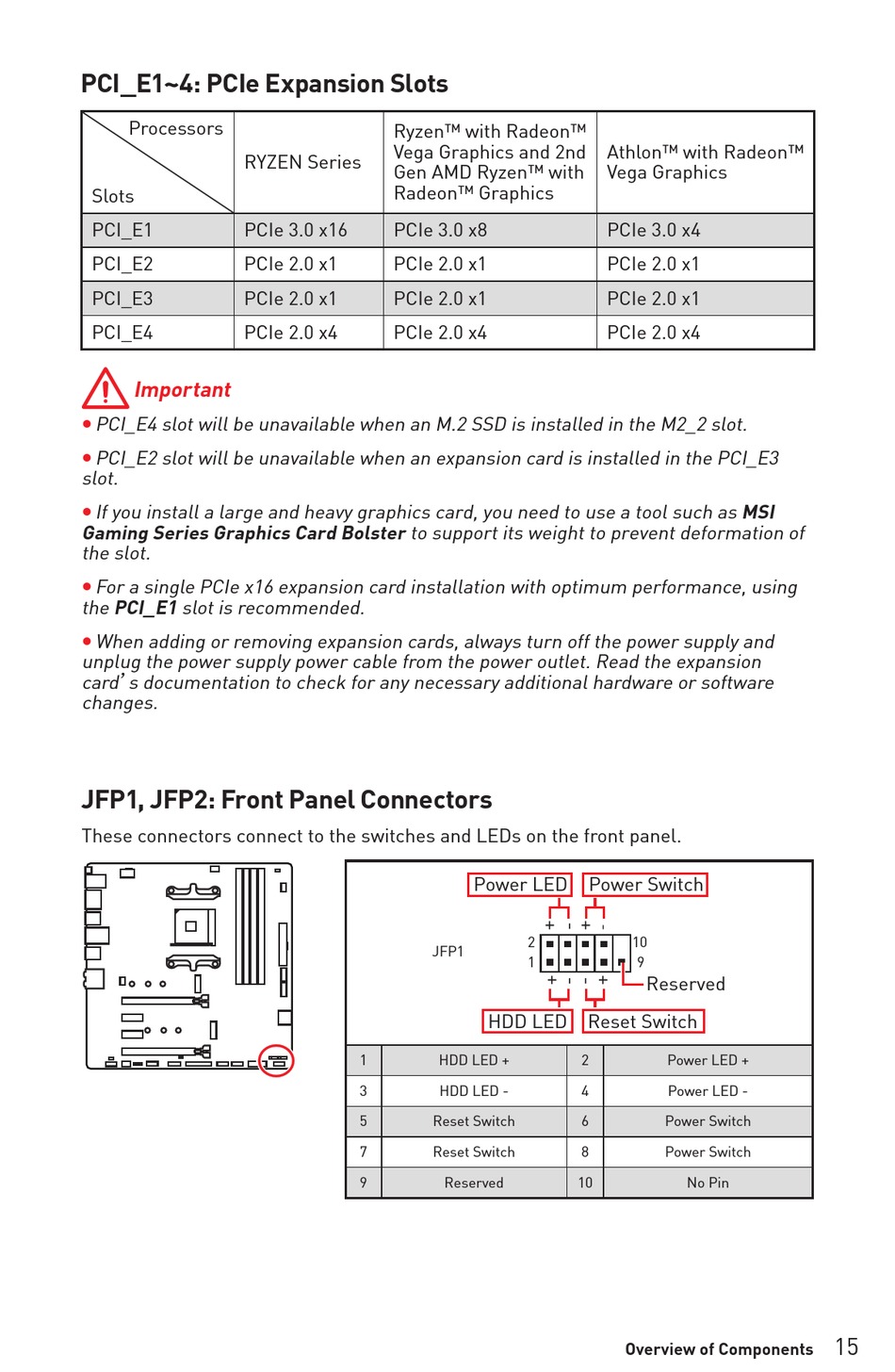

PCI_E1~4: PCIe Expansion Slots

Processors
RYZEN Series
Slots
PCI_E1 PCIe 3.0 x16
PCI_E2 PCIe 2.0 x1
PCI_E3 PCIe 2.0 x1
PCI_E4 PCIe 2.0 x4
Important
PCI_E4 slot will be unavailable when an M.2 SSD is installed in the M2_2 slot.
y
PCI_E2 slot will be unavailable when an expansion card is installed in the PCI_E3
y
slot.
If you install a large and heavy graphics card, you need to use a tool such as MSI
y
Gaming Series Graphics Card Bolster to support its weight to prevent deformation of
the slot.
For a single PCIe x16 expansion card installation with optimum performance, using
y
the PCI_E1 slot is recommended.
When adding or removing expansion cards, always turn off the power supply and
y
unplug the power supply power cable from the power outlet. Read the expansion
card' s documentation to check for any necessary additional hardware or software
changes.

JFP1, JFP2: Front Panel Connectors

These connectors connect to the switches and LEDs on the front panel.
Ryzen™ with Radeon™
Vega Graphics and 2nd
Gen AMD Ryzen™ with
Radeon™ Graphics
PCIe 3.0 x8
PCIe 2.0 x1
PCIe 2.0 x1
PCIe 2.0 x4
Power LED
2
JFP1
1
HDD LED
1 HDD LED +
3 HDD LED -
5 Reset Switch
7 Reset Switch
9 Reserved
Athlon™ with Radeon™
Vega Graphics
PCIe 3.0 x4
PCIe 2.0 x1
PCIe 2.0 x1
PCIe 2.0 x4
Power Switch
10
9
Reserved
Reset Switch
2 Power LED +
4 Power LED -
6 Power Switch
8 Power Switch
10 No Pin
Overview of Components
15
