1.1.12 Encoder Parameters page

In the Encoder Settings menu, it is possible to
configure the video flows of the device (3 flows).
All the video flows can be coded with the following
characteristics: H264, MPEG4, MJPEG.
For all flows, the following options can be set:
Framerate, (fps), Bitrate limit (kbit/s), Quality, I-Frame
H264 Interval, Coding profile.
It is possible to configure the address for
configuration of multicast video streaming.
Editing this setting will cause the device to restart.

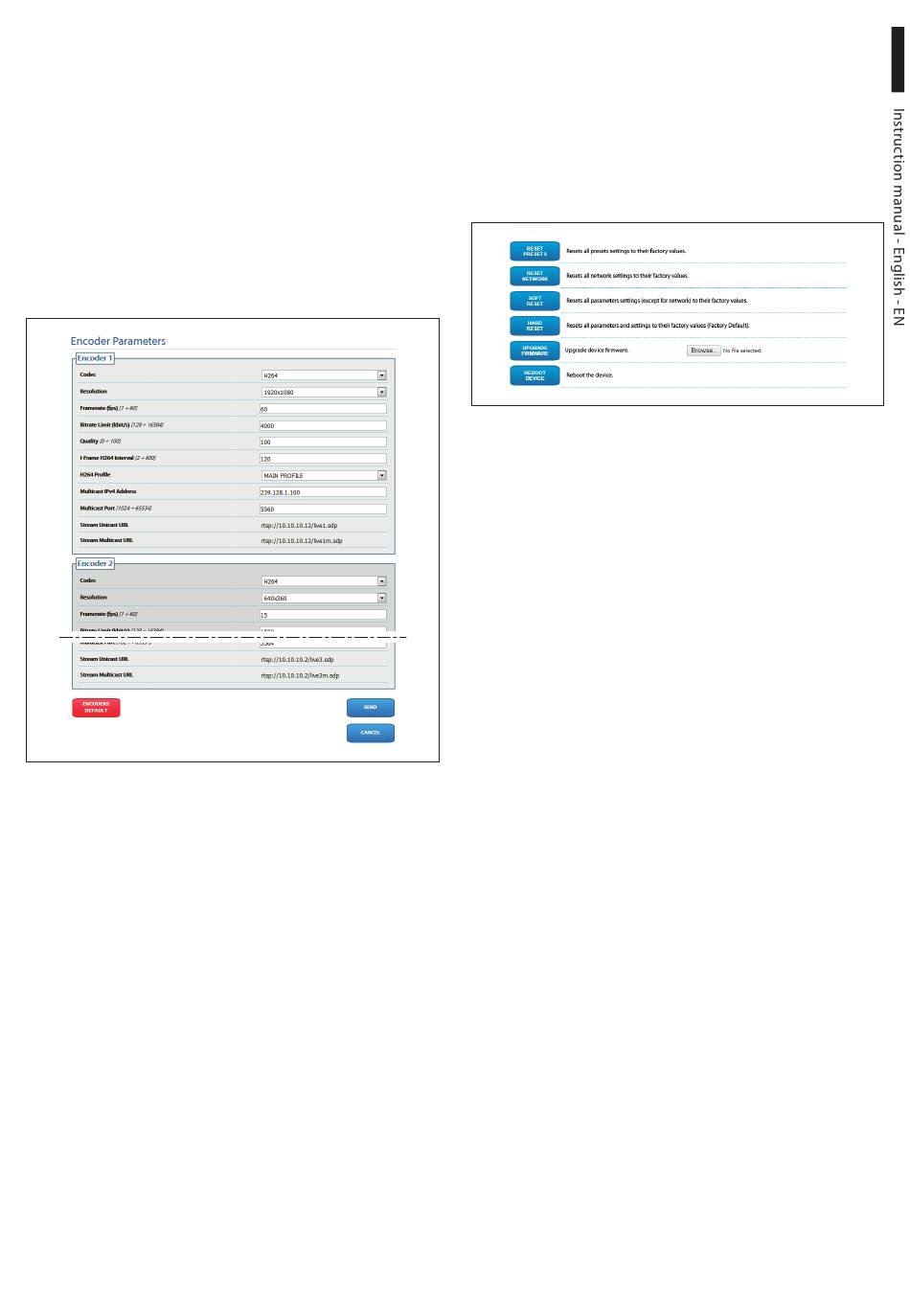

Fig. 22
MNVXMVXHDBCAM_1830_EN

1.1.13 Tools Page

From menu entry Tools it is possible to re-set the
predefined values for the entire configuration of
device or only for a number of specific sections.
This section:
• Update the firmware of the device.
• Restart the device.
Fig. 23
9
