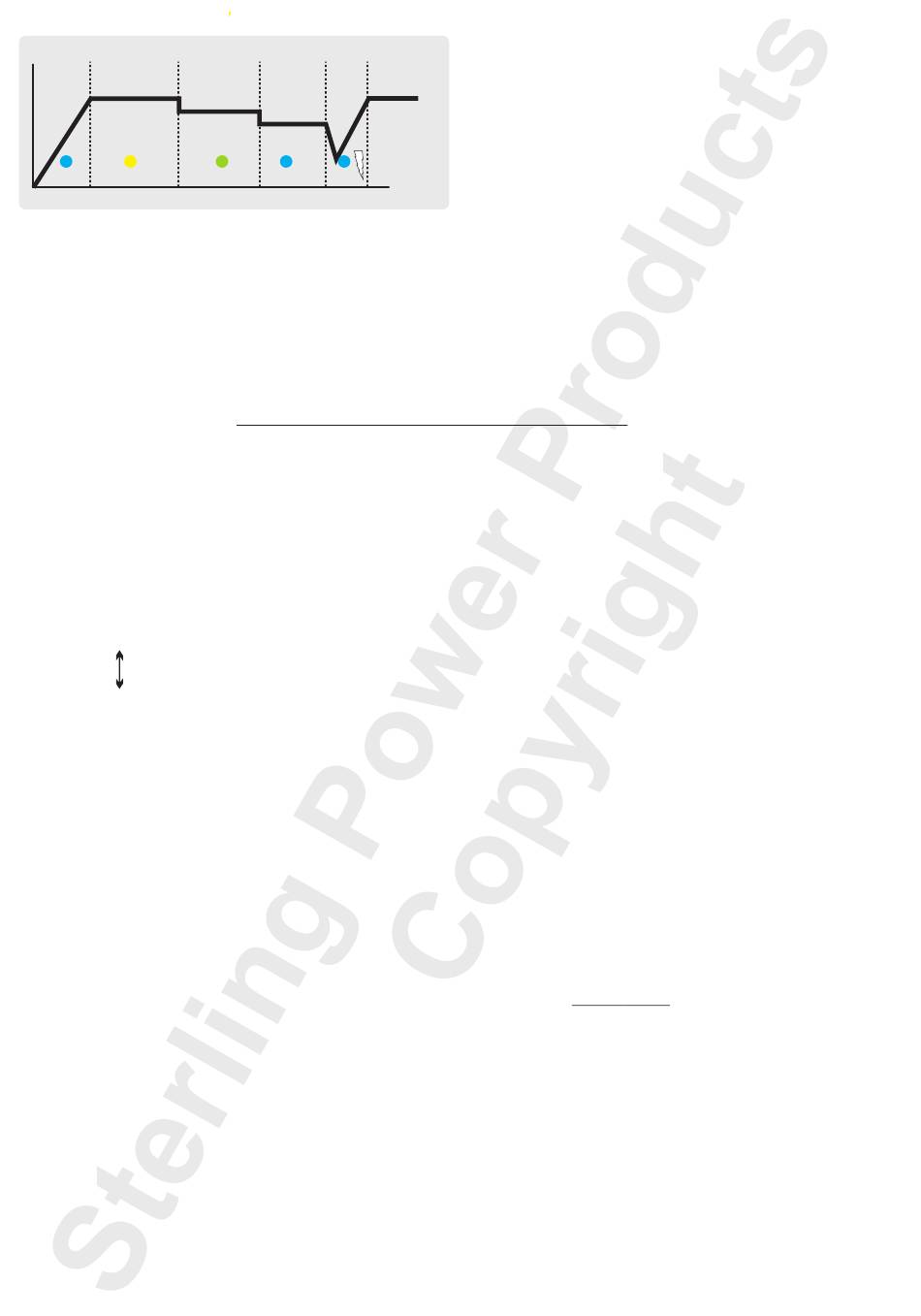

Charging profile Information displayed on top 4 LEDs on main unit
Fast charge
High absorption
constant current
charge rate constant
charge rate constant
mode
voltage mode
v
Stage 1
Stage 2
o
l
t
s
Time
(Depending on battery size, type, state of charge and charger battery ratio - Digitally processed)
Opportunity to adjust minimum absorption time
factor
Red High Temp LED
Absorption LED
will flash and
(section 2 and 4 on graph). This time, adjust the time
by using the Select and Setup buttons to go up and
down the right LED column
960) to select the correct time. Once content, wait 30
seconds, or press both buttons to confirm. The unit
shall then proceed to maximum absorption time factor
(next below).
Adjustment of operational voltages.
The 4 main control voltages below are inextricably linked.
The voltages can only be adjusted as a block (not
individually). For example, if you wish to reduce the
voltage
by 0.2V then all other voltages in the block shall
reduce by 0.2V.
Charging voltage
Cutoff voltage
regen braking timer
Lower voltage trip
Volt. trip w/ ign (Mode 3)
Charging voltage (default 13.2V) (always 0.2V above
Cutoff
voltage): At this voltage the charger starts
charging. After 5 seconds above 13.2V the regen braking
timer is set. If the input voltage drops to 11.9V - 13.0V this
timer begins. Timer reset when input voltage is 13.2V+.
Cutoff voltage (default 13.0V):
relevant after the charging voltage has been met and the
charger is charging. When the input voltage drops below
this cutoff voltage the charger stops charging and shall
eventually go to sleep. If the input voltage remains
between 13.0V-13.2V the charger shall continue charging.
The
Cutoff voltage is the parameter that the user
changes.
As noted, by adjusting the
change the other three voltages mentioned by the same
amount.
Lower voltage trip (default 11.9V) (always 1.1V below
Cutoff
voltage): When the input voltage drops below the
Lower voltage trip the charger turns off. The 11.9V
threshold is only relevant if the
activated. If not, then the low voltage trip is 13.0V. If in
mode 3, the low voltage trip is 10.0V.
Low voltage trip (default 10.0V) (Mode 3) (always 3.0V
below
Cutoff voltage)
does the Pro Batt Ultra work down as low at this voltage.
Float / Power pack
If voltage drops
Lower conditioning
due to heavy
mode, constant
load in excess
voltage, full current
off unit current
voltage mode
ability to support
accessibility
Stage 3
Stage 4
Flash
will come on constant.
blue Float
(refer to the brown scale 0-
Input voltage
13.2V
All 4 voltages are always
13.0V
linked. This block can be
adjusted by changing the
Cutoff voltage
down. This subsequently
12.0V
changes the other three
voltages by the same value.
10.0V
This voltage is only
Cutoff voltage
regen braking timer
: Only when in operation mode 3
Backlash voltage. If
charger power exceeded
and battery discharge
unit resets to stage 1
Stage 5
Opportunity to adjust maximum absorption
time factor
Red High Temp LED
Conditioning LED
(section 3 and 4 on graph). This time, adjust the time
by using the Select and Setup buttons to go up and
Yellow
will flash
down the right LED column
0-960) to select the correct time. Once content, wait
30 seconds, or press both buttons to confirm.
A
green LED
for around 8 seconds to confirm the setup is
completed. The unit will then restart.
During this particular setup procedure we have made
the voltage setup LED bar more sensitive so that the
adjustment can be made in 0.1V increments. For
example, for 13.1V the 13V LED is on and the 13.4V
Cutoff
LED is flashing. The same idea for 12.9V. The 13V
LED is on and the 12.6V LED is flashing.
that you are adjusting the
simultaneous adjusting the
Lower voltage trip and the Low voltage trip.
13.4V
13.3V
value up and
13.2V
13.1V
13.0V
12.1V
12.0V
To enter the menu press (SETUP/ENTER) &
SELECT for more than 20 seconds.
BOOST
FLOAT
Setting Menu. At the same time the actual
voltage
according to the description above. To decrease
voltage press SETUP/ENTER and to increase
voltage press SELECT button.
The
between 12.0V-14.6V.
Charging voltage is always 0.2V higher.
you
Lower voltage trip is always 1.1V lower.
Low voltage trip (Mode 3) is always 3.0V lower.
If you do not touch any buttons for 30 seconds the
default voltage of 13.0V shall be restored and saved.
To confirm your custom voltage you must press
is
both buttons (SETUP/ENTER) and (SELECT)
simultanously for 2 seconds.
The chosen voltage will be saved and the unit will
restart. If you feel unsure do not touch any buttons.
The default value will be restored automatically.
will come on constant.
will flash and
blue Float
(refer to the brown scale
from the middle of each row will flash
13.4V LED ON
13.4V LED ON + 13.0V LED FLASHING
13.4V LED ON + 13.0V LED ON
13.4V LED FLASHING + 13.0V LED ON
13.0V LED ON
12.2V LED FLASHING
12.2V LED FAST FLASHING
,
ABSORPTION
,
LEDs will flash to indicate
will be displayed in the left LED voltage bar
Cutoff voltage
range you can choose is
12
Green
will flash
Remember
Cutoff voltage
whilst
Charging
voltage,
CONDITIONING
and
Cutoff voltage
