2.9 M.2_SSD (NGFF) Module Installation Guide (M2_3)
The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and
versatile card edge connector that aims to replace mPCIe and mSATA. The Ultra M.2
Socket (M2_3) support SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3
x4 (32 Gb/s).

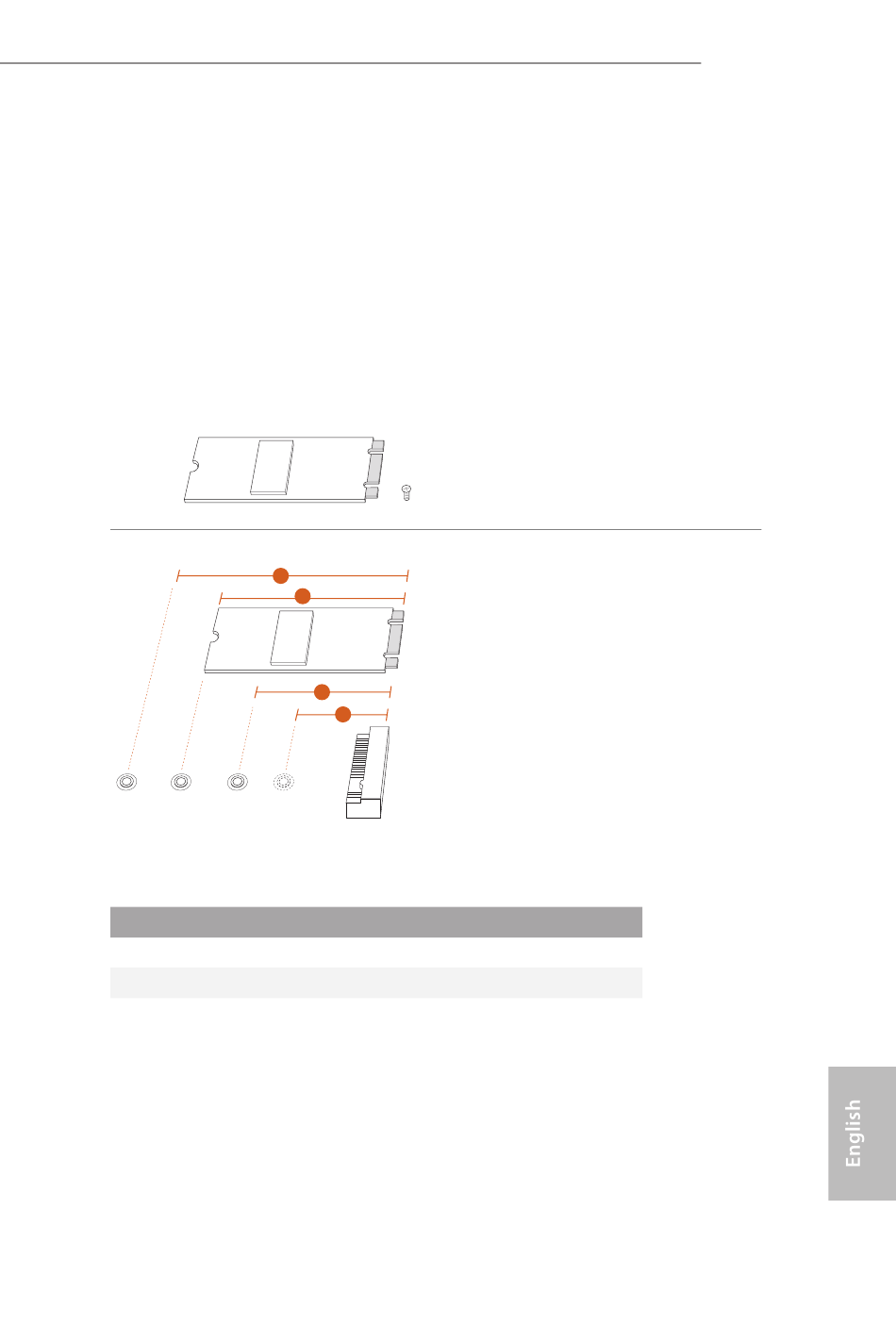

Installing the M.2_SSD (NGFF) Module
4
D C B
No.
Nut Location
PCB Length
Module Type Type2230
3
2
1
A
1 2
A B
3cm 4.2cm
Type 2242
Step 1
Prepare a M.2_SSD (NGFF) module
and the screw.
Step 2
Depending on the PCB type and
length of your M.2_SSD (NGFF)
module, find the corresponding nut
location to be used.
3 4
C D
6cm 8cm
Type2260 Type 2280
