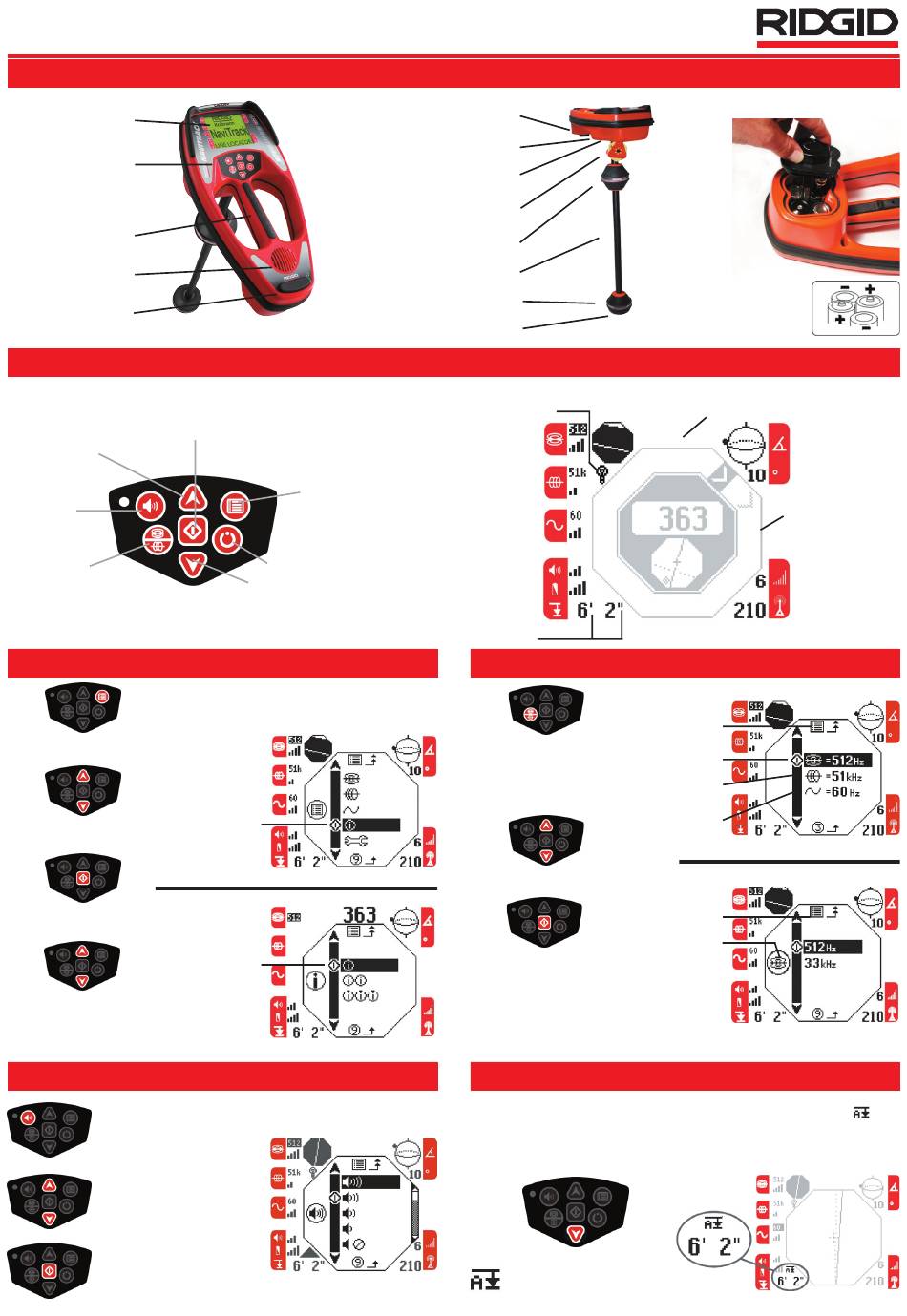

Quick Start Guide - NaviTrack
Identification & Setup
Display Screen
Keypad
Handle
Speaker
Headphone Jack
(under cover)
Keypad & Screen Reference
Select Key
Up Key
View Toggle/Menu
Menu Navigation/
Selection
Signal Capture/1000
set (3 sec. press)
Sound Key
Mode key
Note: Cycle power ON/OFF to reset 1000 level and
Zero Set to default levels.
Setting Information Level
The NaviTrack has three levels of information to choose
from. Entering this menu will allow the user to choose
the amount of information displayed on the screen
Press Menu Key once to open
the Main Menu
Use Up or Down keys to Selected Menu Item
choose menu item.
Use Select Key to select
Info Level Menu
highlighted item.
Selected Menu Item
Use Up or Down keys to choose desired information
level. Then use Select Key to select highlighted item;
NaviTrack returns to the Active View.
Setting Sound level
Open Sound Menu
Choose menu item
Select highlighted item
TM
Sonde & Line Locator
Note: Icons used on the label
are also used on the LCD
display, and have the same
meanings.
Menu Key
Power ON/OFF Key
Down Key
Menu Navigation/Depth
average & Hold/Zero Set
(3 sec. press)
Main Menu
Sound Level Menu
Battery Compartment
Serial Number Label
Icon List Label
Markers
Upper Antenna
Antenna Mast
Lower Antenna
Distance Measure Point
Backlight Icon
Sonde Frequency
Sonde Level
Active Trace Frequency
Acitve Trace Level
Passive (AC) Trace Frequency
Passive (AC) Trace Level
Audio Level
Battery Level
Distance (Depth)
Distance Units
Selecting Operating Mode & Frequency
Press Mode Key once to open
the Mode Menu. Press Mode
Key again to open the
highlighted mode's Frequency
Menu.
Use Up or Down keys to choose
menu item
Use Select Key to select
highlighted item; NaviTrack
returns to the Active View.
Note: If available frequencies do not match your
transmitting equipment, a new set of frequencies
may be loaded.
Depth Average & Hold
Averages the depth reading over a four (4) second interval and holds the reading on the
display. Press once to take reading, press again to return to real time depth display.
shown when depth held. Depth readings are available in feet and inches (xx' xx"), decimal feet
(xx.xx"), and meters (xx.xx m).
Icon shown when depth
averaged over the pole
Install four (4) C-cell batteries
Signal Capture - When
activated (Search View only)
Overhead Indicator
Mode Menu
Selected Mode and
Active Frequency
Sonde Mode
Line Trace Mode
Passive (AC)
Trace Mode
Frequency Menu
Selected Frequency
Operating Mode
®
2D Horizontal Field
Angle Indicator
Numeric Horizontal
Angle Indicator
Active View (Search
view shown in gray for
illustration purposes)
Auto gain Step
Current Strength
Icon
