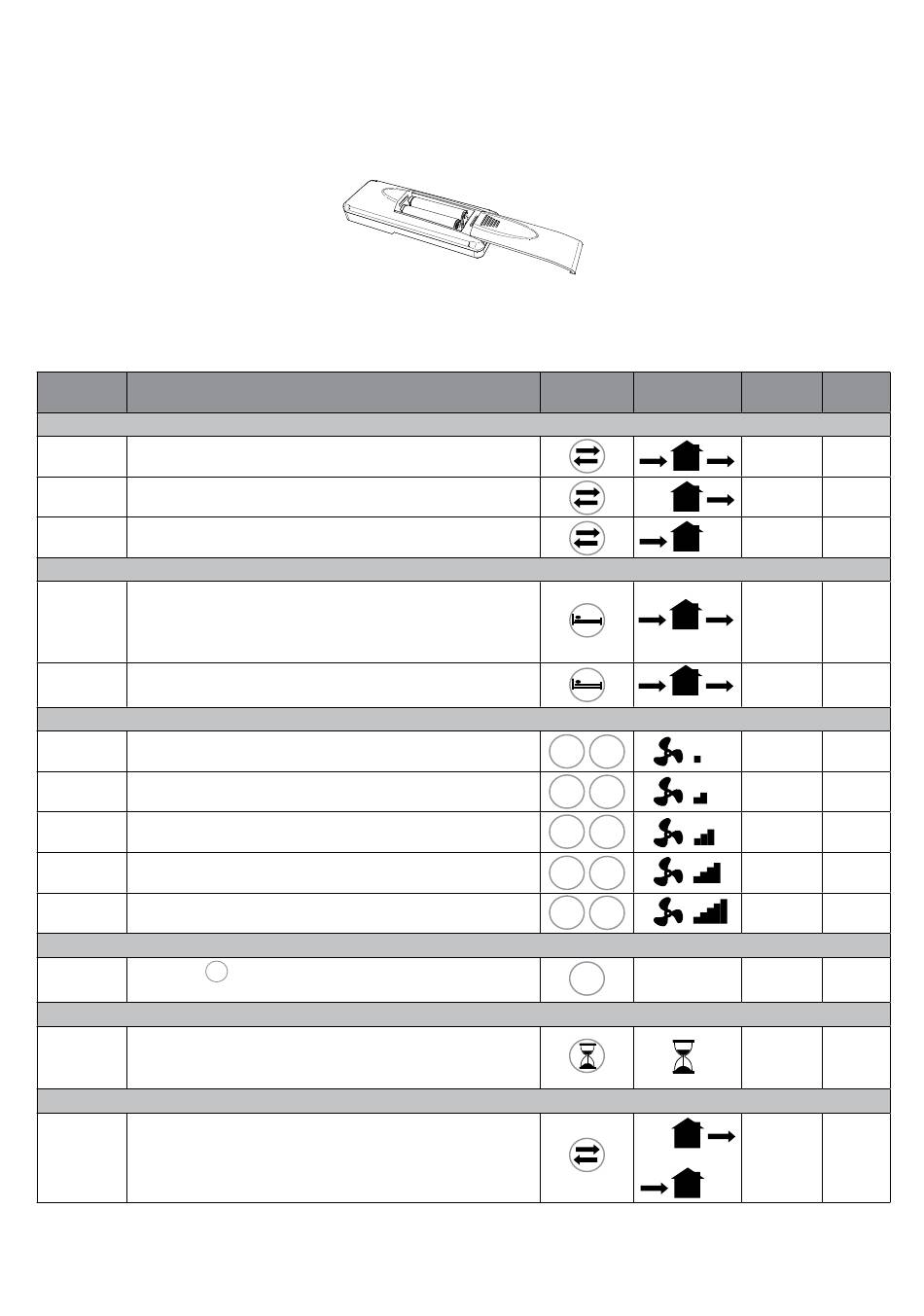

The unit is supplied with an infrared remote controller (K) as standard, as well as its support base (L) which can be wall
mounted. A magnet keeps the controller attached to the base.
The controller is equipped with an LCD display to visualise the setting to be transferred to the unit; anytime a touch button is
pressed, the setting shown on the LCD display is transferred to the unit. The IR receiver (J fig. 2) is placed on the left side of
cambio batterie telecomando
the ventilation unit: it is recommended to point the controller towards the receiver when any setting needs to be transfered.
One remote controller can control more units.
To activate the remote controller it is necessary to insert two AAA type batteries (not supplied).
VENTILATION UNIT
When switched on the unit emits a long acoustic signal.
Through the IR controller the following functionalities can be activated/deactivated. When one setting is transferred to the unit,
a short acoustic signal is emitted and a green led flashes.
FUNCTIONALITY
Airflow direction
The unit runs in extract/intake at the selected speed: the inversion time is
Alternate
automatically defined thanks to the integrel temperature sensor.
Extract
The unit runs in extract only at the selected speed.
Intake
The unit runs in intake only at the selected speed.
Mode (active only if the airflow direction is set on alternate)
Optimisation of the acoustic and thermal comfort. The inversion time
varies automatically from 40÷120 seconds, thanks to the integrel
Comfort
temperature sensor. The first time cycle is of 120 seconds, then it varies
automatically according to the detected temperature conditions.
Optimisation of the thermal efficiency. The inversion time is fixed at about
Efficiency
70 seconds.
Continuous running speed
Speed 1: 20m
Speed 2: 30m
Speed 3: 40m
Speed 4: 50m
Speed 5: 60m
Off position
Pressing the
long acoustic signal. To re-activate the unit, press any button.
BOOST speed
The unit runs at speed 5 (maximum) for 15 minutes, in extract only;
then it returns to the previously selected mode/speed. The BOOST speed
cannot be activated if the controller is OFF.
Free cooling
The unit runs in "extract only" or "intake only" to avoid heat recovery
when not needed.
8
DESCRIPTION
/h
3
/h
3
/h
3
/h
3
/h
3
button for 3 seconds, the units switches off, emitting a
CONTROLLER
ICON
BUTTON
COMFORT
EFFICIENCY
+
+
+
+
+
OFF
oppure
ACOUSTIC
LED
SIGNAL
green
short
green
short
green
short
green
short
green
short
green
short
green
short
green
short
green
short
green
short
red
long
fixed blue
short
green
short
