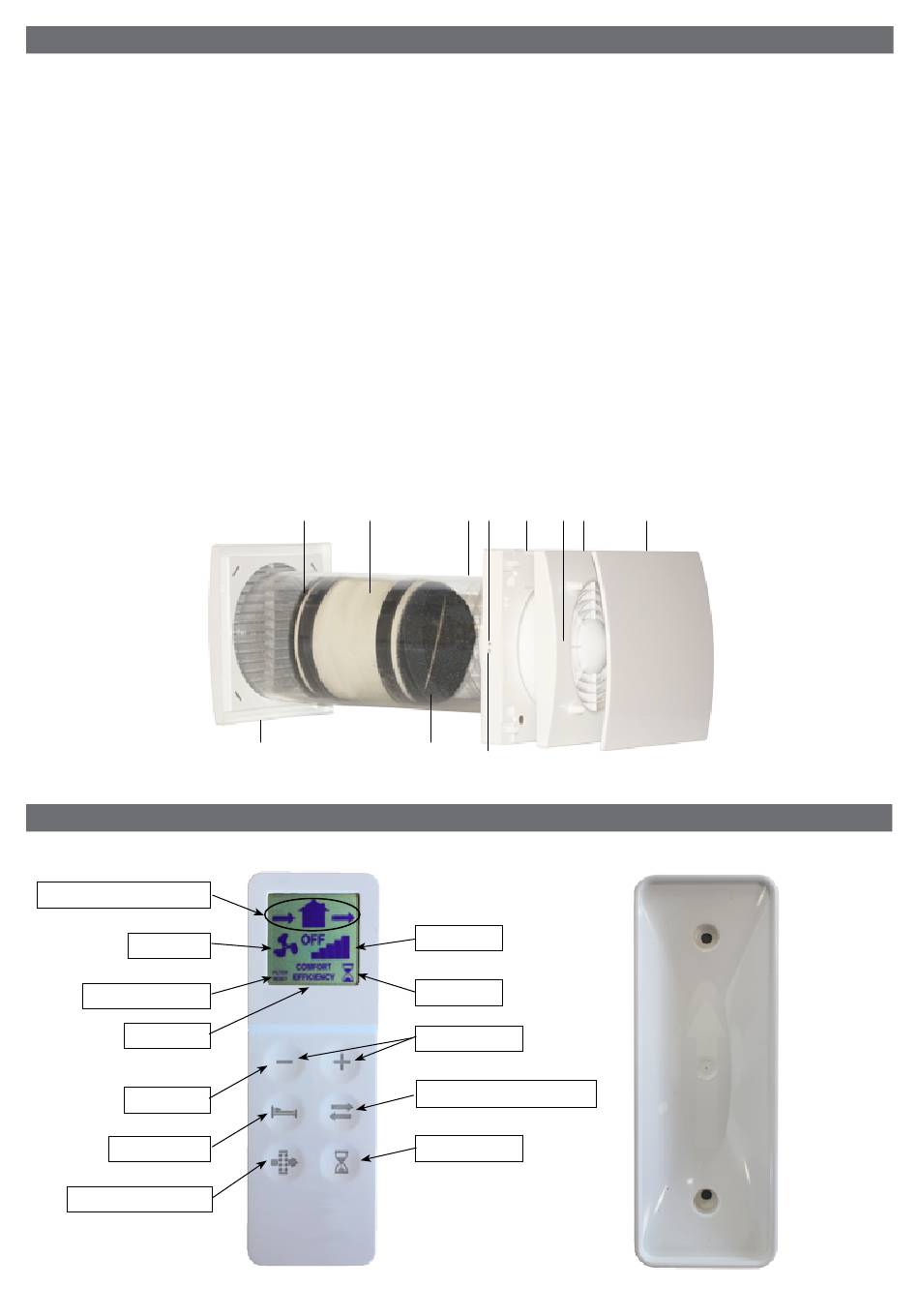

TECHNICAL SPECIFICATIONS

• D esign front cover (A) removable for cleaning without the use of tools.
• I nner ventilation unit (B) and wall support base (D) made of high quality, impact and UV-resistant ABS, colour RAL 9010.
• I ntegrated multi-colour led (C ) to obtain a visual feedback of the unit status.
• S mart humidity control.
• I ntegral temperature sensor for the automatic management of the inversion time (comfort mode)
• A utomatic anti-frost protection to prevent frost building up on the heat exchanger.
• W all support base (D) provided with a magnet "coupling/uncoupling" system which allows the ventilation unit to be removed
from its base during maintenance.
• B ack-up touch button (E) at the side of the ventilation unit
• U nique design winglet-type impeller, providing enhanced aerodynamic properties, low noise and increased efficiency.
• H igh efficient reversible EC motor with integral thermal protection, mounted on sealed for life high quality ball bearings.
Designed for continuous reversible running.
• T elescopic pipe (F) adaptable to the wall thickness.
• A ntimortar cap designed to be used also as template during the installation of the wall support base
• R egenerative heat exchanger with ceramic core (G) with high thermal efficiency, equipped with washable anti-dust filters (H).
• E xternal grille (I) made of high quality, impact and UV-resistant ABS, colour RAL 9010, with anti-insect net and water drip
guard.
• I nfra-red remote controller with touch technology, LCD display and wall base supplied as standard. Made from ABS, RAL
9010.
• T he unit is double insulated: no earth connection is required.
• N o need of condensation drainage system
• I PX4 degree of protection.
• P ower supply 220V to 240V~ 50Hz.

OPERATION

REMOTE CONTROLLER
AIR FLOW DIRECTION ICON
SPEED ICON
FILTER RESET ICON
MODE ICON
OFF BUTTON
MODE BUTTON
FILTER RESET BUTTON
H
G
I
Fig.2
K
F
E
D
C B
H
J
SPEED ICON
BOOST ICON
SPEED BUTTONS
AIRFLOW DIRECTION BUTTON
BOOST BUTTON
A
L
7
