DigiTal ThermomeTer
FCC DECLARATION OF CONFORMITY
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Product:
Digital Thermometer
Weber Part Number: 6438
Responsible Party: Weber-Stephen Products Company
200 East Daniels Road
Palatine, IL 60067-6266 USA
Phone: 1-800-446-1071 (U.S.A. Only)
THE FCC WANTS YOU TO KNOW
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which canbe
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult an experienced radio / TV technician for help.
• If you cannot eliminate the interference, the FCC requires that you stop using your thermometer.
Changes or modifications not expressly approved by Weber-Stephen Products Company may
cause interference and void the user's authority to operate the equipment.
EC – DECLARATION OF CONFORMITY
This product contains the approved transmitter and complies with the essential requirements
of Article 3 of the R & TTE 1999/5/EC Directives, if used for its intended purpose and that the
following standard(s) has/have been applied:
Efficient use of radio frequency spectrum:
(Article 3.2 of the R&TTE Directive)
applied standard(s)
Electromagnetic compatibility:
(Article 3.1b of the R&TTE Directive)
applied standard(s)
Safety of information technology equipment:
(Article 3.1.a of the R&TTE directive)
applied standard(s)
Additional information:
The product therefore conforms to the Low Voltage Directive 73/23/EC, the EMC Directive
89/336/EC and R&TTE Directive 1999/5/EC (appendix II) and carries the respective CE
marking.
RTTE Compliant Countries
All EU countries, Switzerland, and Norway
This symbol indicates that the product cannot be
disposed of in the trash. For instructions regarding
proper disposal of this product in Europe, please visit
www.weber.com , and contact the importer listed
®
for your country. If you do not have internet access,
contact your dealer for the importer's name, address
and telephone number.
SETUP
Remove the battery covers from both the ThermoSensor and Monitor, then remove the
plastic tabs from the battery compartments. Continue to battery installation steps.
2
178715_0710.indd 2
www.weber.com
EN 300 220-3:2000
EN 301 489-3:2000
EN 60950:2000

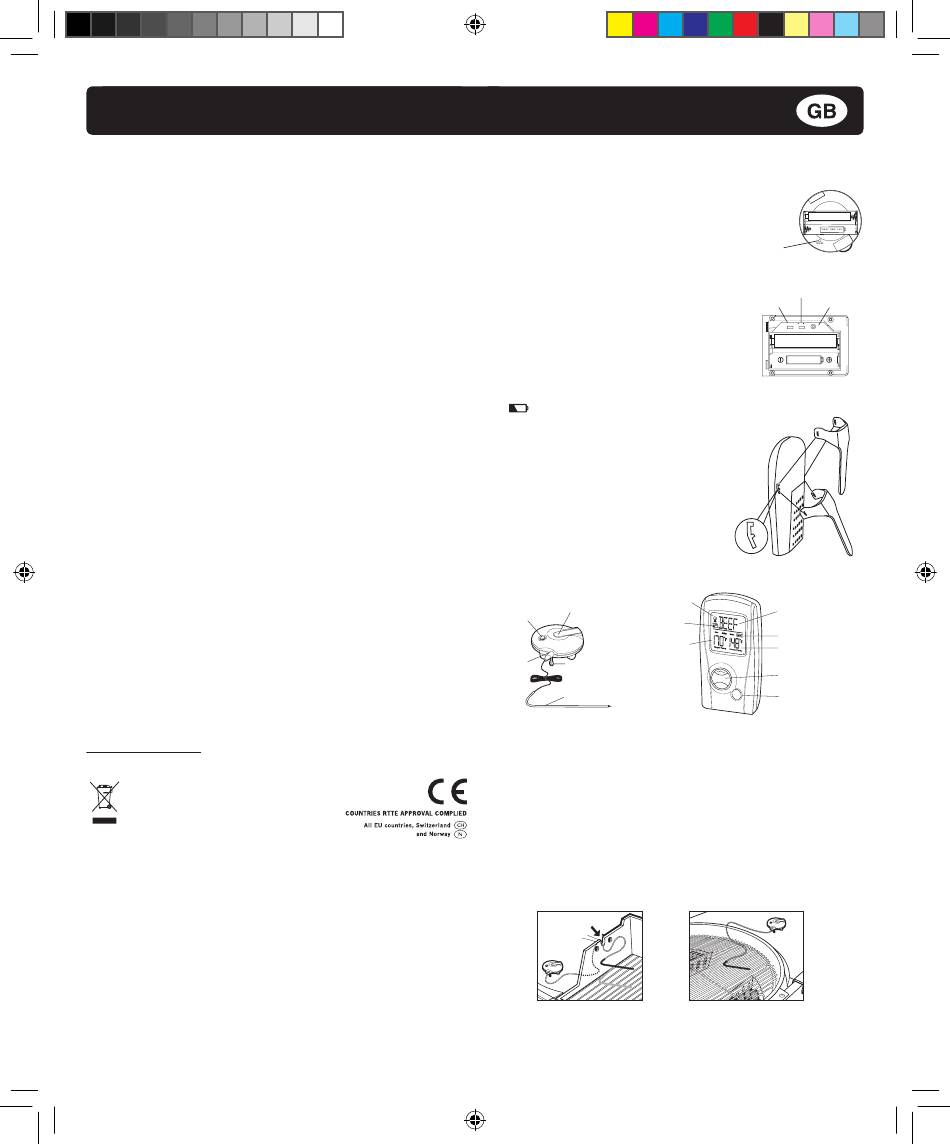

INSTALLING BATTERIES
The thermometer requires two AA batteries and two AAA batteries
for power. Follow these steps to install the batteries.
Note: Reset both the monitor and the ThermoSensor within
60 seconds to synchronize them to transmit a signal. Only
reset after installing new batteries.
In The Monitor
1. Slide down and lift off the belt clip on the back of the monitor.
Slide then lift up and remove the battery compartment cover.
2. Place two AA batteries in the compartment as indicated by the
polarity symbols (+ and -).
3. Press RESET in the battery compartment using a pointed
object such as a straightened paper clip.
4. Replace the cover and the belt clip.
In the ThermoSensor
1. Slide off the battery compartment cover.
2. Place two AAA batteries in the compartment as indicated
by the polarity symbols (+ and -) and press RESET beside
the battery compartment using a pointed object such as a
straightened paper clip.
3. Replace the battery compartment cover.
When appears on the monitor, replace the batteries.
ADJUSTING FAHRENHEIT / CELSIUS
To select Fahrenheit or Celsius, slide °C/°F, located beside
the monitor's battery compartment, to °C or °F.
ADJUSTING THE VOLUME
To adjust the monitor's volume, slide HI/LO, located in the
ThermoSensor's battery compartment, to HI or LO.
LED INDICATOR
The red LED in the centre of the ThermoSensor flashes to
indicate that it is on and transmitting.
USING THE BELT CLIP
You can wear the belt clip on your belt or use it as a stand.
To use the belt clip as a stand, remove the belt clip from the
back of the monitor. Insert the left or right side of the clip into
the lower part of the slot then snap the other side of the clip
into the other lower slot.
Indicator Monitor /
ThermoSensor
Communication
ThermoSensor LED
Power
Low Battery
Indicator
Probe
Probe Socket
Socket
Cover
Probe
CONNECTING THE PROBE
Locate the cover to the probe socket on the top right side of the ThermoSensor and carefully
pull it out. Plug the meat probe into the socket.

OPERATION

Note: Only reset after installing new batteries.
1. P ress and hold power until the ThermoSensor's red LED flashes. Then press and hold power
until the monitor's green LCD lights and all display segments appear.
2. Repeatedly press "Select" until the desired meat appears. You can select BEEF, LAMB,
VEAL, HMBGR (Hamburger or rissoles), PORK, TURKY (Turkey), CHICK (Chicken), or
FISH. Then repeatedly press "Cook" to select doneness level.
Note: The doneness level selections, RARE, MED RARE, MEDIUM, and WELL DONE, are
only available for beef, lamb and veal. For chicken, pork, turkey, fish and hamburger the
monitor defaults to WELL DONE.
3. Place the ThermoSensor near the cooking area and insert the tip of the probe into the center
of the meat. To prevent the lid from crimping the probe wire, feed the wire out through the slot
on the side of the cookbox. Use the monitor's stand for easy viewing or use the belt clip. For
charcoal grilling, route the probe wire away from the direct heat of the charcoal briquettes.
(1)
Reset
ThermoSensor
˚C / ˚F
Reset
HI / LO
Hi /Lo C / F
reset
"AA" UM3 1.5V
Monitor Battery Compartment
Belt Clip Position
Stand
Position
Type of
Meat
Levels of
Doneness
Target
Temp Current
Temp
Select / Cook
co ok
pow er Power
(2)
