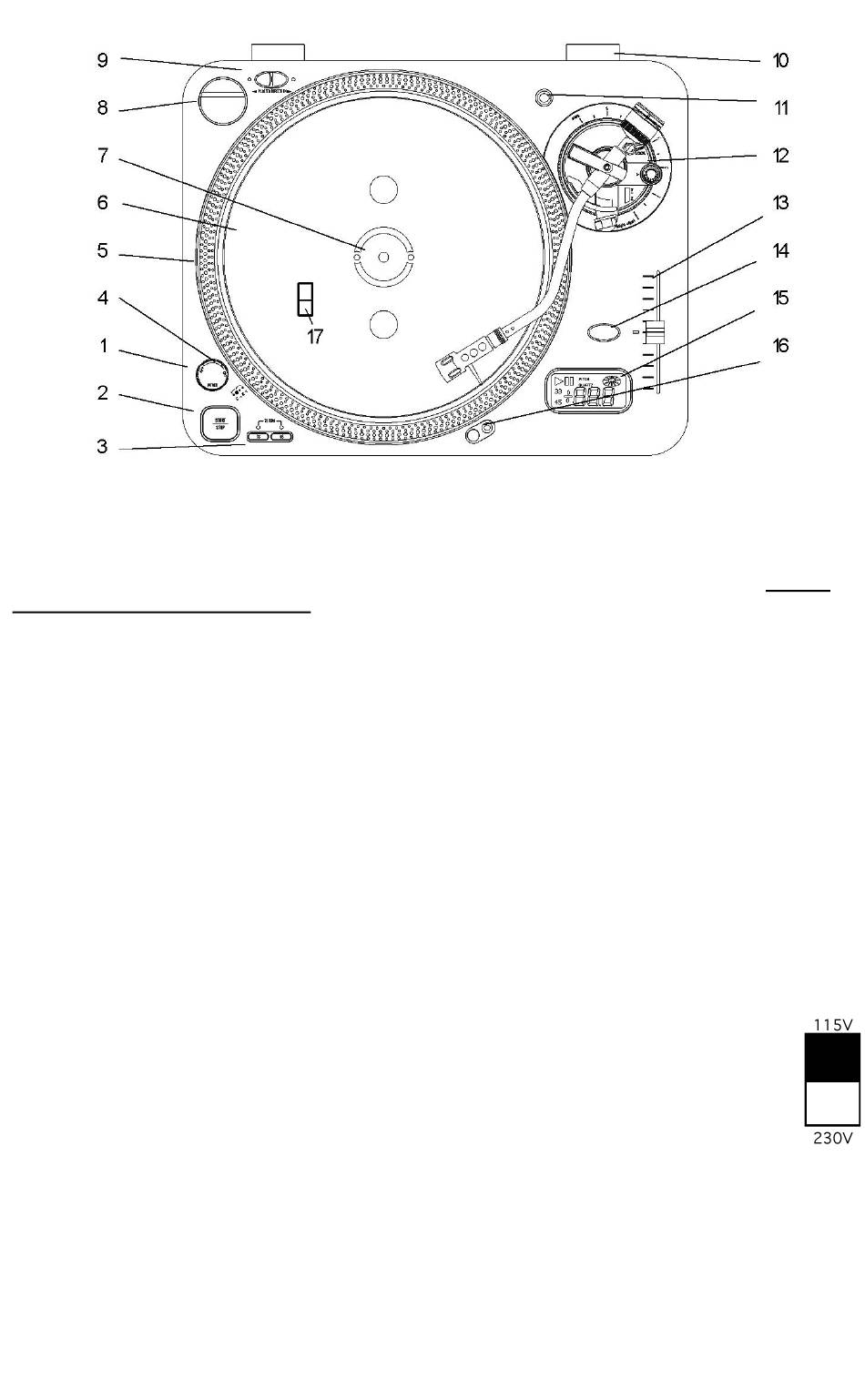

DIAGRAM AND PARTS DESCRIPTION
To fully appreciate the features of the ITT03X, please read this entire manual before
you begin operation. The ITT03X should be placed on a level sturdy surface. Keep in mind that
there are a few features you may never have seen before on a turntable of this type that you
will need to read about to use properly.
Start by removing all parts from the package and place on a level surface. Carefully
check all packing material for hidden parts. Use the contents guide for reference.
discard any packing materials!
Power Dial
1.
On - Rotate Right
Off - Rotate Left
START/STOP - Pressing once
2.
engages high torque motor; pressing
again engages brake.
Platter Revolution Speed Buttons
3.
33rpm - Press 33
45rpm - Press 45
78rpm - Press 33 and 45
Strobe Light - Pulses a beam of light
4.
at the Strobe Dots. The large dots
will seem not to move when pitch is
0%.
Strobe Dots - Four rows of dots that
5.
indicate various stages in pitch
adjust.
-3.3%
0%
+3.3%
+6%
Platter - Place this on the Center
6.
Spindle.
Center Spindle - Keeps platter and
7.
records centered. Place the supplied
slipmat on the Center Spindle now.
45 Adapter - Place on Center Spindle
8.
for playing 7" records with large
center holes.
Forward/Reverse Buttons -
9.
Determine the direction the platter
will spin.
Lid Hinge Holder - Place the bottom
10.
tabs of your lid hinges in here after
you finish assembly.
- outer row
- large dots
- next row
- inner row
Extra Stylus Holder - Place an extra
11.
headshell here.
Tone Arm Assembly - Explained in
12.
tonearm section
Pitch Adjust - Use this to change the
13.
speed of the platter when quartz lock
is inactive.
Quartz Lock
14.
On - will hold the revolution speed to
0%
Off - will allow use of the Pitch Adjust
HOLD DOWN- to alternate from 10%
to 20% Pitch
LCD Display - Explained in Display
15.
Section
Target Light - Press the button to the
16.
right and a light will pop up directed
at the stylus position.
Voltage Selector - With unit
17.
unplugged set the desired
voltage for your location
using a screw driver.
Do not
