2. Open the top cover.

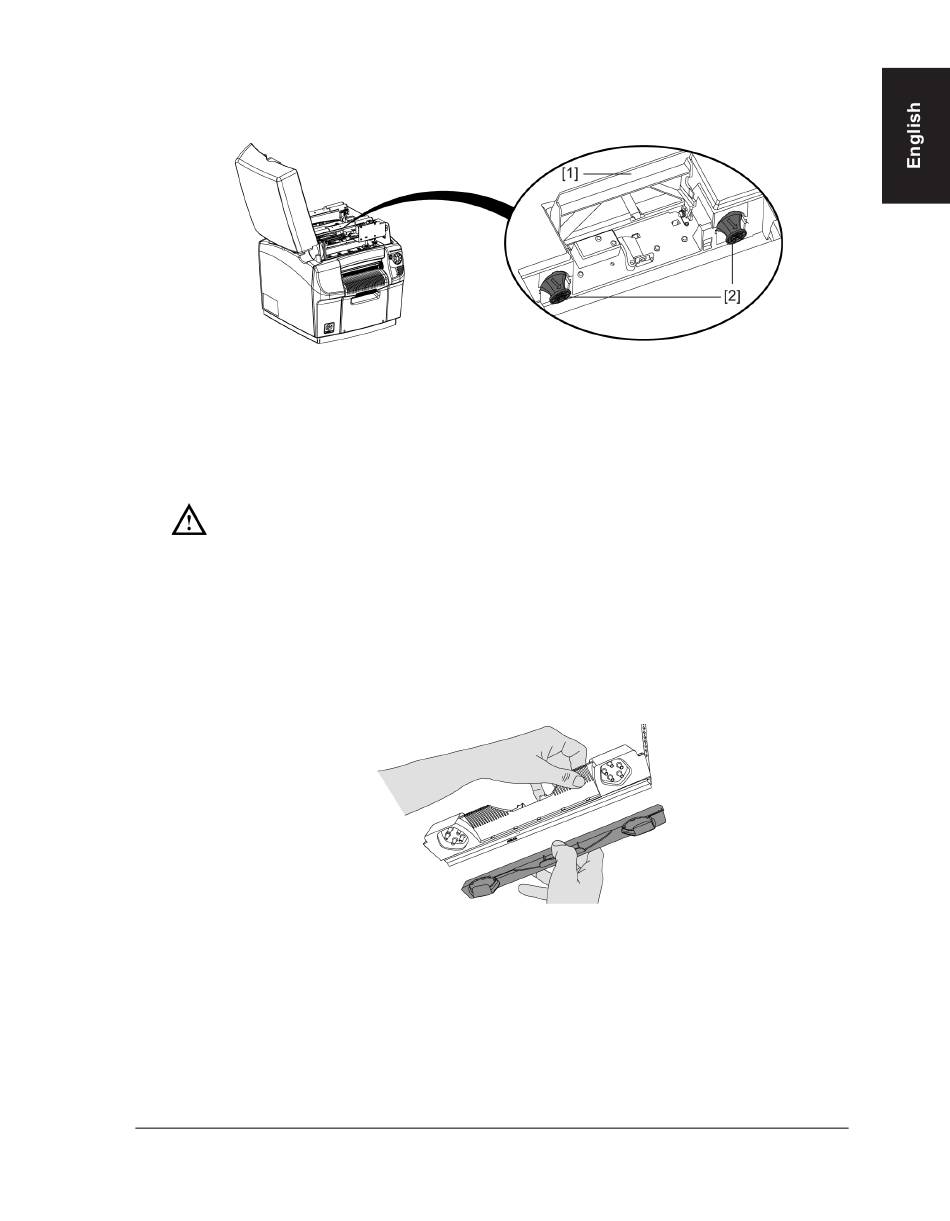

3. Make sure the printhead latch [1] is in the open (vertical) position. Remove the cap
protectors [2] from the two fluidic couplings.
Note: The printhead latch will be in the open position. Do not close the latch before
installing the printhead. If the latch is accidentally closed, do not pry it open. Turn the printer
off and back on again. The latch automatically opens during power up if no printhead is
installed.
4. Remove the printhead from the packaging.
Note: If the foil packing is damaged, report the issue to Technical Support or your reseller.
Do not place the unprotected printhead cartridge on any surface. Protect the
printhead cartridge at all times from contamination such as dust or fibers.
5. Wipe any excess shipping fluid from the printhead cartridge with a clean, lint-free cloth.
6. Remove the orange protective plastic cover from the printhead cartridge, holding the
printhead by the handle.
• Remove the flaps covering the ink ports.
• Remove the clip holding the cover near the center of the printhead cartridge.
• Carefully remove the protective cover. Do not touch any of the ink ports or nozzle plate
after the orange cover is removed.
