Installing Ink Cartridges
For safety, keep ink cartridges out of the reach of children. If ink is accidentally ingested,
contact a physician immediately.

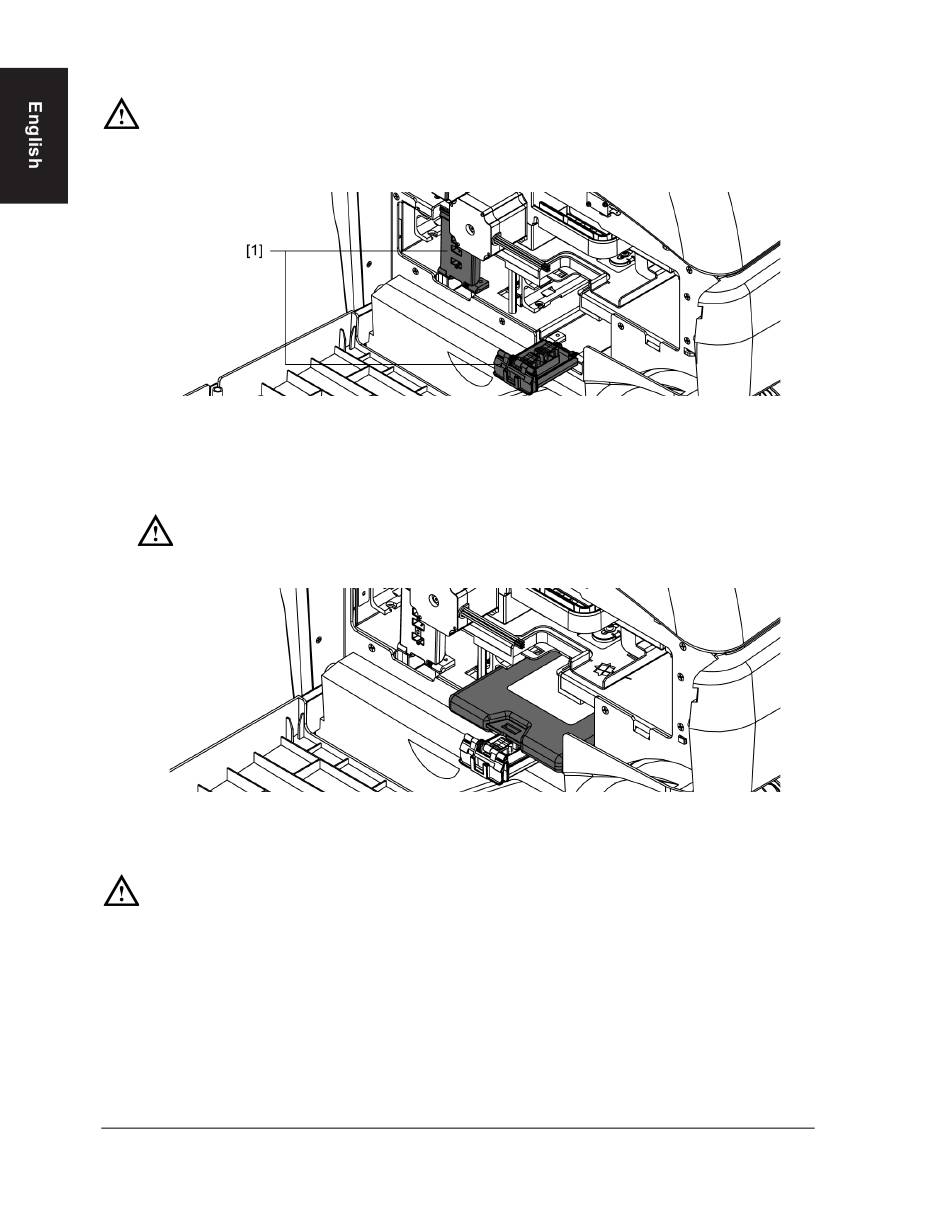

1. Open the main side door. Open both ink cartridge latches [1]. Each latch can be opened by
pressing down on the top of the locking mechanism and pulling outward.
The ink cartridge latches have labels showing where each ink color will be installed.
2. Slide in the ink cartridge, nozzle end first, label side up. Push the cartridge in all the way.
You will feel slight resistance near the end of this process as the nozzle engages the ink
needles inside the printer. Repeat this step for each color.
There are sharp needles in the ink cartridge slot. Never put your fingers in this area.
The printer is designed so that ink cartridges cannot be inserted in the wrong slots.
Do not attempt to insert ink cartridges in the wrong slots.
3. Close the ink cartridge latches. Then close the main side door.
Installing the Printhead
The printhead is sensitive to electrostatic discharge (ESD). Use ESD protection when
handling the printhead.
Do not touch the printhead cartridge ink couplings, nozzle surface, or the electrical
contacts when installing the printhead cartridge. Hold the printhead cartridge ONLY by
the handles.
To avoid drying out the printhead, do not open the printhead packaging until you are
ready to use it.
Open the printhead packaging over an appropriate receptacle to safely capture any
excess shipping fluid.
1. Ensure the printer is powered on and the ink cartridges have been installed.
