2.10 M.2_SSD (NGFF) Module Installation Guide (M2_3)
The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and
versatile card edge connector that aims to replace mPCIe and mSATA. The M.2 Socket
(M2_3) supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module
and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s)
(with Pinnacle Ridge and Picasso).
Installing the M.2_SSD (NGFF) Module
E D C
No.
Nut Location
PCB Length
Module Type Type2230
5
4
3
2
1
B A
1 2
A B
3cm 4.2cm
Type 2242
X570 Phantom Gaming 4
Step 1
Prepare a M.2_SSD (NGFF) module
and the screw.
Step 2

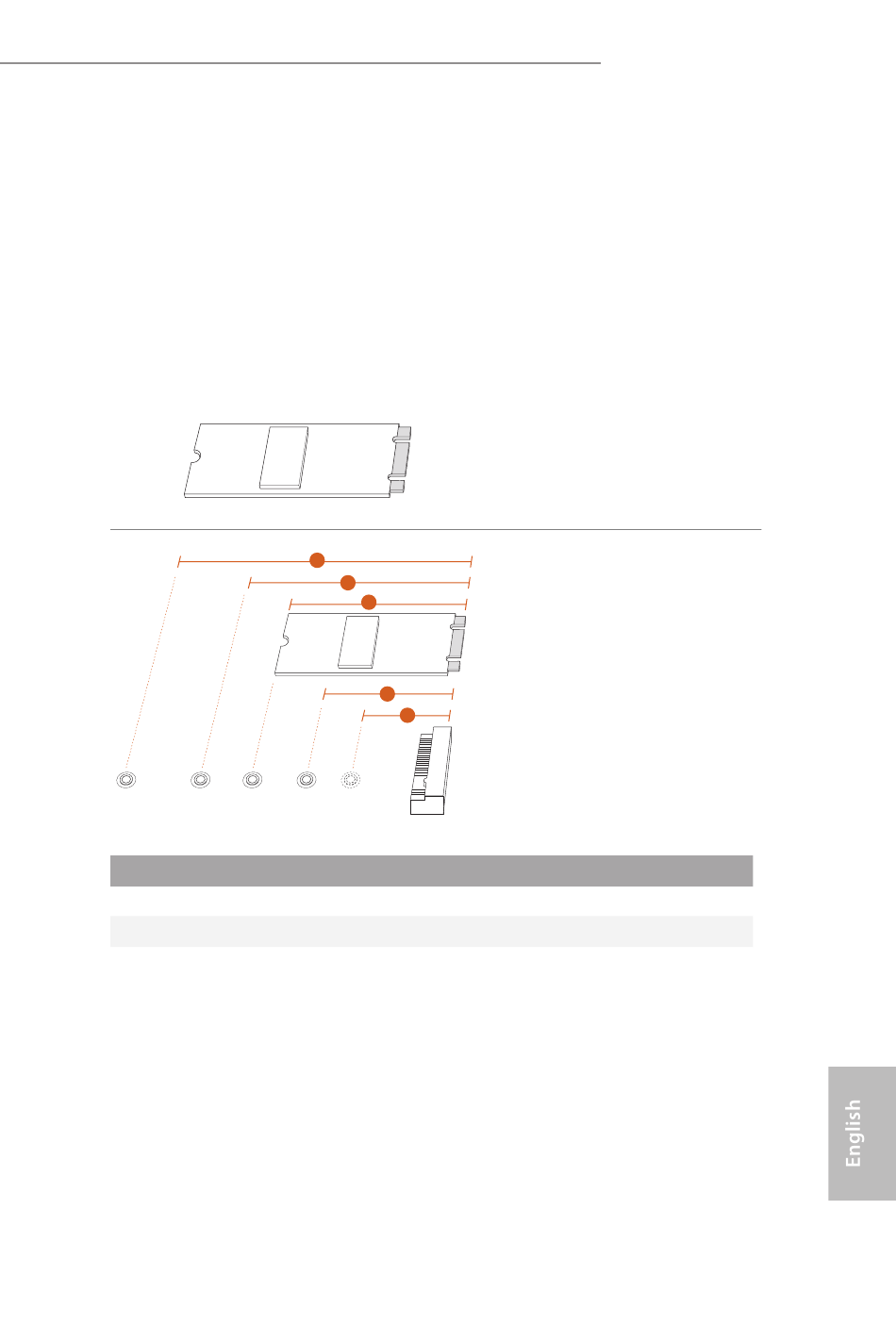

Depending on the PCB type and
length of your M.2_SSD (NGFF)
module, find the corresponding nut
location to be used.
3 4
C D
6cm 8cm
Type2260 Type 2280
5
E
11cm
Type 22110
