Specifications
Specifications Common to All Sprayers
Maximum pressure ....................... 23 MPa (3300 PSI)
Halogenated solvent compatible .. Yes
Inlet paint filter .............................. 10 mesh "rock catcher"
Outlet paint filter ........................... 50 mesh, 18 in.
Pump inlet..................................... 3/4" NPT(F)
Pump outlet .................................. 1/2" NPT(F) to paint filter
Paint filter hose connections......... 1/4" NPS(M)
Line width range ........................... 5–60 cm (2"–24")
Dimensions ................................... 150 cm L (59") x
Fluid section wetted parts:
Electroless nickel plated ductile iron, electroless nickel plated
carbon steel, stainless steel, tungsten carbide, Teflon, thiokol
impregnated leather, ultra high molecular weight polyethylene.
LineCoat 860 SP
Liters per minute (LPM) ................ 8.8 (2.35 GPM)
Maximum tip sizes ........................ 1 gun = .052" (1.32 mm)
Power ........................................... Honda 5.5 HP, 4-stroke, single
Fuel capacity ................................ 0.97 US gallons (3.67 liters),
Weight .......................................... 123 kg (271 lbs.)
Maximum spraying speed
(feet/minute, 4" line width) ............ 705 lineal feet (215 m)
Maximum spraying speed
(miles/hour, 4" line width) ............. 8 mph (12.9 kph)
LineCoat 880 SP
Liters per minute (LPM) ................ 8.8 (2.35 GPM)
Maximum tip sizes ........................ 1 gun = .052" (1.32 mm)
Power ........................................... Honda 8 HP, 4-stroke, single
Fuel capacity ................................ 0.97 US gallons (3.67 liters),
Weight:
Line Striper .............................. 372 lbs. (168 kg.)
Sulky Cart ................................ 98 lbs. (44 kg.)
Maximum spraying speed
(feet/minute, 4" line width) ............ 880 lineal feet (268 m)
Maximum spraying speed
(miles/hour, 4" line width) ............. 10 mph (16 kph)
R
GB
2
3/8" NPT(F) (plugged)
69 cm W (27") x
102 cm H (40")
2 guns = .038" (0.96 mm)
cylinder, overhead valve
engine w/oil alert
approx. 3.5 hours run time
2 guns = .038" (0.96 mm)
cylinder, overhead valve
engine w/oil alert
approx. 3.5 hours run time

General Description

The line stripers described in this manual include the LineCoat
860 SP and LineCoat 880 SP. These airless sprayers are
precision power tools used for spraying many types of materials.
Read and follow this Owner's Manual carefully for proper
operating instructions, maintenance, and safety information.
Both LineCoats are equipped with a PowrHandler drive system,
which makes them self-propelled line stripers. This enables
the operator to work on larger projects at higher speeds than a

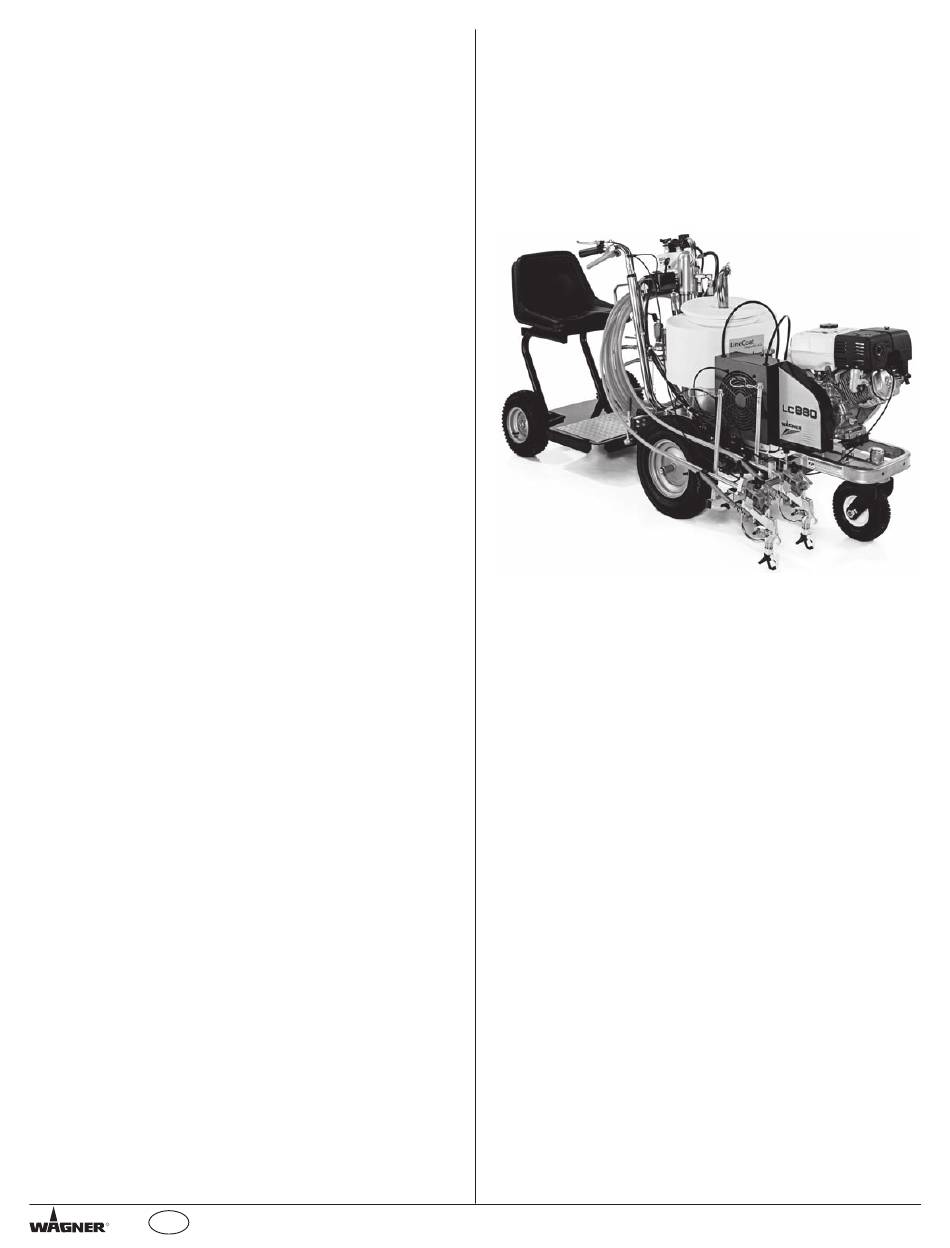

standard walk-behind line striper. In addition, the LineCoat 880
SP is equipped with a sulky cart, which makes it a self-propelled,
ride-behind line striper.
These LineCoats offer the following features:
• Freeze-proof pressure control
• Tungsten carbide reversible valve seats
• Self-adjusting packings
• Exclusive hand-tight swivel foot valve
• Large capacity inline paint filter
• Waterborne compatible
• "Floating Ball" pressure bleed valve
• 5 gallon siphon hose and bleed line assemblies are
standard
• Variable speed, hydraulically-powered drive system
utilizes reserve hydraulic horsepower from the LineCoat's
on-board hydraulic system.
• Electric FORWARD/REVERSE rocker switch is spring-
loaded to neutral for easy and safe operation.
• Transaxle provides consistent speed and power to rear
wheels for easier striping on hilly, sloped, or uneven
surfaces.
• Provides increased productivity by allowing faster striping
speeds.
• Speed is easily adjusted to suit the application or
operator's preference.
• All controls are in easy reach of the operator.
• Drive mechanism is easily disengaged.
