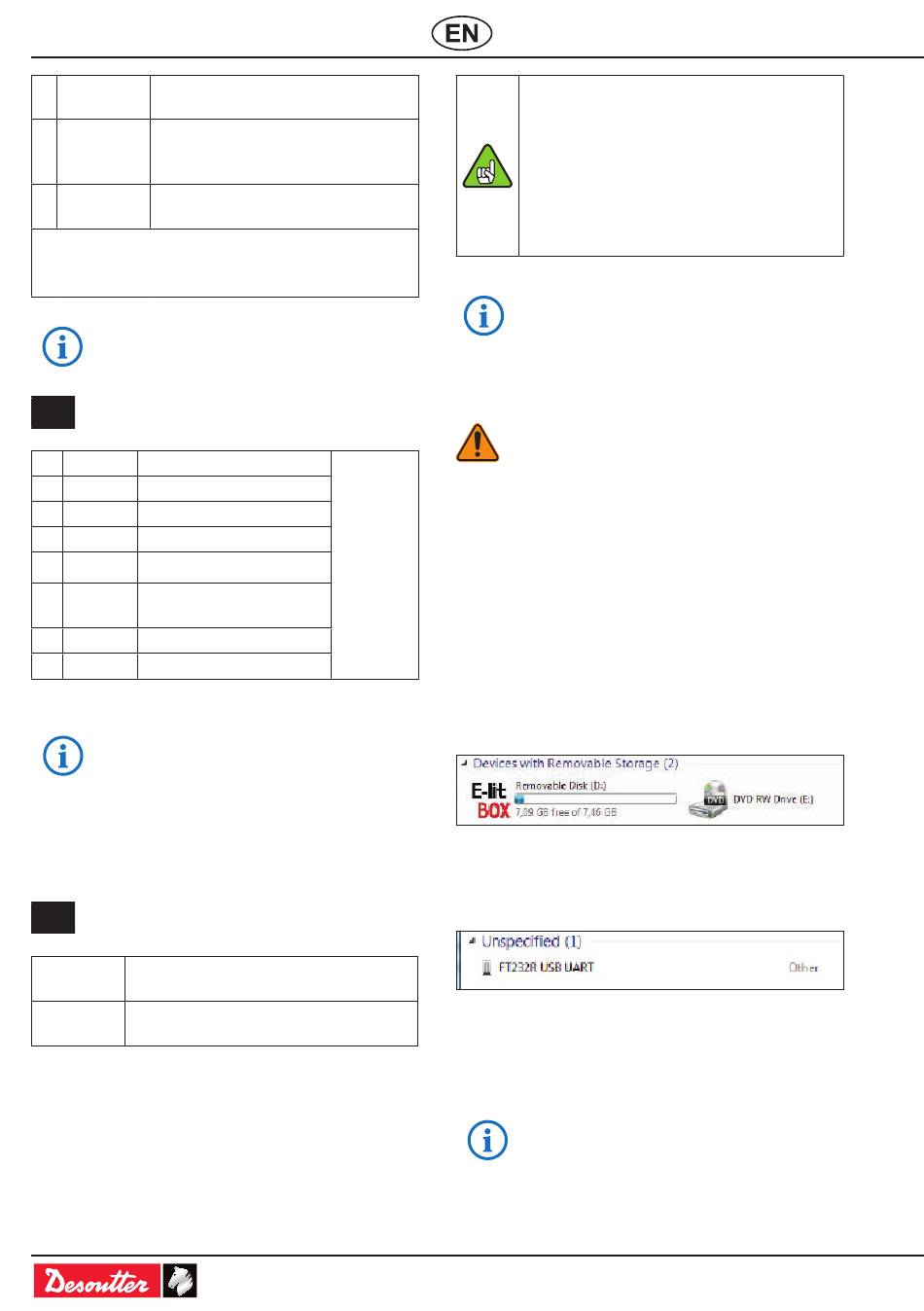

6 IN2 On pulse, the tool is unlocked.
On pulse, the tool is unlocked
7 IN3 and the tool batch counter is
reset.
On pulse, the tool runs in
8 IN4
reverse mode.
Min. pulse duration: 100 ms
Inputs are as per type II of standard CEI 1132-2
(24V/13mA per input).
● If other commands are required,
refer to the E-LIT PC software.
E J2 CONNECTOR
1 OUT1
CYCLE_OK
2 OUT2
CYCLE_NOK
3 OUT3
CYCLE_REVERSE
4 OUT4
CYCLE_REHIT
5 OUT5
BATCH_COMPLETE
6 OUT6
MAINTENANCE_
ALARM
7 OUT7
TOOL_LOCKED
8 OUT8
TOOL_READY
Digital outputs are NO type with dry
contact and not polarized
Relay specifications:
I max DC = 1 A
V max DC = 30 V
● Connect the 24V power supply to J1.
● Connect the PLC I/O to J1 and J2.
● Switch on the PLC.
F
TIMING CHART
Figure 1 Tool not setup for internal batch
counter management:
Figure 2 Tool setup for internal batch counter
management
OPERATING MODE
Make sure that the tool is in perfect
working order and the controller is
programmed correctly, to reduce the risk
of injury to the operator as a result of
unexpected behaviour of the tool.
● Switch on the power switch.
contact
When the module is powered on, all LEDs are lit
closed
and the relays are energized until new data are
received from the married tool.
PC connection
● Connect the module to the USB port by using
a USB cable (not provided).
A new drive (letter) is now created.
For example:
In Windows, go to "Start/Control panel/Devices
and Printers".
A new device (USB) is shown.
For example:
● Browse the new created drive to install the
driver of the new device.
● Check that the new port is added in the
Windows control panel/devices and printers.
10 / 40
To make sure that the PLC correctly
captures OK, NOK, REVERSE and
REHIT signals, each corresponding
relay is energized as follows:
Time ON > 500 ms
Time OFF > 500 ms
Those values are by default and can be
modified by using E-LIT PC software.
● If a different timing is required to
match PLC specifications, contact
your local Desoutter representative..
24 V power supply is not required when
the E-LIT BOX V2 module is connected
to the PC.
