Aspect and display

V
C
GB - 2
A D
E S

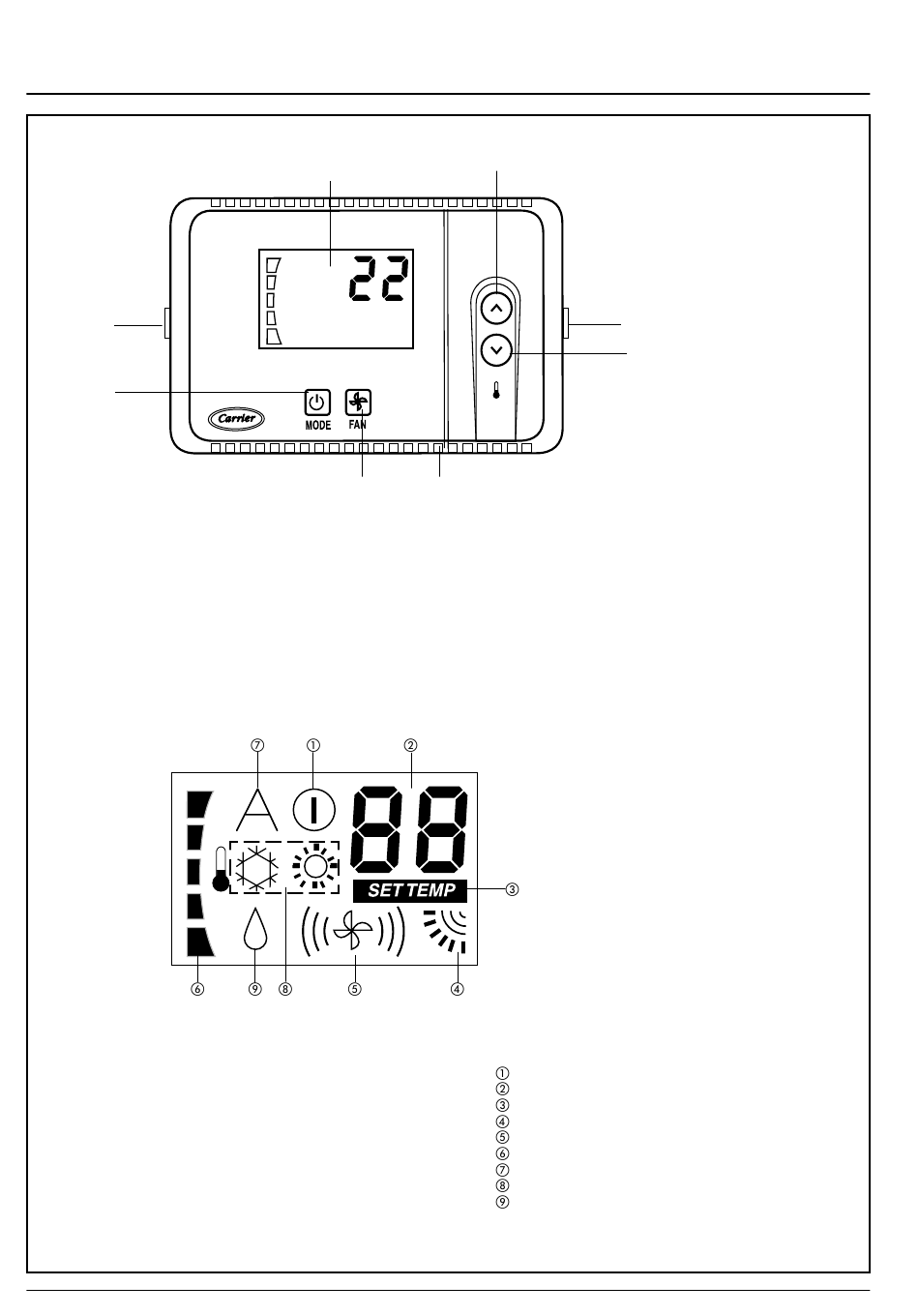

A = Display
C = Key for selecting the operating mode
D = Key for increasing temperature/changing louver
E = Button for selecting the fan speed
F = Key for decreasing temperature/changing louver
S = Room temperature sensor
V = Back panel fixing screws
V
F
setting
setting
Off
Desired temperature / room temperature
Not used
Louver position
Internal fan speed
Bargraph
Alarm
Operating mode (Cooling and Heating)
Not used
