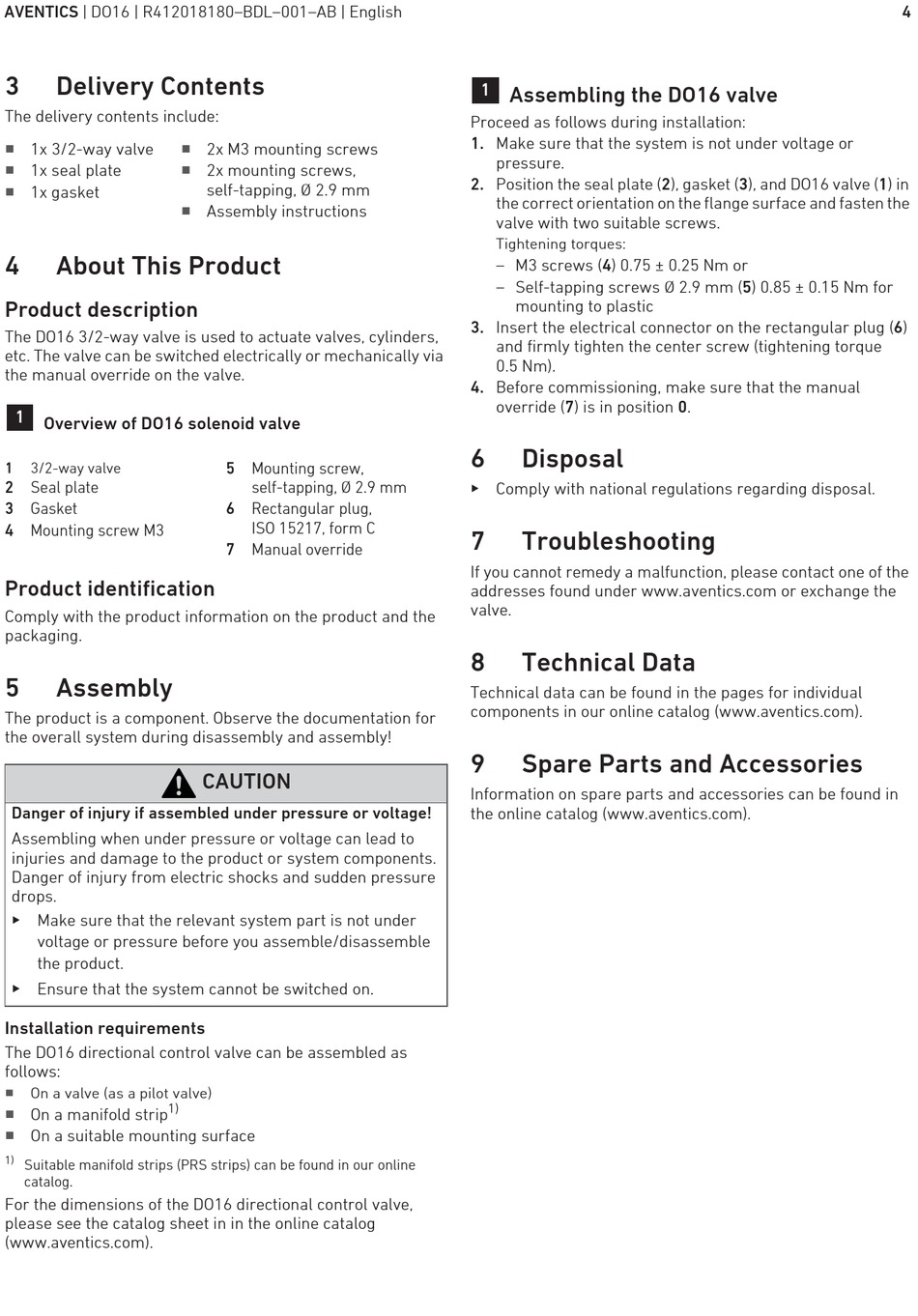

AVENTICS | DO16 | R412018180–BDL–001–AB | English
3
Delivery Contents
The delivery contents include:
W
1x 3/2-way valve
W
1x seal plate
W
1x gasket
4
About This Product
Product description
The DO16 3/2-way valve is used to actuate valves, cylinders,
etc. The valve can be switched electrically or mechanically via
the manual override on the valve.
1
Overview of DO16 solenoid valve
1
3/2-way valve
2 Seal plate
3 Gasket
4 Mounting screw M3
Product identification
Comply with the product information on the product and the
packaging.
5
Assembly
The product is a component. Observe the documentation for
the overall system during disassembly and assembly!
Danger of injury if assembled under pressure or voltage!
Assembling when under pressure or voltage can lead to
injuries and damage to the product or system components.
Danger of injury from electric shocks and sudden pressure
drops.
O Make sure that the relevant system part is not under
voltage or pressure before you assemble/disassemble
the product.
O Ensure that the system cannot be switched on.
Installation requirements
The DO16 directional control valve can be assembled as
follows:
W
On a valve (as a pilot valve)
1)
W
On a manifold strip
W
On a suitable mounting surface
1)
Suitable manifold strips (PRS strips) can be found in our online
catalog.
For the dimensions of the DO16 directional control valve,
please see the catalog sheet in in the online catalog
(www.aventics.com).
W
2x M3 mounting screws
W
2x mounting screws,
self-tapping, Ø 2.9 mm
W
Assembly instructions
5 Mounting screw,
self-tapping, Ø 2.9 mm
6 Rectangular plug,
ISO 15217, form C
7 Manual override
CAUTION
1
Assembling the DO16 valve
Proceed as follows during installation:
1. Make sure that the system is not under voltage or
pressure.
2. Position the seal plate (2), gasket (3), and DO16 valve (1) in
the correct orientation on the flange surface and fasten the
valve with two suitable screws.
Tightening torques:
– M3 screws (4) 0.75 ± 0.25 Nm or
– Self-tapping screws Ø 2.9 mm (5) 0.85 ± 0.15 Nm for
mounting to plastic
3. Insert the electrical connector on the rectangular plug (6)
and firmly tighten the center screw (tightening torque
0.5 Nm).
4. Before commissioning, make sure that the manual
override (7) is in position 0.
6
Disposal
O Comply with national regulations regarding disposal.
7

Troubleshooting

If you cannot remedy a malfunction, please contact one of the
addresses found under www.aventics.com or exchange the
valve.
8
Technical Data
Technical data can be found in the pages for individual
components in our online catalog (www.aventics.com).
9
Spare Parts and Accessories
Information on spare parts and accessories can be found in
the online catalog (www.aventics.com).
