Niko 05-206 Gebrauchsanleitung Seite 35

05-206
See 'Fig. 2' for a possible configuration with the binary input module
GB
L
230V~
N
L
230V~50Hz
Light sensor
350-10010
1
lx
1 2 3

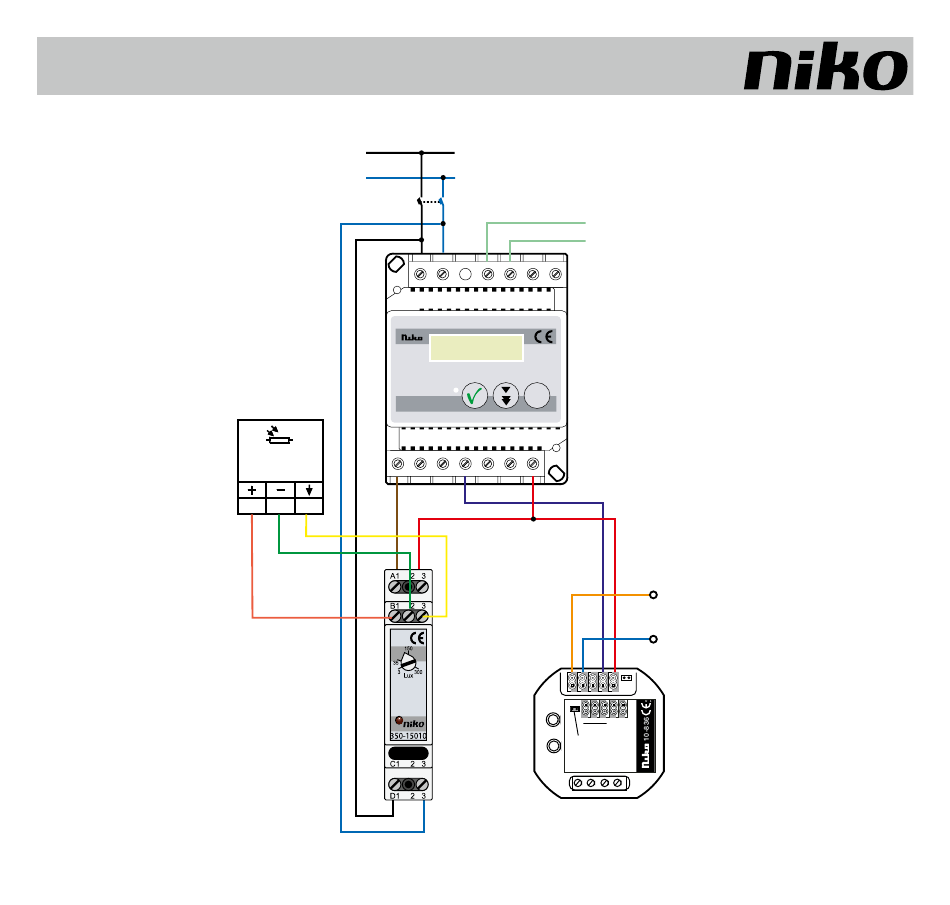

Fig. 2: connection diagram binary input module
Nikobus
N B1 B2
05-206
X
B
2 3 4 5 6 C
05-206
a b P K1 K2
:BUS
Take out jumper,
if using three-
wire system!
350-15010
a
BUS
b
relay
10-836
35
