1) Remove the profile housing (optional at extra cost), if present
2) Remove the trolleys from the support profile by proceeding as follows:
2 a) Loosen the mounting
screws to disconnect the
trolleys (which are engaged by
the belt) from the connecting
bracket;
2 c) Raise the trolleys as required for
removal from the guide track;
8

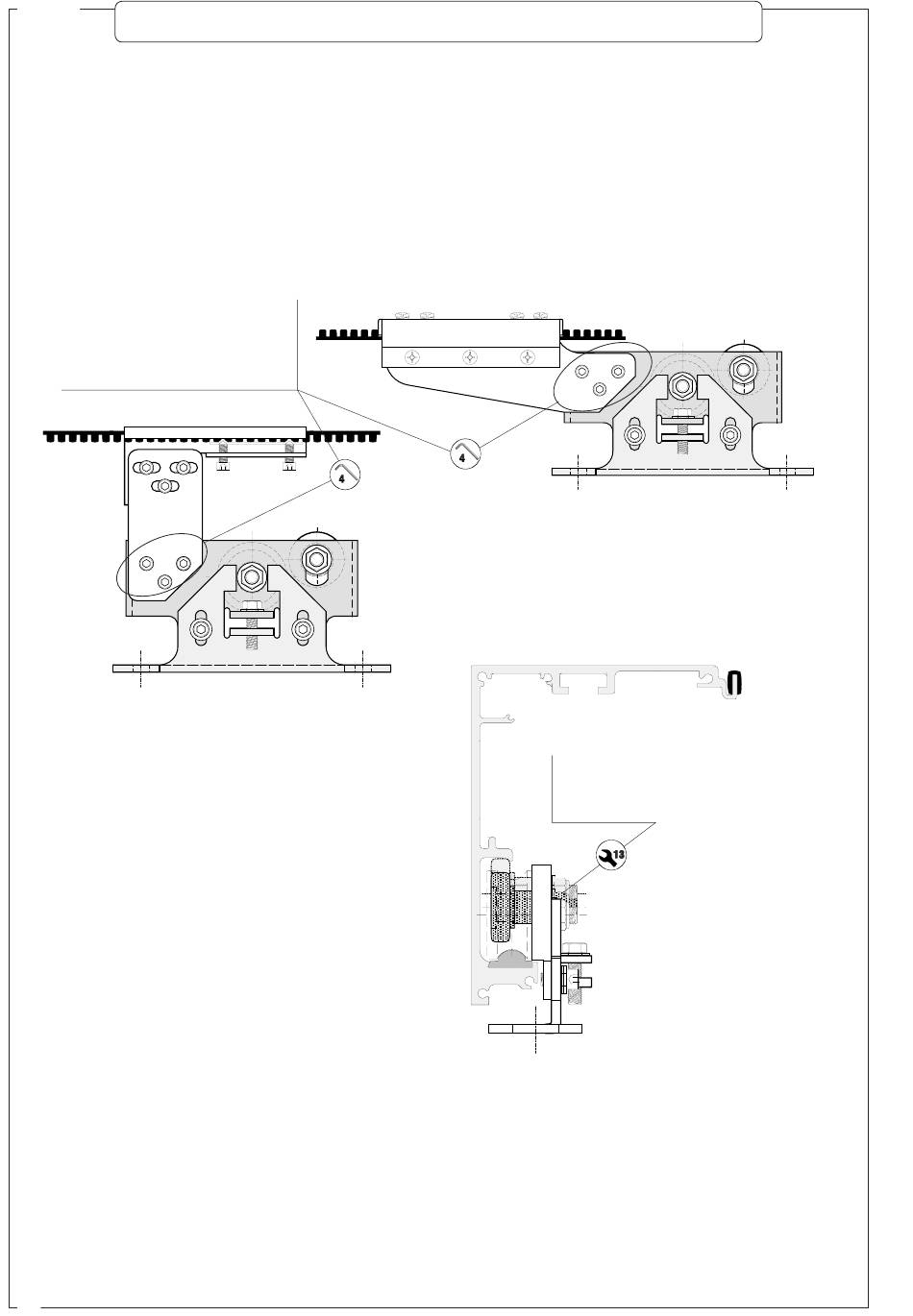

INSTALLING THE
TROLLEY WITH UPPER
ATTACHMENT SYSTEM
FOR BELT
3) Drill holes in the profile to allow passage of the power cables and
sensor leads (photocells-radar);
4) Centre the automation system with the passage area;
5) Using the holes provided, fasten the automation system to the
structure and check the system for correct horizontal alignment
(levelling).
BEAM
TROLLEY WITH LOWER
ATTACHMENT SYSTEM
FOR BELT
2 b) Loosen the nuts on
the "derailing prevention"
rollers and allow the
rollers to descend;
