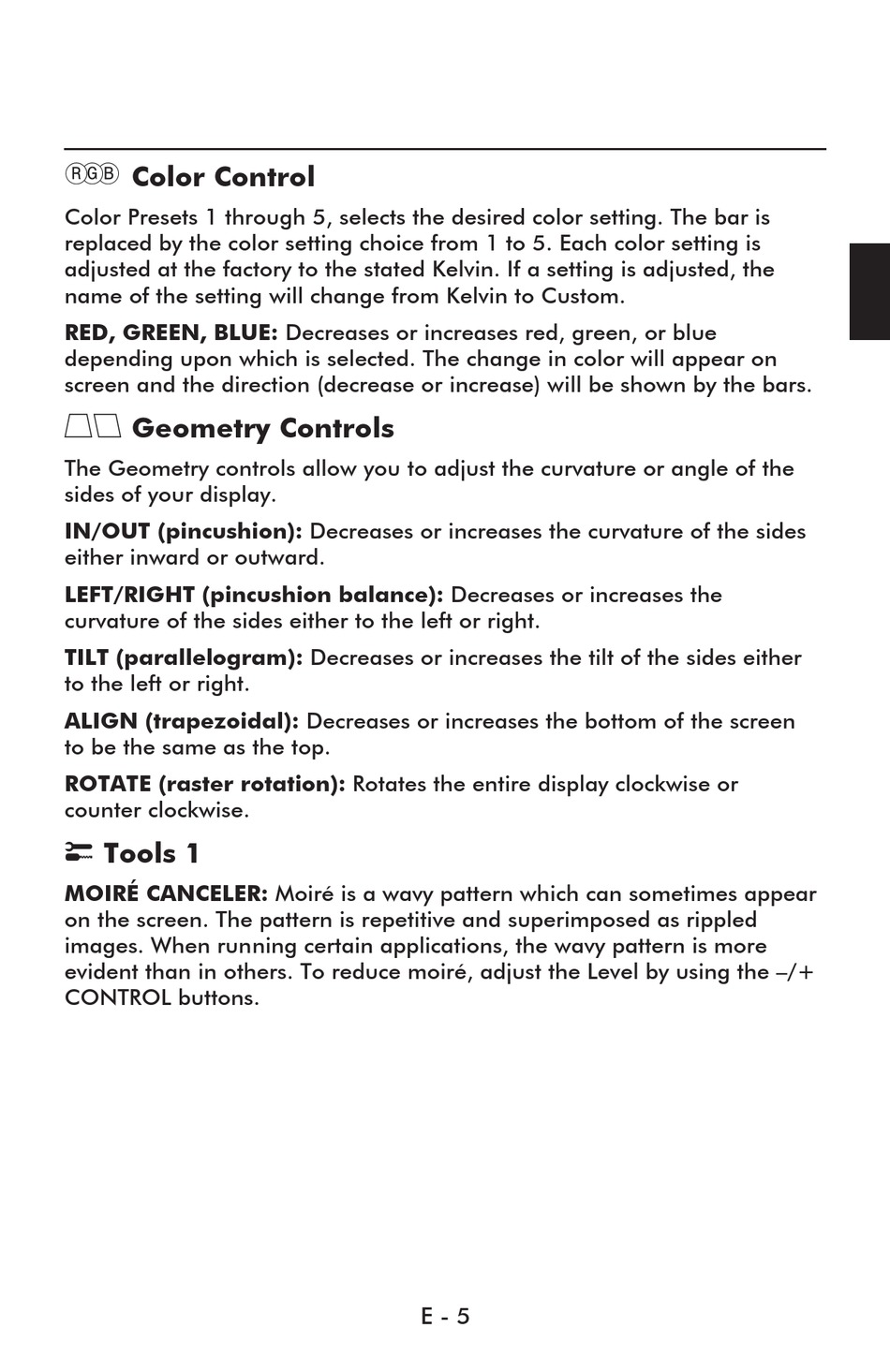

Color Control

Color Presets 1 through 5, selects the desired color setting. The bar is
replaced by the color setting choice from 1 to 5. Each color setting is
adjusted at the factory to the stated Kelvin. If a setting is adjusted, the
name of the setting will change from Kelvin to Custom.
RED, GREEN, BLUE: Decreases or increases red, green, or blue
depending upon which is selected. The change in color will appear on
screen and the direction (decrease or increase) will be shown by the bars.
pq Geometry Controls
The Geometry controls allow you to adjust the curvature or angle of the
sides of your display.
IN/OUT (pincushion): Decreases or increases the curvature of the sides
either inward or outward.
LEFT/RIGHT (pincushion balance): Decreases or increases the
curvature of the sides either to the left or right.
TILT (parallelogram): Decreases or increases the tilt of the sides either
to the left or right.
ALIGN (trapezoidal): Decreases or increases the bottom of the screen
to be the same as the top.
ROTATE (raster rotation): Rotates the entire display clockwise or
counter clockwise.
? Tools 1
MOIRÉ CANCELER: Moiré is a wavy pattern which can sometimes appear
on the screen. The pattern is repetitive and superimposed as rippled
images. When running certain applications, the wavy pattern is more
evident than in others. To reduce moiré, adjust the Level by using the –/+
CONTROL buttons.
E - 5
