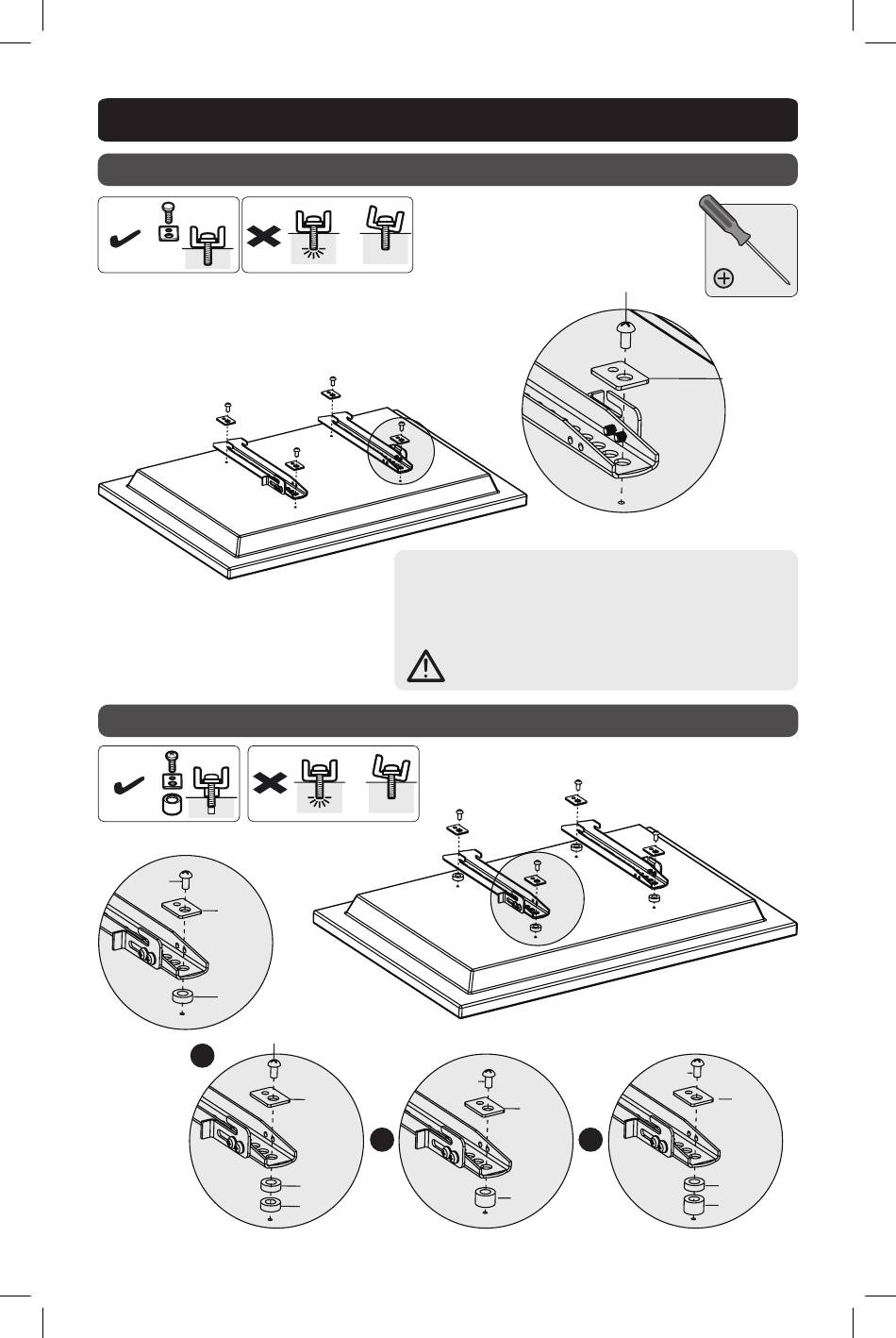

3. Install Adapter Brackets
3-1 For Flat Back Screen
TV
3-2 For Recessed Back Screen or to Access A/V Inputs
TV
M8X20
Washer
Small Spacer
or
13-03-117-933290-EN.indd 6
TV
TV
Note: Choose appropriate screws, washers and spacers (if
necessary) according to the type of screen.
• Position the adapter brackets as close as possible to the
center of the display.
• Screw the adapter brackets onto the display.
TV
TV
M8X20
M6X30
M8X30
Washer
or
Small Spacer
Small Spacer
Tighten all screws but do not over tighten.
M6X30
M8X30
Washer
or
Big Spacer
