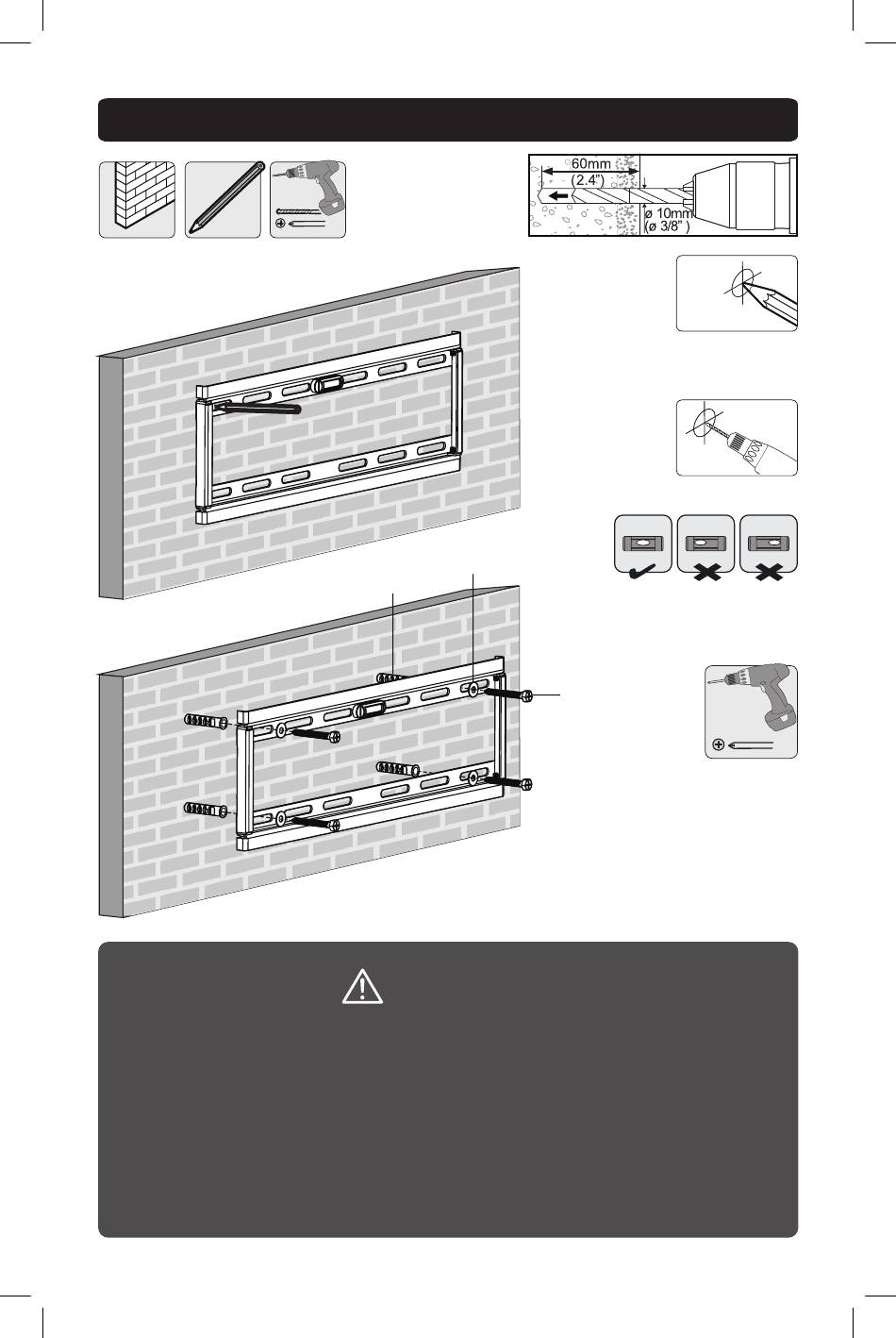

2b. Mount on Solid Brick and Concrete Block
• When installing wall mounts on cinder block, verify the actual concrete thickness
is at least 1-3/8" (35mm) for using the concrete anchors. Do not drill into mortar
joints! Be sure to mount in a solid part of the block, generally 1" (25mm) minimum
from the side of the block. It is suggested an electric drill on a slow setting be used
to drill the hole instead of a hammer drill to avoid breaking out the back of the hole
when entering a void or cavity.
• Installers must verify that the supporting surface will safely support the combined
load of the equipment and all attached hardware and components.
13-03-117-933290-EN.indd 5
D6 Washer
Concrete Anchor
WARNING
5
1
exact location of
mounting holes
2
Drill pilot holes
Anchor Bolt
Screw the wall
plate onto the
wall
4/25/2013 5:25:51 PM
