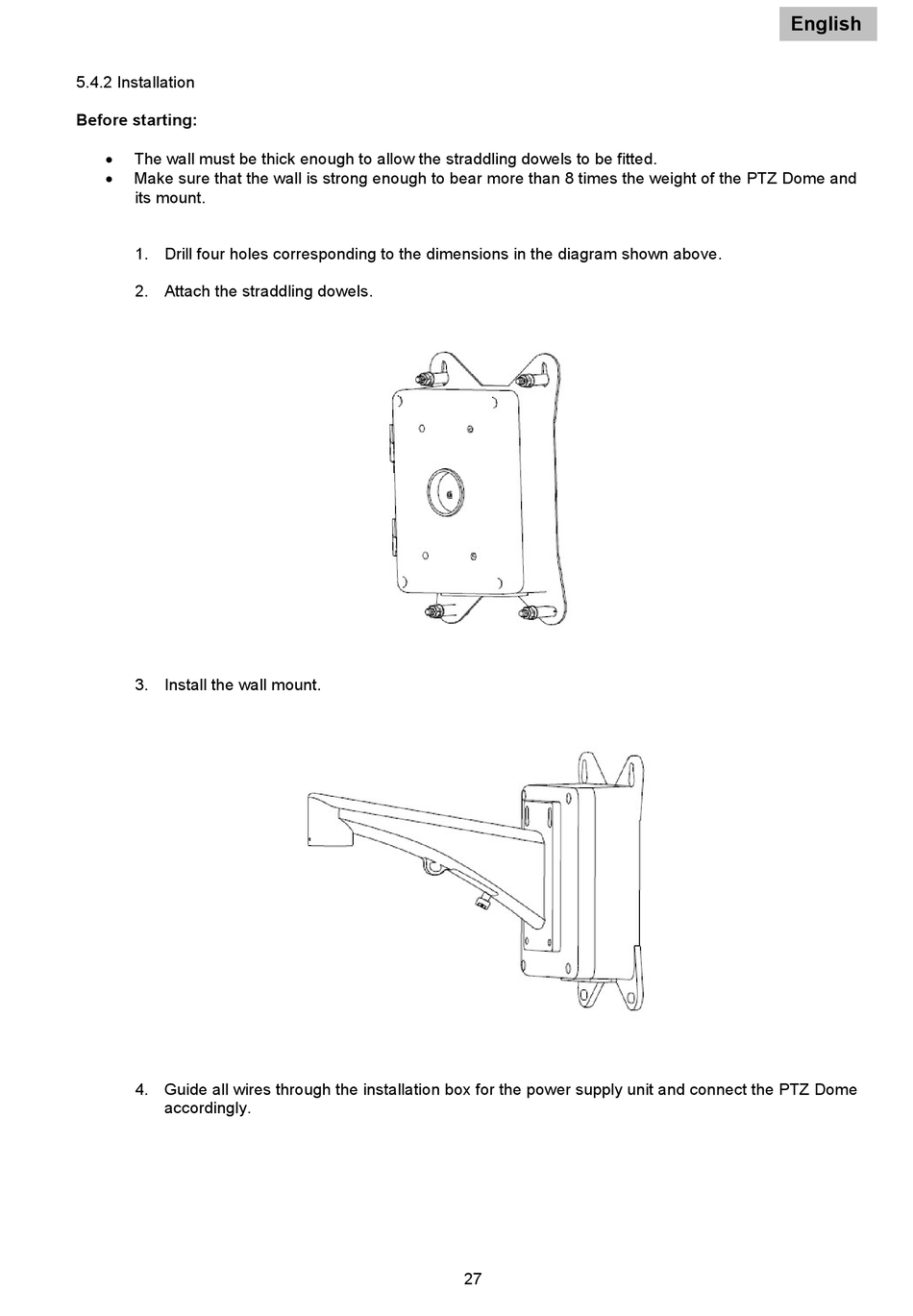

5.4.2 Installation
Before starting:

The wall must be thick enough to allow the straddling dowels to be fitted.

Make sure that the wall is strong enough to bear more than 8 times the weight of the PTZ Dome and
its mount.
1. Drill four holes corresponding to the dimensions in the diagram shown above.
2. Attach the straddling dowels.
3. Install the wall mount.
4. Guide all wires through the installation box for the power supply unit and connect the PTZ Dome
accordingly.
