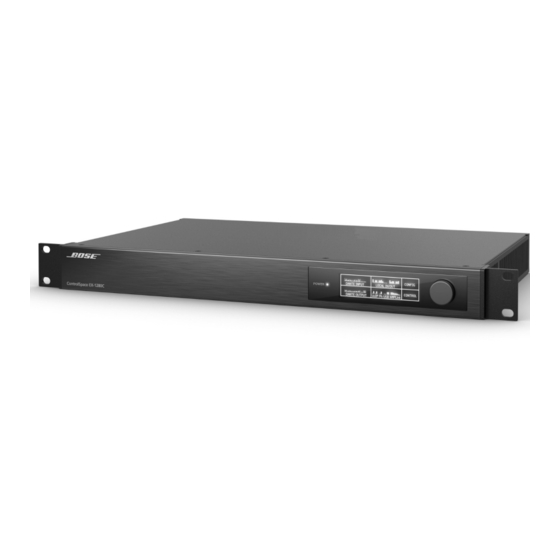

- Seite 1 ControlSpace EX-1280C Conferencing Processor Installation and Operation Guide Guía de instalación y funcionamiento Guide d’installation et d’utilisation Installations- und Bedienungsanleitung Manuale di installazione e funzionamento Installatie- en bedieningshandleiding...
-
Seite 2: Important Safety Instructions
This symbol on the product means there are important operating and maintenance instructions in this guide. NOTES: • Due to ventilation requirements, Bose does not recommend placing the product in a confined space such as in a wall cavity or in an enclosed cabinet. - Seite 3 This product conforms to all applicable EU directive requirements. The complete Declaration of Conformity can be found at www.Bose. com/compliance.
-
Seite 4: Instrucciones De Seguridad Importantes
Este símbolo en el producto indica que en esta guía se incluyen instrucciones de mantenimiento y funcionamiento importantes. NOTES: • Debido a los requisitos de ventilación, Bose no recomienda colocar el producto en espacios reducidos como una cavidad de pared o un gabinete cerrado. - Seite 5 Este producto cumple con todos los requisitos correspondientes de la Directiva de la UE. La Declaración de conformidad completa puede encontrarse en www.Bose.com/compliance. Este producto cumple con todos los requisitos de inmunidad de EN55103-2 para un entorno electromagnético E2.
-
Seite 6: Instructions Importantes Relatives À La Sécurité
à l’entretien de l’appareil. REMARQUES : • Pour assurer une ventilation correcte, Bose déconseille de placer ce produit dans un espace confiné tel qu’une cavité murale ou un placard fermé. Informations sur les produits générateurs de bruit électrique (Déclaration de conformité FCC pour les États-Unis) Ce matériel a fait l’objet de tests prouvant sa conformité... - Seite 7 à la pluie ou à l’humidité, mauvais fonctionnement, chute de l’appareil, etc.) Ce produit est conforme à toutes les directives en vigueur de l’Union européenne. La déclaration de conformité complète est disponible à l’adresse www.Bose.com/compliance. Ce produit répond aux critères d’immunité de la norme EN55103-2 pour les environnements électromagnétiques classés E2.
-
Seite 8: Wichtige Sicherheitshinweise
Geräts in Wohnungen können erhebliche Störungen des Funkverkehrs verursacht werden. Eventuell daraus entstehende Kosten trägt allein der Benutzer des Geräts. Veränderungen am Gerät, die nicht durch die Bose Corporation autorisiert wurden, können zur Folge haben, dass die Betriebserlaubnis für das Gerät erlischt. - Seite 9 Wichtige Sicherheitshinweise pro.Bose.com Wichtige Sicherheitshinweise: Lesen Sie die folgenden Anweisungen. 2. Bewahren Sie die Anweisungen auf. 3. Beachten Sie alle Warn- und Sicherheitshinweise. 4. Befolgen Sie alle Anweisungen. 5. Verwenden Sie dieses Gerät nicht in der Nähe von Wasser. 6. Reinigen Sie das Gerät nur mit einem sauberen, trockenen Tuch.
- Seite 10 Questo simbolo sul prodotto segnala istruzioni importanti di funzionamento e di manutenzione presenti in questa guida. NOTE: • A causa dei requisiti di ventilazione, Bose sconsiglia di posizionare il prodotto in spazi chiusi o angusti, ad esempio nicchie a parete o armadietti.
- Seite 11 è stato esposto a pioggia o umidità, se non funziona normalmente o è caduto. Questo prodotto è conforme a tutti i requisiti pertinenti delle direttive UE. La dichiarazione di conformità completa è disponibile all’indirizzo www.Bose.com/compliance. Il prodotto è conforme a tutti i requisiti di immunità EN55103-2 per ambienti elettromagnetici di tipo E2.
-
Seite 12: Belangrijke Veiligheidsinstructies
Dit symbool op het product betekent dat deze handleiding belangrijke bedienings- en onderhoudsinstructies bevat. OPMERKINGEN: • Omwille van de ventilatievereisten raadt Bose af om het product in een besloten ruimte te plaatsen, zoals in een nis in de muur of een dichte kast. - Seite 13 Belangrijke veiligheidsinstructies pro.Bose.com Belangrijke veiligheidsinstructies: Lees deze instructies door. 2. Bewaar deze instructies. 3. Neem alle waarschuwingen in acht. 4. Volg alle instructies. 5. Gebruik dit apparaat niet in de buurt van water. 6. Alleen met een droge doek reinigen.
-
Seite 14: Inhaltsverzeichnis
Contents pro.Bose.com Introduction Product Overview ....................................15 Package Contents .....................................15 Compatible Controllers ..................................15 Front and Rear Panels Front Panel ........................................16 Rear Panel ........................................16 Installation and Operation Hardware Installation ..................................17 Download and Install ControlSpace Designer Software ....................17 Mount Processor in Rack ................................17 Make Analog Audio Connections ...............................18... -
Seite 15: Product Overview
Nor does it cover every possible situation that may arise during installation, operation, or maintenance. If you need assistance beyond the scope of this guide, please contact your local Bose Representative or Technical Support specialist. See contact information in the back of this guide. -
Seite 16: Front And Rear Panels
Serial Port: 3-wire RS-232C (DTE) serial interface connection g Telephone Line: Supports worldwide analog telephone connections, using an RJ-11 connection h CC-16 Port: Supports Bose CC-16 zone controller, or other control interfaces that use a RS-485 connection j AC Mains Power Cord Connection: IEC 60320-C14 inlet... -
Seite 17: Installation And Operation
Download and install ControlSpace Designer software to a PC on the same local subnet as the EX-1280C conferencing processor. Visit pro.Bose.com to download the latest software version, which includes product firmware, the latest algorithms, and a detailed help system to guide system designers and installers through configuring the processor for use in high-quality audio systems. -
Seite 18: Make Analog Audio Connections
Installation and Operation pro.Bose.com 3. Make Analog Audio Connections Analog Audio The EX-1280C includes balanced dual-channel (3.81 mm, 6-pin) Euroblock connectors for analog audio connections. The termination end of each connector includes printed terminal block descriptions. Device Euroblock Connector Connector... -
Seite 19: Make Voip And Far-End Connections
CC-16 installation guide available at pro.Bose.com. You can network up to fifteen (15) CC-16 zone controllers to control the EX-1280C or any device on the Bose ControlSpace control network. An external power supply is required. Note that in addition to wiring the A and B terminals, it is highly recommended to connect the ground terminal from the EX-1280C to each CC-16 zone controller. -
Seite 20: Make Gpio Connections
Installation and Operation pro.Bose.com 7. Make GPIO Connections Five control inputs (GPI) and five control outputs (GPO) are available on the rear panel of the EX-1280C. Use these to interface the EX-1280C with external control hardware. General Purpose Inputs General-purpose control input ports are used to connect external hardware such as potentiometers (to control levels or gains) and switches (to set logic states). -
Seite 21: Connect Power Cord
For full details on using ControlSpace Designer software to configure, control, and monitor the processor or entire systems built with Bose networked system electronics, consult the help system inside the software, or visit pro.Bose.com and download the ControlSpace Software guide. -
Seite 22: Front Panel Control Menus
Installation and Operation pro.Bose.com Front Panel Control Menus The EX-1280C includes front panel control menus that can be used to review and change network settings, display metering for any audio input or output, and change display settings. Control Menu Descriptions The following tables describe each menu item and the various options available to the user from the front panel. - Seite 23 Installation and Operation pro.Bose.com LOCAL IN/OUT Description LOCAL INPUTS displays the following information for analog input channels 1 - 12: • Audio level (-60 dBu to +24 dBu) • PH POWER: Open circle indicates that there is no phantom power applied to the corresponding input channel.
- Seite 24 Installation and Operation pro.Bose.com DANTE OUTPUT Description DANTE OUTPUT displays audio levels (-60 dBu to +24 dBu) for each Dante input channel 1-64. Available Controls Channels 1-32 appear on the first screen. Turn the knob clockwise to view Channels 33-64. To return to the MAIN MENU, turn the knob counter-clockwise.
- Seite 25 Installation and Operation pro.Bose.com CONFIG > CS NETW SETTINGS Description CS NETW SETTINGS allows you to display and edit the following ControlSpace network settings: • MODE: Select DHCP or STATIC • IP ADDRESS: Display and edit the device’s IP address.
- Seite 26 ControlSpace Designer software or the Dante controller. • Fact Model • Fact SW: Display the version number for the Bose software installed on the EX1280-C. • Fact FW: Display the version number for the Bose firmware installed on the EX1280-C.
-
Seite 27: Maintenance Operations
Maintenance Operations Firmware and Software Upgrades ControlSpace Designer software is updated on a periodic basis. Please check our website at pro.Bose.com for new software releases. For information on how to update the firmware for the EX-1280C, consult the ControlSpace Designer software help system, located inside the software. -
Seite 28: Troubleshooting
Installation and Operation pro.Bose.com Troubleshooting Problem What to do No power • Plug in IEC power cord • Check mains power Power is on, but • Verify that there is an input signal from the source using ControlSpace Designer software. -
Seite 29: Technical Information
Technical Information pro.Bose.com Problem What to do No AmpLink • Ensure shielded CAT-5 network cable is used for AmpLink and set the amplifier to receive audio received AmpLink channels 1-8. from EX-1280C connected to an AmpLink- enabled amplifier No EX-1280C •... -
Seite 30: Technical Specifications
Technical Information pro.Bose.com Technical Specifications Integrated DSP Signal Processor 32-bit fixed/floating-point DSP 456 MHz/ARM Cortex-A8 600Mhz Maximum Calculation 3.6 GIPS / 2.7 GFLOPS Delay 43 s Audio Latency 1.05 ms (analog in to analog out, without AEC) A/D and D/A Converters... -
Seite 31: Limited Warranty
Crestron® is a registered trademark of Crestron Electronics, Inc. AMX® is a registered trademark of Harmon, International. Refer to the owner’s guide at pro.Bose.com for more information about this product, including accessories and replacement parts. To request a printed copy, use the phone numbers provided. -
Seite 32: Telecom Compliance
This product is not intended to be repaired. If you experience trouble with this equipment, please contact: Name: Bose Corporation Address: 100 The Mountain Rd., Framingham, MA, 01701 U.S.A. -
Seite 33: Additional Information
Additional Information pro.Bose.com For Canadian Users This product meets the applicable Innovation, Science and Economic Development Canada technical specifications. The Ringer Equivalence Number (REN) indicates the maximum number of devices allowed to be connected to a telephone interface. The termination of an interface may consist of any combination of devices subject only to the requirement that the sum of the RENs of all the devices not exceed five. - Seite 34 Additional Information pro.Bose.com 34 - Installation and Operation Guide...
-
Seite 35: Contact Information
Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng East Road, Taipei City 104, Taiwan Tel: 886 2 2514 7977 Mexico Bose de México, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 México, D.F. Tel: 001 800 900 2673 Installation and Operation Guide - 35... - Seite 36 ©2017 Bose Corporation, All rights reserved. 100 The Mountain Rd., Framingham, MA 01701-9168 USA www.pro.Bose.com All trademarks are the property of their respective owners AM788755 Rev. 00 September 2017...
