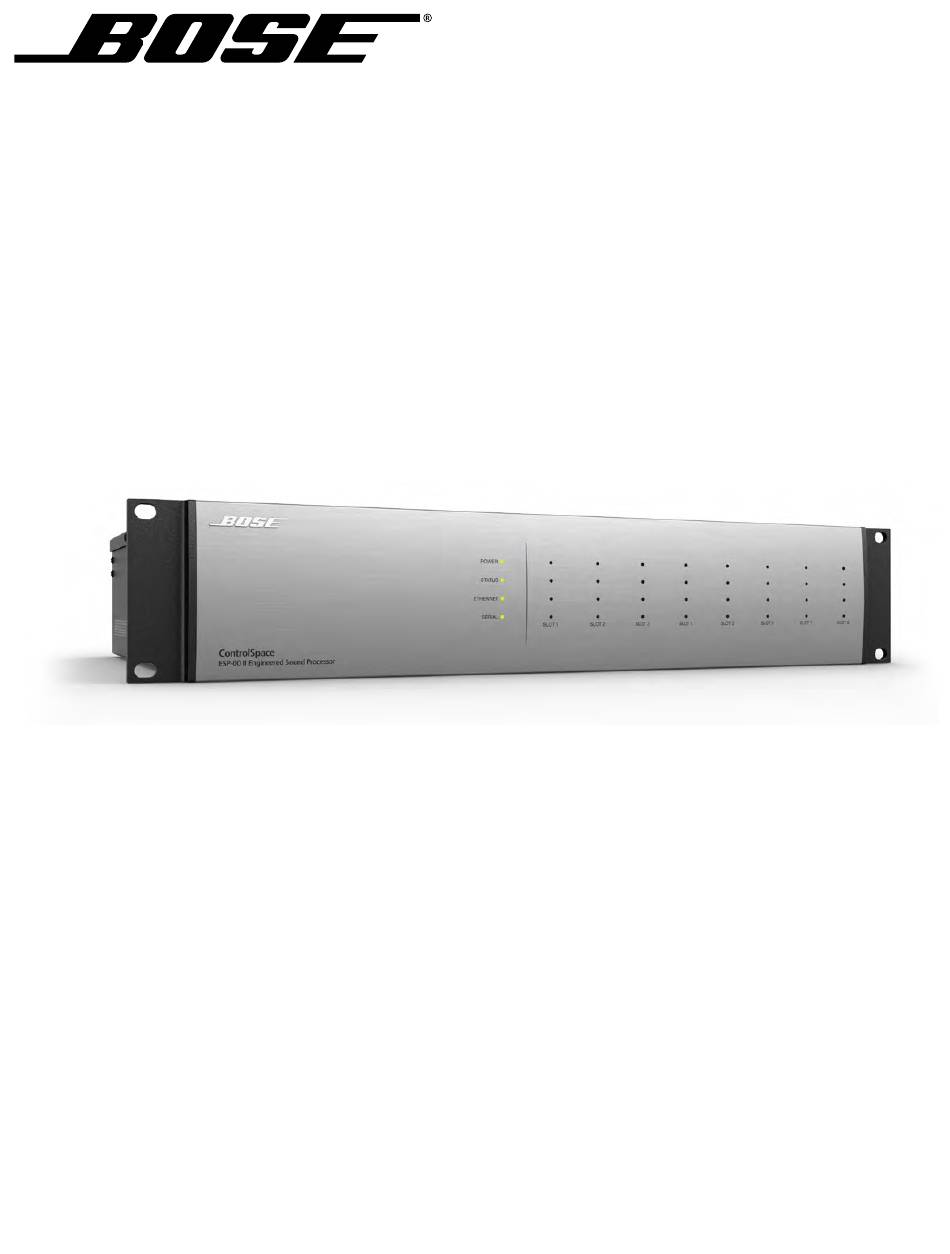

- Seite 1 ESP-00 Series II ControlSpace ® EnginEErEd Sound ProcESSorS installation guide...
-
Seite 3: Inhaltsverzeichnis
Contents pro.Bose.com Introduction Online Resources ................................12 Product Features ................................12 Available Accessories ..............................13 Accessory Cards ..............................13 User Control Interfaces ............................14 Product Overview Front Panel ..................................14 Rear Panel ..................................15 Hardware Installation 1. Download and install the latest version of ControlSpace Designer software ............ -
Seite 4: Important Safety Information
ESP-00 Series II engineered sound processor for your sound reinforcement system. This document ® ® is intended to provide professional installers with basic installation and safety guidelines for Bose ControlSpace ESP-00 Series II engineered sound processor in typical fixed-installation systems. Please read this document before attempting installation. WARNINGS: •... -
Seite 5: General Precautions
Do not attempt to service this product yourself. Opening or removing covers may expose you to dangerous voltages or other hazards. Please call Bose to be referred to an authorized service center near you. -
Seite 6: Información De Seguridad Importante
Este documento está pensado para ofrecer a los instaladores profesionales instrucciones básicas de instalación y seguridad relacionadas con el procesador de sonido profesional Bose ControlSpace ESP-00 Series II en sistemas típicos de instalación fija. Lea este documento antes de intentar la instalación. -
Seite 7: Precauciones Generales
No intente reparar este producto usted mismo. La apertura o retirada de las tapas le expondrá a tensiones peligrosas o a otros peligros. Póngase en contacto con Bose para conocer cuál es el centro de servicio técnico autorizado de su zona. -
Seite 8: Instructions Importantes Relatives À La Sécurité
ESP-00 série II pour votre système d’amplification du son. Ce document à l’intention ® ® des installateurs professionnels contient les directives de pose et de sécurité relatives aux processeurs audio Bose ControlSpace ESP-00 série II en installation fixe. Lisez attentivement ce document avant l’installation. AVERTISSEMENTS : •... -
Seite 9: Précautions Générales
à la pluie ou à l’humidité, mauvais fonctionnement, chute de l’appareil, etc.). Ne tentez pas de réparer ce produit vous-même. L’ouverture ou la dépose d’un couvercle risque de vous exposer à des tensions électriques ou autres dangers. Veuillez contacter Bose pour connaître les coordonnées du centre de réparation agréé... -
Seite 10: Wichtige Sicherheitshinweise
ESP-00 Series II Engineered Sound Processor für Ihr Klangverstärkungssystem gewählt haben. Dieses ® ® Dokument soll fachkundigen Monteuren grundlegende Installations- und Sicherheitsrichtlinie für den Bose ControlSpace ESP-00 Series II Engineered Sound Processor in typischen Festinstallationssystemen bieten. Bitte lesen Sie dieses Dokument vor der Installation durch. WARNUNG: •... -
Seite 11: Informationen Über Produkte, Die Elektrische Störgeräusche Erzeugen
20. Die Betriebsanzeige-LED leuchtet grün, wenn das Produkt Netzstrom erhält. Wenn Strom anliegt und die LED nicht leuchtet oder wenn die LED rot ist, senden Sie das Gerät bitte zur Reparatur ein. Die Bose Corporation erklärt hiermit, dass dieses Produkt die wesentlichen Anforderungen und andere relevante Bestimmungen der Richtlinie 1999/5/CE und weitere geltende EU-Richtlinien erfüllt. Die vollständige Konformitätserklärung ist einsehbar unter www.Bose.com/compliance. -
Seite 12: Online Resources
Nor does it cover every possible situation that may arise during installation, operation, or maintenance. If you need assistance beyond the scope of this guide, please contact your local Bose Representative or Technical Support specialist (See the contact information in “Additional Resources” on page 23). -
Seite 13: Available Accessories
Please order accessory cards as needed for your application. At time of print, the following expansion cards are available. For further information on these cards, and to view new cards that are available, please visit pro.Bose.com. • Dante network card (PC 359843-0020) ™... -
Seite 14: User Control Interfaces
The following interfaces can be used with the ESP-00 II engineered sound processor: • ControlSpace CC-64 control center (PC 041760) (Figure 2) Figure 2. CC-64 control center Network control of any Bose networkable hardware. ® • ControlSpace CC-16 zone controller (PC 041761) Uses CC-16 port. -
Seite 15: Download And Install The Latest Version Of Controlspace ® Designer Software
® ™ Install ControlSpace Designer software prior to working with the ControlSpace ESP processor. Visit pro.Bose.com to download the latest software version which includes product firmware, the latest algorithms and a detailed help system that guides system designers and installers through configuring the ESP processor for use in high-quality audio systems. -
Seite 16: Unpacking
Installation Guide pro.Bose.com 2. Unpacking The product box includes the following items. Inspect all components for shipping damage and contact your Bose Representative if any issues are found. Figure 5. Carton Contents Control I/O CC-16 connectors (2) connector Installation Guide... -
Seite 17: Cc-16 And Rs-232 Connections
Installation Guide pro.Bose.com 6. CC-16 and RS-232 connections CC-16 Connector The CC-16 connector is an RS-485 network connection for use with Bose CC-16 zone Figure 7. CC-16 connector location ® controllers. Using the supplied Euroblock 3-pin labeled connector, up to 15 CC-16... -
Seite 18: Connect Gpio Devices
Designer software, functions can easily be assigned to these external ® ™ controls. In addition, Bose offers the CC-4 room controller which provides 4-source selection and volume control. Using Switches Using Potentiometers Both toggle switches and pushbuttons can be used 10k ohm potentiometers can be connected and associated with control gain with control inputs. -
Seite 19: Network Connection
ControlSpace Designer software. For full details on using ControlSpace Designer software to configure, control, and monitor the ESP processor or entire systems built with Bose networked system electronics, visit pro.Bose.com and download the ControlSpace Software Guide or use the help system inside the software. -
Seite 20: Maintenance Operations
POWER LED is Red • Power-cycle the unit using the rear-panel POWER switch. If the issue continues, call your Bose Sales or Support representative. STATUS LED is Red or Off •... -
Seite 21: Appendix
PC Configuration Software ControlSpace Designer software ® ™ Network Control Ethernet (RJ-45), 10Base-T Communication Ports RS-232 (DB9M, DTE), Bose CC-16 (5.08 mm Euroblock 3-pin) Expansion Slots 8 analog/digital audio, 2 GPIO (1 occupied) Audio Channel Capacity 64 (bi-directional, digital and/or analog) English... - Seite 22 Installation Guide pro.Bose.com English...
-
Seite 23: Additional Resources
