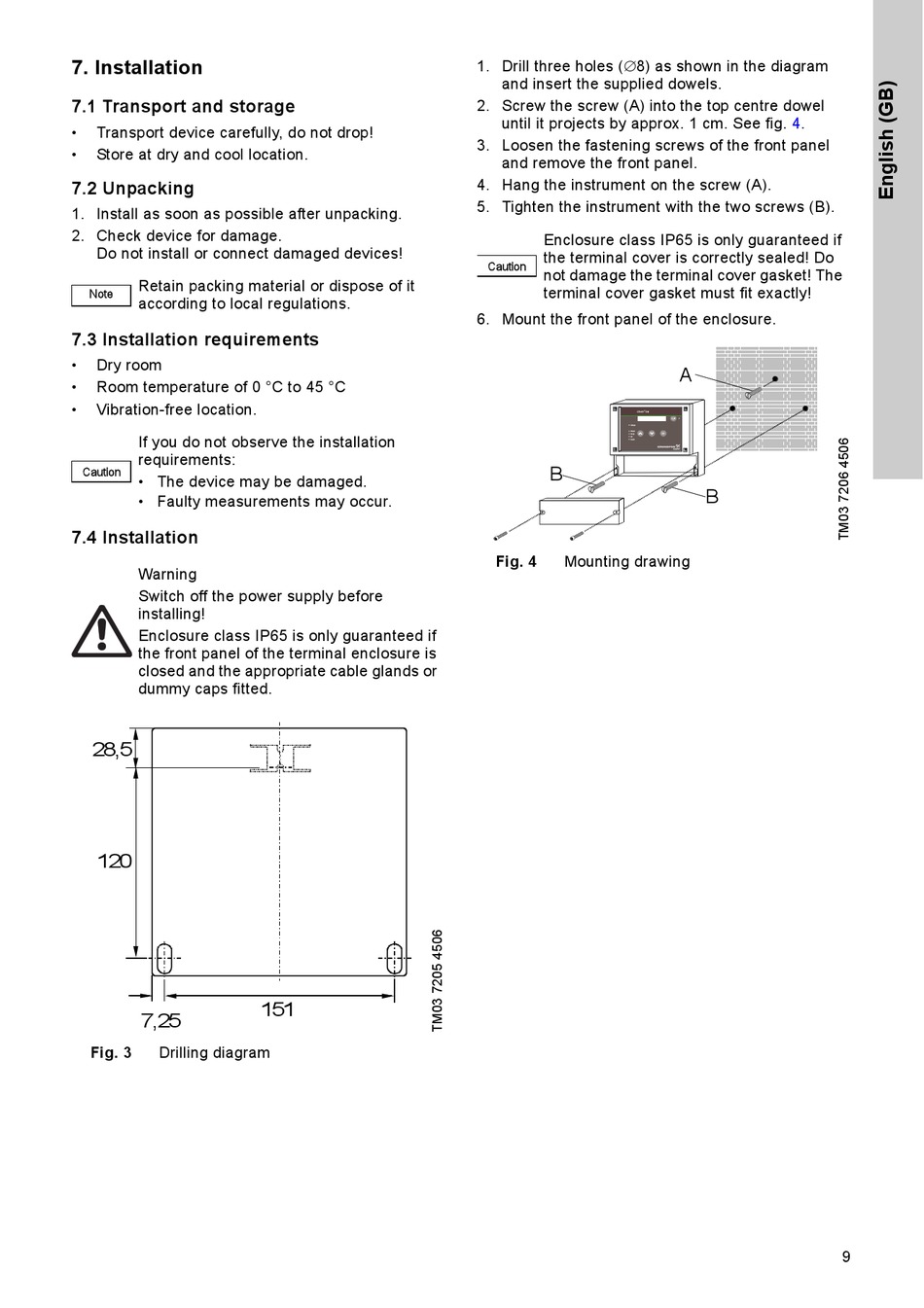

7. Installation

7.1 Transport and storage

• Transport device carefully, do not drop!
• Store at dry and cool location.

7.2 Unpacking

1. Install as soon as possible after unpacking.
2. Check device for damage.
Do not install or connect damaged devices!
Retain packing material or dispose of it
Note
according to local regulations.

7.3 Installation requirements

• Dry room
• Room temperature of 0 °C to 45 °C
• Vibration-free location.
If you do not observe the installation
requirements:
Caution
• The device may be damaged.
• Faulty measurements may occur.
7.4 Installation
Warning
Switch off the power supply before
installing!
Enclosure class IP65 is only guaranteed if
the front panel of the terminal enclosure is
closed and the appropriate cable glands or
dummy caps fitted.
28,5
120
7,25
Fig. 3 Drilling diagram
151
1. Drill three holes (8) as shown in the diagram
and insert the supplied dowels.
2. Screw the screw (A) into the top centre dowel
until it projects by approx. 1 cm. See fig. 4.
3. Loosen the fastening screws of the front panel
and remove the front panel.
4. Hang the instrument on the screw (A).
5. Tighten the instrument with the two screws (B).
Enclosure class IP65 is only guaranteed if
the terminal cover is correctly sealed! Do
Caution
not damage the terminal cover gasket! The
terminal cover gasket must fit exactly!
6. Mount the front panel of the enclosure.
B
Fig. 4 Mounting drawing
A
B
9
