Danger!
Hazardous electrical voltage
The leakage current of the connected controllers to PE can amount
to > 3.5 mA AC or > 10 mA DC.
Possible consequences:
ƒ
Protective measures:
ƒ

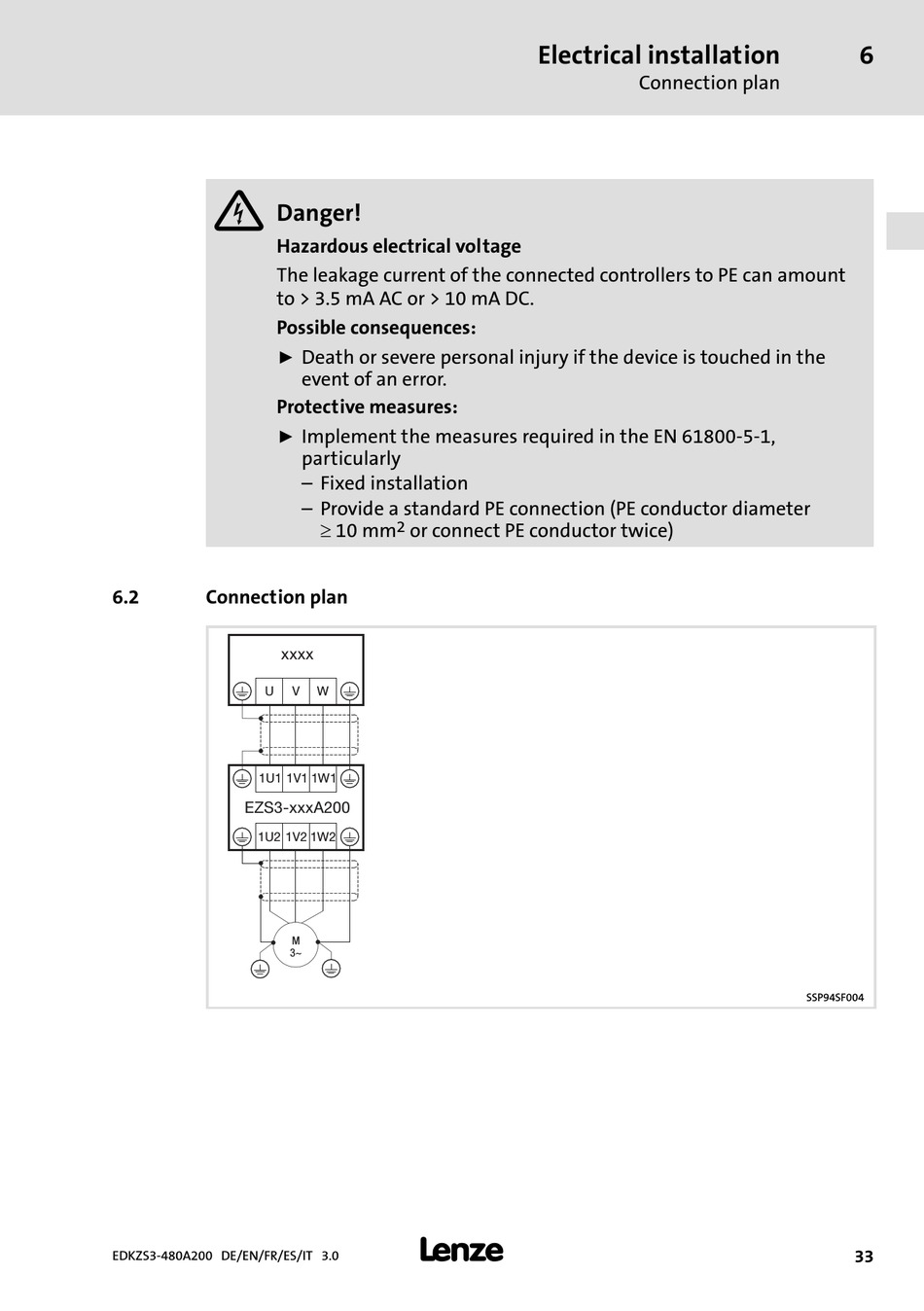

6.2

Connection plan

xxxx
U
1U1 1V1
EZS3-xxxA200
1U2 1V2
EDKZS3−480A200 DE/EN/FR/ES/IT 3.0
Death or severe personal injury if the device is touched in the
event of an error.
Implement the measures required in the EN 61800−5−1,
particularly
– Fixed installation
– Provide a standard PE connection (PE conductor diameter
³ 10 mm
2
or connect PE conductor twice)
V W
1W1
1W2
M
3~
l
Electrical installation
Connection plan
6
SSP94SF004
33
