Celestron LCM Serie Schnellstartanleitung

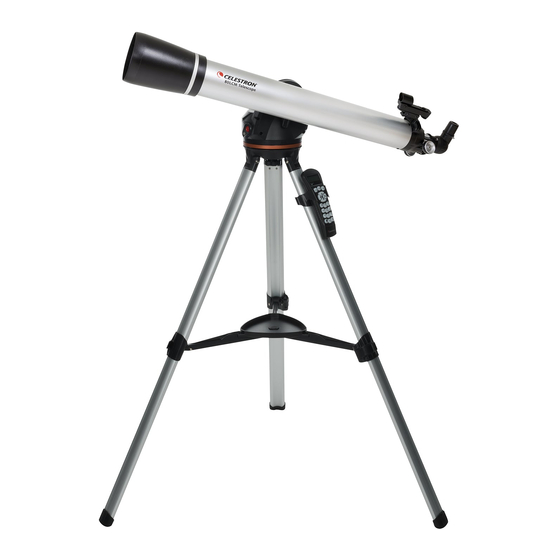

REFRACTOR
(80LCM shown)
1

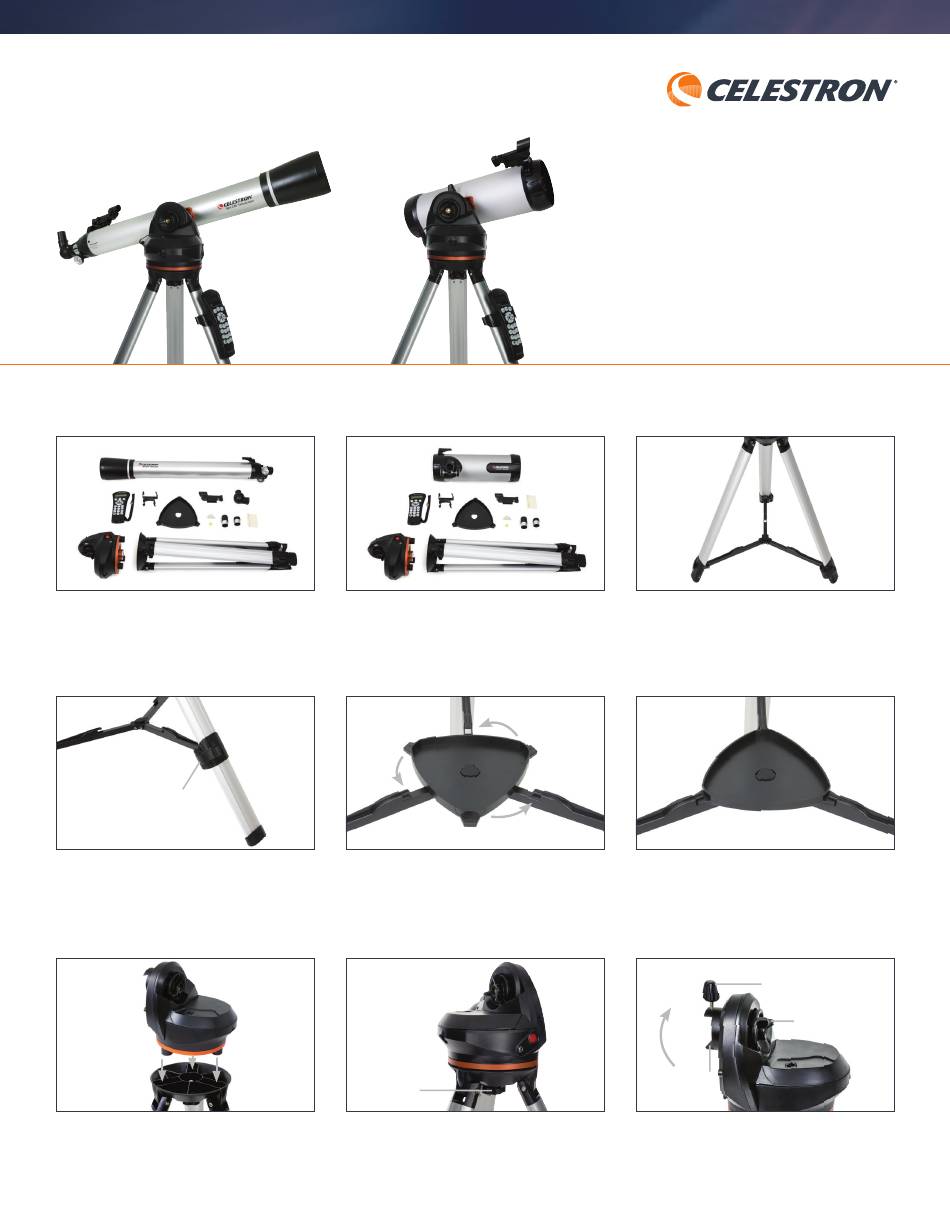

Your 60LCM/80LCM Refractor telescope includes: optical tube,
StarPointer finderscope, motorized base, tripod, accessory tray,
two eyepieces (9 mm & 25 mm), star diagonal, computerized hand
control, and instruction manual.
4
Locking
Lever
Extend tripod legs 6 to 8 inches by lifting the tripod leg locking
lever and pulling the leg to desired length and snapping down
the lever.
7
Place the motorized base on top of the tripod making sure that the
three round feet rest on the round flat pads on the inside of the
tripod head.
NEWTONIAN
2
Your 114LCM Newtonian telescope includes: optical tube,
StarPointer finderscope, motorized base, tripod, accessory tray,
two eyepieces (9 mm & 25 mm), computerized hand control, and
instruction manual.
5
To attach the accessory tray, line up notches and turn clockwise
until tray tabs lock into place with the tripod brackets.
8
Mounting
Screw
Thread the mounting screw into the hole at the bottom of the
motorized base. Tighten screw to secure the base to the tripod.
L C M
T E L E S C O P E S E R I E S
REFRACTORS: 60LCM #22050 / 80LCM #22051
NEWTONIAN: 114LCM #31150
QUESTIONS OR PROBLEMS WITH SET-UP?
CONTACT CELESTRON TECHNICAL SUPPORT: 310.803.5955
Q U I C K S E T - U P G U I D E
3
Assemble tripod by spreading the legs out until the center leg
brace is fully extended.
6
Properly assembled, the accessory tray should appear as
pictured above.
9
Telescope
Mounting Knob
Altitude Lock
Tube
Clamp
Loosen the altitude lock and rotate the tube clamp so that the
telescope mounting knob is positioned on the top of the base. Then
tighten the altitude lock by hand, but don't over tighten.
