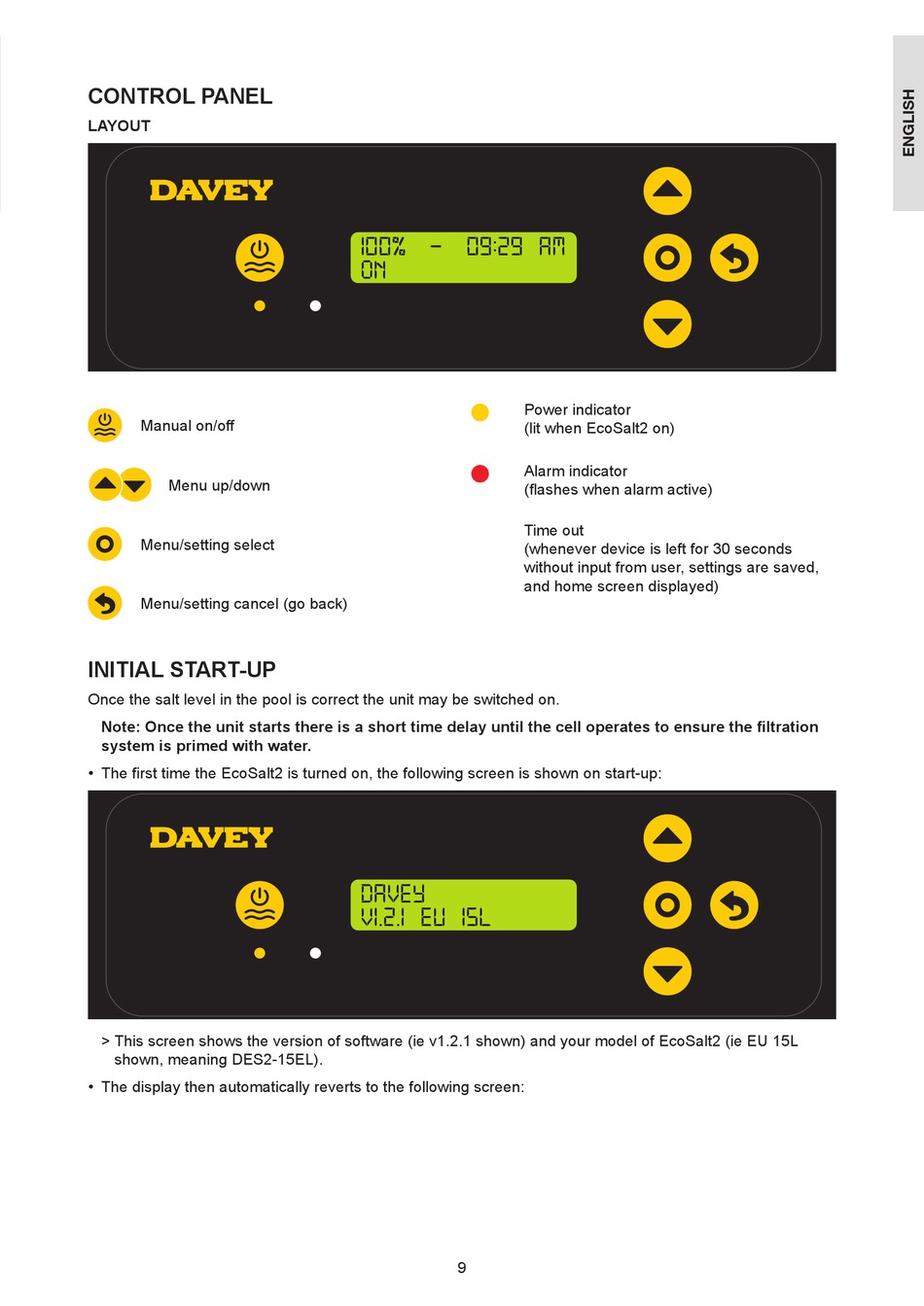

CONTROL PANEL

LAYOUT
Manual on/off
Menu up/down
Menu/setting select
Menu/setting cancel (go back)

INITIAL START-UP

Once the salt level in the pool is correct the unit may be switched on.
Note: Once the unit starts there is a short time delay until the cell operates to ensure the filtration
system is primed with water.
• The first time the EcoSalt2 is turned on, the following screen is shown on start-up:
> This screen shows the version of software (ie v1.2.1 shown) and your model of EcoSalt2 (ie EU 15L
shown, meaning DES2-15EL).
• The display then automatically reverts to the following screen:
100% – 09:29 AM
ON
Power indicator
(lit when EcoSalt2 on)
Alarm indicator
(flashes when alarm active)
Time out
(whenever device is left for 30 seconds
without input from user, settings are saved,
and home screen displayed)
DAVEY
V1.2.1 EU 15L
9
