- Seite 1 DES-1218R/DES-1226R 10/100/1000 Mbps Switch with optional Gigabit module User’ s Guide First Edition (July 2001) 651S1226R015 Printed In Taiwan RECYCLABLE...
-
Seite 2: Wichtige Sicherheitshinweise
Wichtige Sicherheitshinweise 1. Bitte lesen Sie sich diese Hinweise sorgfältig durch. 2. Heben Sie diese Anleitung für den spätern Gebrauch auf. 3. Vor jedem Reinigen ist das Gerät vom Stromnetz zu trennen. Vervenden Sie keine Flüssig- oder Aerosolreiniger. Am besten dient ein angefeuchtetes Tuch zur Reinigung. 4. - Seite 3 The one-year period of warranty on complete products applies on condition that the product's Registration Card is filled out and returned to a D-Link office within ninety (90) days of purchase. A list of D-Link offices is provided at the back of this manual, together with a copy of the Registration Card. Failing such timely registration of purchase, the warranty period shall be limited to 90 days.
- Seite 4 D-Link's applicable product documentation, will be corrected.
-
Seite 5: Trademarks
D-Link Offices for Registration and Warranty Service The product's Registration Card, provided at the back of this manual, must be sent to a D-Link office. To obtain an RMA number for warranty service as to a hardware product, or to obtain warranty service as to a software product, contact the D-Link office nearest you. -
Seite 6: Fcc Warning
FCC Warning This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Seite 7: Inhaltsverzeichnis
THERNET ECHNOLOGY ...........................1 IGABIT THERNET ECHNOLOGY ..............................2 WITCHING ECHNOLOGY DES-1218R/DES-1226R 10/100/1000 M ......................2 WITCH General Description of Switch............................2 Performance features ................................3 Ports.....................................3 Optional 2-Port Gigabit Extension Modules .......................4 1000BASE-SX (SC) Module (DES-132G)........................4 1000BASE-LX (SC) Module (DES-132GL) ........................4 GBIC Gigabit Ethernet Module (DES-132GB) ......................4 1000BASE-T Module (DES-132T)..........................4... - Seite 8 VLAN Group..................................17 MANAGEMENT CONCEPTS ............................18 .................................18 RUNK ROUPS IEEE 802.1 .................................19 RIORITY VLAN ....................................19 Port-based VLANs ................................20 VLAN Segmentation ..............................20 VLAN and Trunk Groups ............................20 TECHNICAL SPECIFICATIONS ..........................21 CABLES AND CONNECTORS........................... 23 CABLE LENGTHS ................................. 24...
-
Seite 9: About This Guide
For simplicity, this documentation uses the terms “Switch” (first letter upper case) to refer to both the DES-1218R and DES-1226R Ethernet Switch, and “switch” (first letter lower case) to refer to all Ethernet switches, including the DES-1218R and DES-1226R. When a distinction between the two models is necessary, the model number will be given to distinguish between them. -
Seite 11: Introduction
DES-1218R/DES-1226R 10/100/1000 Mbps Ethernet Switch User’ s Guide NTRODUCTION This section describes the features of the Switch, as well as giving some background information about Fast Ethernet, Gigabit Ethernet, and switching technology. Fast Ethernet Technology The growing importance of LANs and the increasing complexity of desktop computing applications are fueling the need for high performance networks. -
Seite 12: Switching Technology
The Switch is equipped with unshielded twisted-pair (UTP) cable ports providing dedicated 10 or 100 Mbps bandwidth. The DES-1218R has 16 UTP ports and the DES-1226R has 24 UTP ports. Each model includes 16 or 24 MDI-X/MDI-II convertible ports that can be used for uplinking to another switch. -
Seite 13: Performance Features
♦ Address table: Support addresses up to 32K (can be upgraded to 64K) ♦ Buffer size: 2 Megabytes SBRAM for 16 10/100 + 2 Giga (or 100Base-FX) ports (DES-1218R) 2 Megabytes SBRAM for 24 10/100 + 2 Giga (or 100Base-FX) ports (DES-1226R) ♦... -

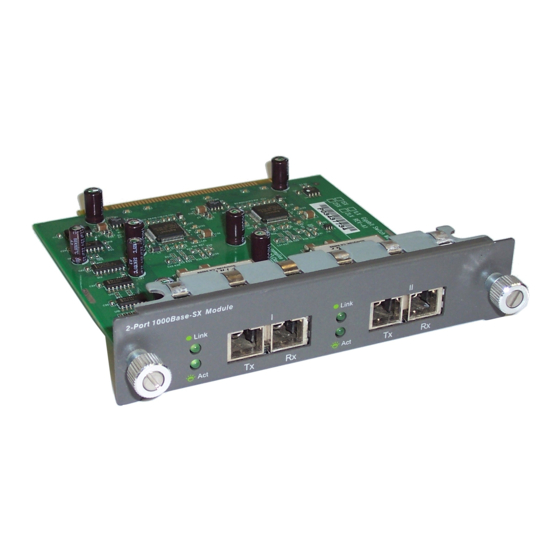

Seite 14: Optional 2-Port Gigabit Extension Modules
♦ Support Auto-Negotiation and Force 1000-Full mode ♦ IEEE 802.3x compliant Flow Control support for full-duplex Note: This module requires using a GBIC converter. Contact your D-Link vendor for either the DGS-701 1000BASE-SX GBIC FTR-8519-3A (Finisar) or DGS-702 1000BASE-LX GBIC FTR-1319-3A (Finisar). -
Seite 15: 100Base-Fx Module (Des-132Fl) (15Km)
DES-1218R/DES-1226R 10/100/1000 Mbps Ethernet Switch User’ s Guide ♦ Support Full-duplex operation only ♦ IEEE 802.3x compliant Flow Control support for full-duplex 100BASE-FX Module (DES-132FL) (15Km) ♦ Two 100BASE-FX (with SC type connector) ports ♦ Fully compliant with IEEE802.3u ♦ Support Full-duplex operation only... -
Seite 16: Unpacking And Setup
♦ Four rubber feet with adhesive backing ♦ RS-232 Console Cable If any item is found missing or damaged, please contact your local D-Link Reseller for replacement. Setup The site where you install the Switch may greatly effect its performance. Please follow these guidelines for setting up the Switch. -
Seite 17: Desktop Or Shelf Installation
DES-1218R/DES-1226R 10/100/1000 Mbps Ethernet Switch User’ s Guide Desktop or Shelf Installation When installing the Switch on a desktop or shelf, the rubber feet included with the Switch should first be attached. Attach these cushioning feet on the bottom at each corner of the device. Allow enough ventilation space between the Switch and any other objects in the vicinity. -
Seite 18: Power On
DES-1218R/DES-1226R 10/100/1000 Mbps Ethernet Switch User’ s Guide Figure 2-3. Installing Switch in a rack Power on Plug one end of the AC power cord into the power connector of the Switch and the other end into the local power source outlet. -
Seite 19: Identifying External Components
The front panel of the Switch consists of LED indicators for power and for each port, an RS-232 communication port, 16 (DES-1218R) or 24 (DES-1226R) 10/100 Mbps twisted-pair ports, and a slot for installing either an optional 2-port Gigabit Ethernet module or a 1- or 2-port 100BASE module. -
Seite 20: Rear Panel
DES-1218R/DES-1226R 10/100/1000 Mbps Ethernet Switch User’ s Guide Rear Panel The rear panel contains the AC power connector. The AC power connector is a standard three- pronged connector that supports the power cord. Plug-in the female connector of the provided power cord into this socket, and the male side of the cord into a power outlet. - Seite 21 DES-1218R/DES-1226R 10/100/1000 Mbps Ethernet Switch User’ s Guide ♦ 10/100 Mbps On the upper right corner of each twisted pair port, this LED will light when the connection speed is operating at 100 Mbps. An unlit LED indicates a connection speed of 10 Mbps.
-
Seite 22: Connecting The Switch
An end node can be connected to the Switch via a two-pair Category 3, 4, or 5 UTP/STP cable. The end node should be connected to any of the ports (1x - 16x on the DES-1218R or 1x – 24x on the DES- 1226R) of the Switch. -
Seite 23: Connecting To Network Backbone Or Server
DES-1218R/DES-1226R 10/100/1000 Mbps Ethernet Switch User’ s Guide ♦ A 100BASE-TX hub or switch can be connected to the Switch via a two-pair Category 5 UTP/STP cable. Figure 4-2. Switch connected to a port on a hub or switch using either a straight or crossover cable–any normal cable is fine... -
Seite 24: Switch Management
DES-1218R/DES-1226R 10/100/1000 Mbps Ethernet Switch User’ s Guide WITCH ANAGEMENT This chapter discusses the features used to manage the Switch, and explains important points regarding these features. Configuring the Switch is discussed in detail. Local Console Management Local console management involves the administration of the Switch via a direct connection to the RS-232 DCE console port. -
Seite 25: User Interface
DES-1218R/DES-1226R 10/100/1000 Mbps Ethernet Switch User’ s Guide Figure 5-1. Opening management console screen Once you have connected to the console port on the Switch, you should see a window like that pictured in Figure 5-1. If the screen appears but is blank, press “Control” and “r” (Ctrl+r) simultaneously to refresh the screen. -
Seite 26: Flow Control
DES-1218R/DES-1226R 10/100/1000 Mbps Ethernet Switch User’ s Guide When Auto is chosen, NWay will negotiate three settings: ♦ Speed – 10/100/1000 ♦ Duplex - Full/Half ♦ IEEE 802.3x Flow Control – Enable/Disable Flow Control Toggles flow control Enable or Disable. It is useful during periods of heavy network activity when the Switch’s buffers can receive too much traffic and fill up faster than the Switch can forward the... -
Seite 27: Vlan Group
DES-1218R/DES-1226R 10/100/1000 Mbps Ethernet Switch User’ s Guide Figure 5-2. Example of Priority Queue Assignments VLAN Group Up to 18 (or 26) port-based virtual LAN (VLAN) groups can be designated for the Switch. Individual ports can exist in two or more VLANs simultaneously, so VLAN groups can overlap or intersect. For a more detailed discussion of VLANs, see Chapter 6. -
Seite 28: Management Concepts
Port trunk groups are used to combine a number of ports together to make a single high-bandwidth data pipeline. The DES-1218R and the DES-1226R can support up to 3 trunk groups. With 2 to 4 ports in each group, a potential bit rate of 800 Mbps can be achieved. -
Seite 29: Ieee 802.1P Priority
DES-1218R/DES-1226R 10/100/1000 Mbps Ethernet Switch User’ s Guide packets in a data stream to arrive in the same order they were sent. A trunk connection can be made with any other switch that maintains host-to-host data streams over a single trunk port. -
Seite 30: Port-Based Vlans
DES-1218R/DES-1226R 10/100/1000 Mbps Ethernet Switch User’ s Guide Another benefit of VLANs is that you can change the network topology without physically moving stations or changing cable connections. Stations can be ‘moved’ simply by changing VLAN settings from one VLAN (the sales VLAN, for example) to another VLAN (the marketing VLAN). This allows VLANs to accommodate network moves, changes and additions with the utmost flexibility. -
Seite 31: Technical Specifications
DES-1218R/DES-1226R 10/100/1000 Mbps Ethernet Switch User’ s Guide ECHNICAL PECIFICATIONS General Standards: IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE802.3z 1000BASE-SX/1000BASE-LX IEEE802.3ab 1000BASE-T IEEE 802.3x Flow Control IEEE 802.1p Priority Queue ANSI/IEEE Std 802.3 NWay auto-negotiation Protocol: CSMA/CD... - Seite 32 Transmission Method: Store-and-forward RAM Buffer: DES-1218R: 2 Mbytes SBRAM for 16 10/100 + 2 Giga ports DES-1226R: 2 Mbytes SBRAM for 24 10/100 + 2 Giga ports MAC Address Table: Supports addresses up to 32K (can be upgraded to 64K)
-
Seite 33: Cables And Connectors
DES-1218R/DES-1226R 10/100/1000 Mbps Ethernet Switch User’ s Guide ABLES AND ONNECTORS When connecting the Switch to another switch, a bridge or hub, a normal cable is necessary. Please review these products for matching cable pin assignment. The following diagrams and tables show the standard RJ-45 receptacle/connector and their pin assignments. -
Seite 34: Cable Lengths
DES-1218R/DES-1226R 10/100/1000 Mbps Ethernet Switch User’ s Guide ABLE ENGTHS Use the following table to as a guide for the maximum cable lengths. MHz/km Maximum Standard Media Type Rating Distance 1000BASE-SX 50/125µm Multimode Fiber 500 Meters 50/125µm Multimode Fiber 550 Meters 62.5/125µm Multimode Fiber... - Seite 35 E-MAIL: service@dlink.india.com Italy D-Link Mediterraneo Srl/D-Link Italia Via Nino Bonnet n. 6/b, 20154, Milano, Italy TEL: 39-02-2900-0676 FAX: 39-02-2900-1723 URL: www.dlink.it E-MAIL: info@dlink.it Japan D-Link Japan 10F, 8-8-15 Nishi-Gotanda, Shinagawa-ku, Tokyo 141, Japan TEL: 81-3-5434-9678 FAX: 81-3-5434-9868 URL: www.d-link.co.jp E-MAIL: kida@d-link.co.jp...
