For the fixing of the pipework, the "Multiblock T-RTL"
is supplied with a mounting aid with suitable diaphragm
tailpipes. After having created the wall channels, the
mounting aid has to be screwed precisely onto the
unplastered wall (screws are not included in the delivery).
During pipework installation please observe that pipes
must run in parallel. The protruding pipes have to be
fixed in the mounting aid with the enclosed diaphragm
tailpipes (illustr. 8):
1. Slip diaphragm tailpipe onto the protruding pipe.
2. Insert the diaphragm tailpipe into the cut-out of
the mounting aid and push it down until stop.
The walls are plastered now. The wall channel must
not be plastered as the pipework for surface temperature
balance will only be installed after all plastering has
been completed. The pipework for surface temperature
balance is fixed in the mounting aid in the same way
(illustr. 8).
NOTICE
Supply and return pipe connection
To guarantee a perfect function of the "Multiblock
T-RTL", the supply and return pipe connections
must be strictly observed.

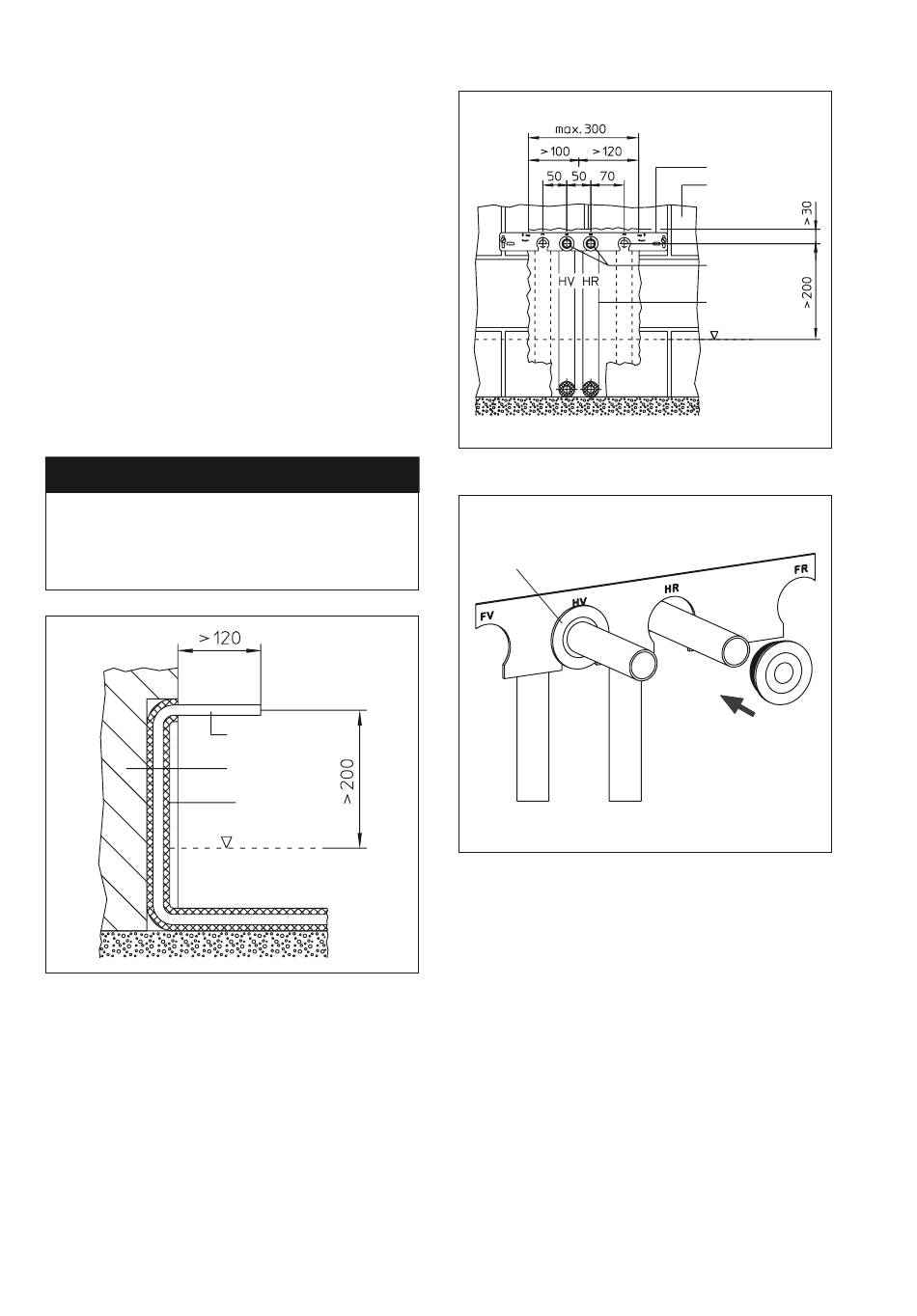

Illustr. 6 Illustrated section, heating circuit connection
10
Pipework
Brickwork
Insulation
Upper edge
finished floor
Illustr. 7 Wall view, heating circuit connection
2.
Illustr. 8 Wall view, mounting aid
6.2 Installation of block for initial operation and
radiator
The radiator is mounted with due consideration of the
installations dimensions (illustr. 3) and the designed
wall construction (e.g. tiles). This way, a perfect
alignment of the block for initial operation is guaranteed.
Cut pipes for the heating circuit to length. Screw the
block for initial operation to the radiator tension-free
and connect to the pipework of the heating circuit by
use of compression fittings.
Supply to connection "HV" and return to connection
"HR".
Mounting aid
Brickwork
Pipework,
heating circuit
Insulation
Upper edge
finished floor
1.
