EC558000

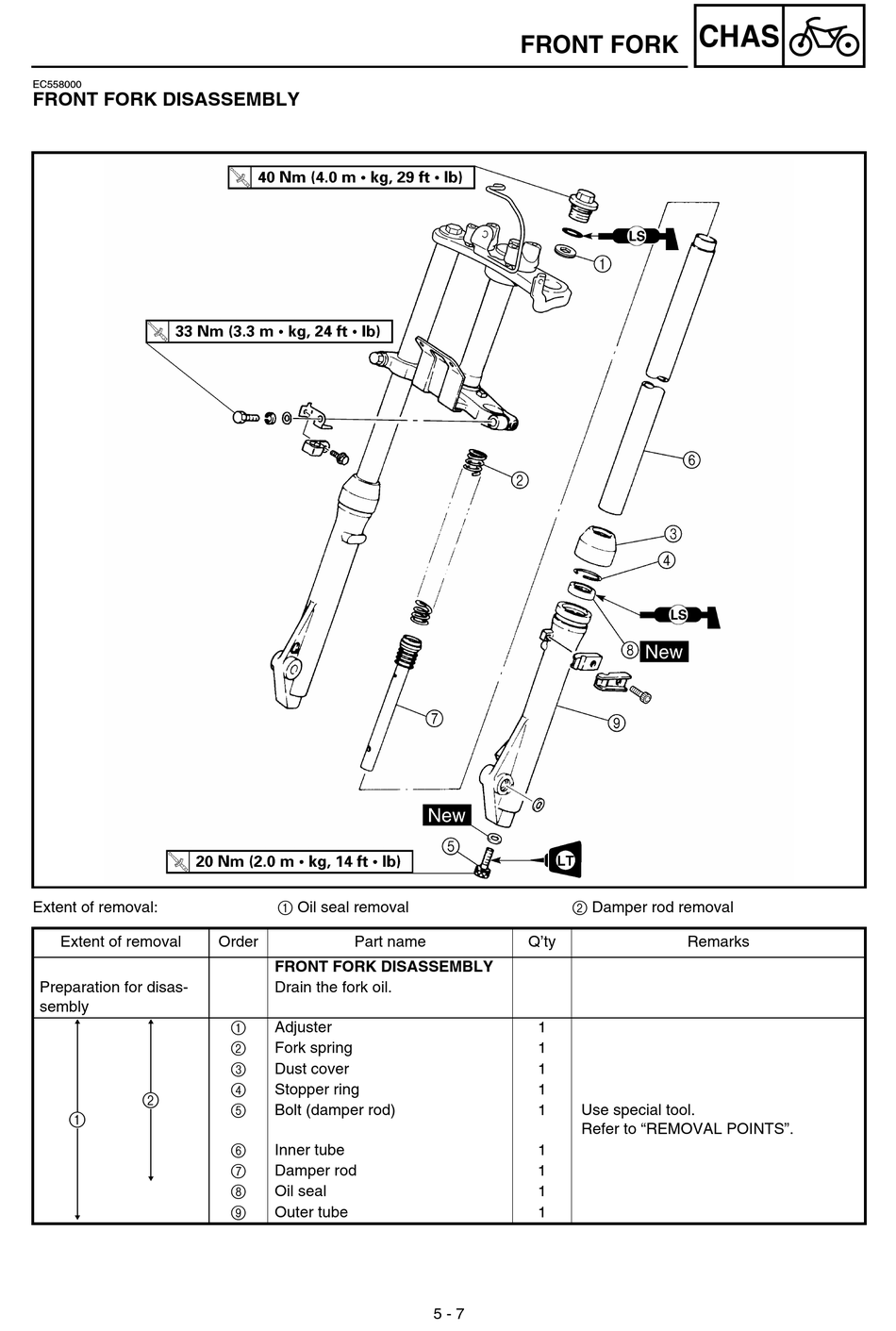

FRONT FORK DISASSEMBLY
Extent of removal:
Extent of removal
Preparation for disas-
sembly
2
1
1 Oil seal removal
Order Part name
FRONT FORK DISASSEMBLY
Drain the fork oil.
1 Adjuster
2 Fork spring
3 Dust cover
4 Stopper ring
5 Bolt (damper rod)
6 Inner tube
7 Damper rod
8 Oil seal
9 Outer tube
FRONT FORK
2 Damper rod removal
Q'ty
1
1
1
1
1 Use special tool.
Refer to "REMOVAL POINTS".
1
1
1
1
5 - 7
CHAS
Remarks
