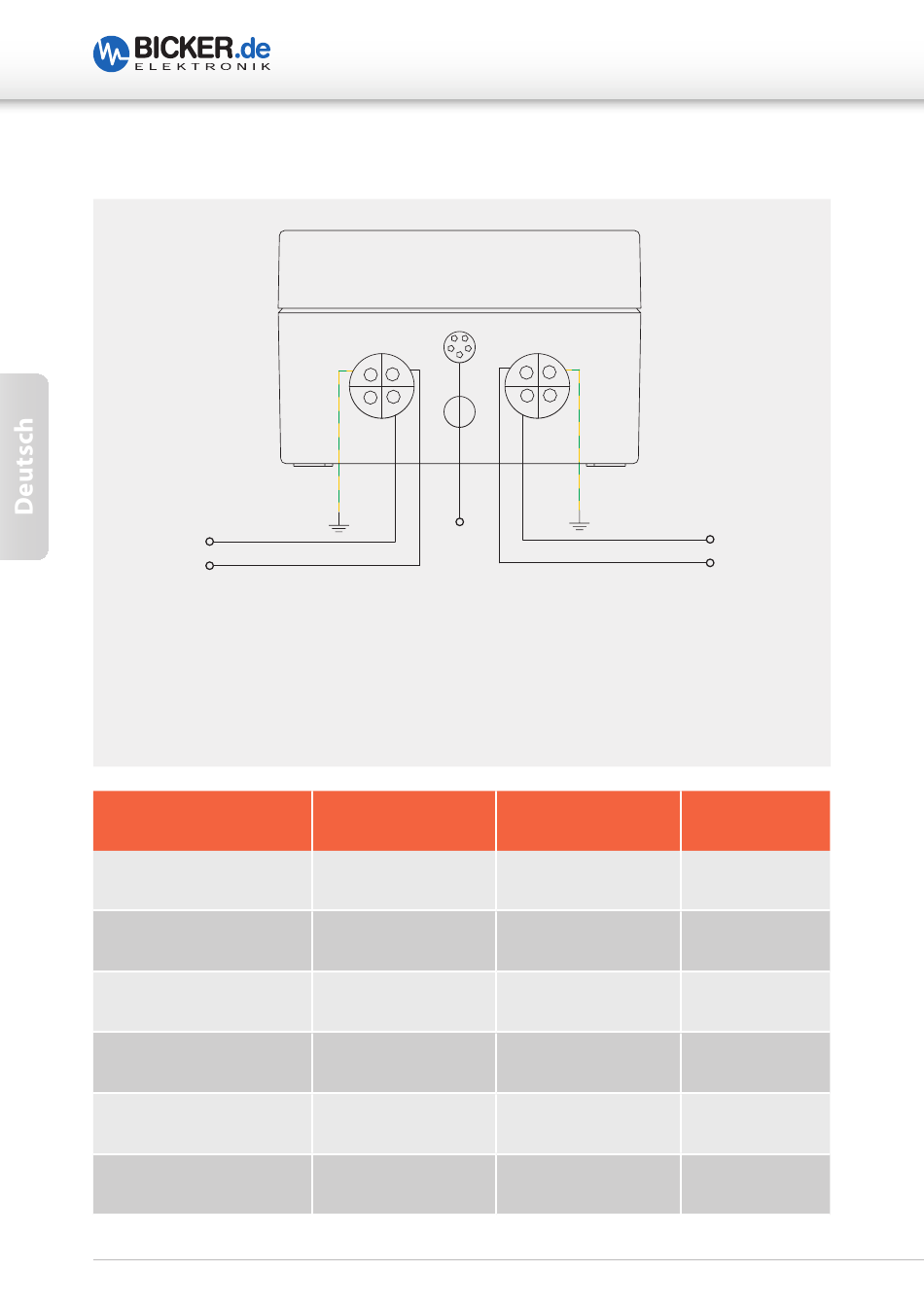

6 Anschlussbeschreibung UPSI-IP-1-Serie
IN– (black 2)
IN+ (black 1)
DC connector 1
1 Input (+)
2 Input (–)
3 n.c.
4 FG
Connector
DC connector 1
(case side) for V
DC connector 2
(case side) for V
USB interface connector
(case side)
DC counter connector 1
(cable side)
DC counter connector 2
(cable side)
USB interface counter
connector (cable side)
8
DC connector 1
1
4
2
3
DC connector 2
1 Output (+)
2 Output (–)
3 n.c.
4 FG
Description
RD24 flange plug,
poles 3+PE
IN
RD24 flange socket,
poles 3+PE
OUT
Snap-in flange
socket, 5 poles
RD24 cable socket,
poles 3+PE
RD24 cable plug,
poles 3+PE
Snap-in cable plug,
5 poles
USB interface connector
1 2
DC connector 2
5 3
4
4
1
2 3
USB
USB interface connector
1 Data (–)
2 +5 V
3 GND
4 Shielding
5 Data (+)
Manufacturer
Binder Connector
Binder Connector
Binder Connector
Binder Connector
Binder Connector
Binder Connector
UPSI-IP-1-Serie | UPSI- IP-2-Serie
OUT– (black 2)
OUT+ (black 1)
Part No.
09 4223 150 04
09 4224 00 04
99 9116 00 05
99 0210 00 04
99 0209 00 04
99 9113 02 05
