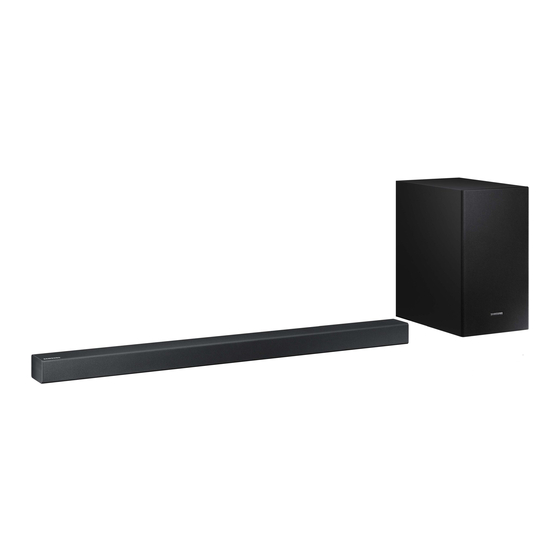

Samsung HW-R450 Handbuch
Vorschau ausblenden Andere Handbücher für HW-R450:
Inhaltsverzeichnis

Werbung

Verfügbare Sprachen

Verfügbare Sprachen

FULL MANUAL
HW-R450
Imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service, please register
your product at www.samsung.com/register

Werbung

Inhaltsverzeichnis
loading

Inhaltszusammenfassung für Samsung HW-R450

  • Seite 1 FULL MANUAL HW-R450 Imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/register...
  • Seite 2: Safety Information

    BLADE OF PLUG TO WIDE SLOT, FULLY Refer to the table below for an explanation of INSERT. symbols which may be on your Samsung product. • This apparatus shall always be connected to a AC outlet with a protective grounding connection.
  • Seite 3 It is for personal use only. Condensation You can access the FULL MANUAL on may occur if your product has been stored in Samsung’s on-line customer support centre by cold temperatures. If transporting the unit scanning the QR code. To see the manual on...
  • Seite 4: Inhaltsverzeichnis

    CONTENTS Checking the Components Inserting Batteries before using the Remote Control (AA batteries X 2) ------------------------- Product Overview Front Panel / Right Side Panel of the Soundbar ------------------------- Bottom Panel of the Soundbar ------------------------- Connecting the Soundbar Connecting Electrical Power ------------------------- Connecting the Soundbar to the Subwoofer -------------------------...
  • Seite 5 Connecting a Mobile Device Connecting via Bluetooth ------------------------- Using the Samsung Audio Remote App ------------------------- – Installing the Samsung Audio Remote App ------------------------- – Launching the Samsung Audio Remote App ------------------------- Using the Remote Control How to Use the Remote Control...
  • Seite 6: Checking The Components

    • The power components are labelled (1, 2, 3). For more information about power connections, see page 5. • To purchase additional components or optional cables, contact a Samsung Service Centre or Samsung Customer Care. • Depending on the region, the appearance of the AC plug may differ from the plug displayed above, or it may be supplied integrated with the AC/DC adapter.
  • Seite 7: Product Overview

    02 PRODUCT OVERVIEW Front Panel / Right Side Panel of the Soundbar Position the product so that the SAMSUNG logo is located on the top. Right Side of the Soundbar Display Displays the product’s status and current mode. +/- (Volume) Button Adjusts the volume.
  • Seite 8: Bottom Panel Of The Soundbar

    Bottom Panel of the Soundbar DIGITAL AUDIO IN (OPTICAL) USB (5V 0.5A) DC 19V AUX IN DIGITAL AUDIO IN DC 19V (OPTICAL) USB (5V 0.5A) AUX IN DIGITAL AUDIO IN (OPTICAL) Connect to the digital (optical) output of an external device. USB (5V 0.5A) Connect a USB device here to play music files on the USB device through the Soundbar.
  • Seite 9: Connecting The Soundbar

    03 CONNECTING THE SOUNDBAR Connecting Electrical Power Use the power components (1, 2, 3) to connect the Subwoofer and Soundbar to an electrical outlet in the following order: 1 Connect the power cord to the Subwoofer. 2 Connect the AC plug to the adapter. 3 Connect the power adapter to the Soundbar and then to a wall socket.
  • Seite 10: Connecting The Soundbar To The Subwoofer

    Soundbar unit is connected properly. Connect again. See the instructions for Connection failed manual connection on page 7. Red and See the contact information for the Blinking Malfunction blue Samsung Service Centre in this manual. ENG - 6...
  • Seite 11: Manually Connecting The Subwoofer If Automatic Connection Fails

    Manually connecting the Subwoofer if automatic connection fails Before performing the manual connection procedure below: • Check whether the power cables for the Soundbar and subwoofer are connected properly. • Make sure that the Soundbar is turned on. 1. Press and hold ID SET on the rear of the subwoofer for at least 5 seconds. •...
  • Seite 12: Connecting An Swa-8500S (Sold Separately) To Your Soundbar

    Wireless Receiver Module (sold separately) is clear of any obstructions. Connecting an SWA-8500S (Sold Separately) to your Soundbar Expand to true wireless surround sound by connecting the Samsung Wireless Rear Speaker Kit (SWA-8500S, sold separately) to your Soundbar. 1. Connect the Wireless Receiver Module to 2 Surround Speakers.
  • Seite 13 2. Check the standby status of the Wireless Receiver Module after plugging it into an electrical outlet. • The LINK LED indicator (blue LED) on the Wireless Receiver Module blinks. If the LED does not blink, press the ID SET button on the back of the Wireless Receiver Module with a pen tip for 5~6 seconds until the LINK LED indicator blinks (in Blue).
  • Seite 14: Connecting To Your Tv

    04 CONNECTING TO YOUR TV Hear TV sound from your Soundbar through wired or wireless connections. • When the Soundbar is connected to selected Samsung TVs, the Soundbar can be controlled using the TV’s remote control. – This feature is supported by 2017 and later Samsung Smart TVs that support Bluetooth when you connect the Soundbar to the TV using an optical cable.
  • Seite 15: Method 2. Connecting Wirelessly

    2. Select Bluetooth mode on the TV. (For more information, see the TV’s manual.) 3. Select “[AV] Samsung Soundbar R4-Series” from the list on TV’s screen. An available Soundbar is indicated with “Need Pairing” or “Paired” on the TV’s Bluetooth device list.
  • Seite 16 If the device fails to connect • If a previously connected Soundbar listing (e.g. “[AV] Samsung Soundbar R4-Series”) appears in the list, delete it. • Then repeat steps 1 through 3. NOTE • After you have connected the Soundbar to your TV the first time, use the “BT READY” mode to reconnect.
  • Seite 17: Connecting An External Device

    05 CONNECTING AN EXTERNAL DEVICE Connect to an external device via a wired or wireless network to play the external device’s sound through the Soundbar. Connecting using an Optical or Analogue Audio (AUX) Cable BD / DVD player / Set-top box / Right Side of the Soundbar Game console DIGITAL AUDIO IN...
  • Seite 18: Connecting A Usb Storage Device

    2.0 USB jack (Type A) on the other end to the micro USB jack on your Soundbar. • The Micro USB to USB adapter cable is sold separately. To purchase, contact a Samsung Service Centre or Samsung Customer Care.
  • Seite 19 File Format Type Compatibility list Extension Codec Sampling Rate Bitrate *.mp3 MPEG 1 Layer2 16kHz ~ 48kHz 80kbps~320kbps MPEG 1 Layer3 16kHz ~ 48kHz 80kbps~320kbps MPEG 2 Layer3 16kHz ~ 48kHz 80kbps~320kbps MPEG 2.5 Layer3 16kHz ~ 48kHz 80kbps~320kbps *.wma Wave_Format_MSAudio1 16kHz ~ 48kHz 56kbps~128kbps...
  • Seite 20: Connecting A Mobile Device

    Soundbar for more than 5 seconds to display “BT PAIRING”. 2. On your device, select “[AV] Samsung Soundbar R4-Series” from the list that appears. • When the Soundbar is connected to the Bluetooth device, [Bluetooth Device Name] → “BT”...
  • Seite 21 • You cannot connect the Soundbar to a Bluetooth device that supports only the HF (Hands Free) function. • Once you have paired the Soundbar to a Bluetooth device, selecting “[AV] Samsung Soundbar R4-Series” from the device’s scanned devices list will automatically change the Soundbar to “BT”...
  • Seite 22 Disconnecting the Bluetooth device from a Soundbar You can disconnect a Bluetooth device from the Soundbar. For instructions, see the Bluetooth device’s user manual. • The Soundbar will be disconnected. • When the Soundbar is disconnected from the Bluetooth device, the Soundbar will display “BT DISCONNECTED”...
  • Seite 23: Using The Samsung Audio Remote App

    Market search : Samsung Audio Remote Launching the Samsung Audio Remote App To launch and use the Samsung Audio Remote app, touch the Audio Remote icon on your smart device, and then follow the directions on the screen. Audio Remote •...
  • Seite 24: Using The Remote Control

    08 USING THE REMOTE CONTROL How to Use the Remote Control Turns the Soundbar on and off. Power Press to select a source connected to the Soundbar. PAIR • BT PAIRING mode Source To turn on “BT PAIRING” mode, change the source to “BT”...
  • Seite 25 Press the PAIR button. “BT PAIRING” appears in the Soundbar’s display. You can connect the Soundbar to a new Bluetooth device in this mode by selecting the PAIR Soundbar from the Bluetooth device's search list. Bluetooth PAIR SOUND MODE Press the p button to pause a music file temporarily. When you press the button again, the music file plays.
  • Seite 26 • Volume Restriction function To protect your hearing, the Volume Restriction function restricts the volume to 20 if you turn on the Soundbar when the volume is set higher than 20. – The default value for the Volume Restriction function is Off. You must turn it on to activate it.
  • Seite 27: Adjusting The Soundbar Volume With A Tv Remote Control

    The default mode for this function is – Each time you push the WOOFER button control by a Samsung TV remote. If your TV is not up and hold it for 5 seconds, the mode a Samsung TV, follow the directions below to switches in the following order: change the settings of this function.
  • Seite 28: Using The Hidden Buttons (Buttons With More Than One Function)

    2.0 ch 2.1 ch 4.1 ch SMART 5.1 ch 2.1 ch 4.1 ch • The Samsung Wireless Rear Speaker Kit can be purchased separately. To purchase a Kit, contact the WOOFER vendor you purchased the Soundbar from. ENG - 24...
  • Seite 29: Installing The Wall Mount

    09 INSTALLING THE Wallmount Components WALL MOUNT Wall Mount Guide Installation Precautions • Install on a vertical wall only. • Do not install in a place with high Holder-Screw Screw temperature or humidity. • Verify whether the wall is strong enough to support the product’s weight.
  • Seite 30 2. Align the Wall Mount Guide’s Centre Line 5. Push a screw (not supplied) through each with the centre of your TV (if you are Holder-Screw, and then screw each screw mounting the Soundbar below your TV), and firmly into a support screw hole. then fix the Wall Mount Guide to the wall using tape.
  • Seite 31: Detaching The Soundbar From The Wall

    Detaching the Soundbar from • The left and right mounts are different shapes. Make sure to position them the Wall correctly. 1. To separate the Soundbar from the wall mount, push it in the direction of arrow, tilt it up slightly, and then pull it away from the Wall Mount R Wall Mount L wall as shown.
  • Seite 32: Software Update

    Soundbar. For more information about how 3. Save the downloaded software to a USB to download update files, go to the Samsung stick and select “Extract Here” to unzip the Electronics website at folder.
  • Seite 33: If Update Is Not Displayed

    6. When the update finishes, the Soundbar • Mac OS users should use MS-DOS (FAT) as the turns off. Press the button on the remote USB format. control for 5 seconds. “INIT” appears on the • Updating via USB may not be available, display and then the Soundbar turns off.
  • Seite 34: Troubleshooting

    11 TROUBLESHOOTING Before seeking assistance, check the following. The unit will not turn on. Is the power cord plugged into the outlet? ; Connect the power plug to the outlet. A function does not work when the button is pressed. Is there static electricity in the air? ;...
  • Seite 35: Licence

    12 LICENCE 13 OPEN SOURCE LICENCE NOTICE To send inquiries and requests regarding open sources, contact Samsung via Email Manufactured under license from Dolby (oss.request@samsung.com). Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby 14 IMPORTANT Laboratories.
  • Seite 36: Specifications And Guide

    Press and hold the SOUND MODE button for Bluetooth more than 5 seconds to turn off Bluetooth Port deactivation method Power function. NOTES • Samsung Electronics Co., Ltd reserves the right to change the specifications without notice. • Weight and dimensions are approximate. ENG - 32...
  • Seite 37 • Hereby, Samsung Electronics, declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.samsung.com go to Support > Search Product Support and enter the model name.
  • Seite 38: Sicherheitsinformationen

    In der nachstehenden Tabelle finden Sie eine DES STECKERS AN DEM BREITEN Erklärung zu Symbolen, die sich möglicherweise STECKPLATZ AUS, UND STECKEN SIE DEN auf Ihrem Samsung-Produkt befinden. STECKER VOLL EIN. • Dieses Gerät darf nur an eine Netzsteckdose ACHTUNG mit Schutzerdung angeschlossen werden.
  • Seite 39 Sie können auf die VOLLSTÄNDIGES Fehlfunktionen des Geräts von der HANDBUCH im Online-Kundendienstcenter Stromversorgung. Ihr Produkt ist nicht für von Samsung durch Scannen des QR-Codes den gewerblichen Einsatz vorgesehen. zugreifen. Um die Gebrauchsanweisung auf Verwenden Sie dieses Produkt nur für den Ihrem PC oder Mobilgerät anzusehen, laden...
  • Seite 40 INHALT Überprüfen der Komponenten Einlegen der Batterien vor der Verwendung der Fernbedienung (AA-Batterien X 2) ------------------------- Produktübersicht Vorderseite / Rechte Seite der Soundbar ------------------------- Unterseite der Soundbar ------------------------- Anschliessen der Soundbar Stromanschluss ------------------------- Verbinden der Soundbar mit dem Subwoofer ------------------------- –...
  • Seite 41 Anschliessen eines Mobilgeräts Anschließen per Bluetooth ------------------------- Samsung Audio Remote App verwenden ------------------------- – Installieren der Samsung Audio Remote App ------------------------- – Starten der Samsung Audio Remote App ------------------------- Verwenden der Fernbedienung So verwenden Sie die Fernbedienung ------------------------- Anpassen der Soundbar-Lautstärke mit einer TV-Fernbedienung...
  • Seite 42: Überprüfen Der Komponenten

    Stromanschlüssen finden Sie auf Seite 5. • Wenden Sie sich für den Kauf zusätzlicher Komponenten oder optionaler Kabel an ein Servicezentrum oder den Kundendienst von Samsung. • Je nach der Region kann der AC-Stecker unterschiedlich aussehen oder er kann in den AC/DC-Adapter integriert geliefert werden.
  • Seite 43: Produktübersicht

    02 PRODUKTÜBERSICHT Vorderseite / Rechte Seite der Soundbar Positionieren Sie das Produkt so, dass sich das SAMSUNG Logo auf der Oberseite befindet. Rechte Seite der Soundbar Anzeige Zeigt den Status und den aktuellen Modus des Produkts an. +/- (Lautstärke)-Taste Stellt die Lautstärke ein.
  • Seite 44: Unterseite Der Soundbar

    Unterseite der Soundbar DIGITAL AUDIO IN (OPTICAL) USB (5V 0.5A) DC 19V AUX IN DIGITAL AUDIO IN DC 19V (OPTICAL) USB (5V 0.5A) AUX IN DIGITAL AUDIO IN (OPTICAL) An den digitalen (optischen) Ausgang eines externen Geräts anschließen. USB (5V 0.5A) Hier ein USB-Gerät anschließen, um Musikdateien auf dem USB-Gerät über die Soundbar wiederzugeben.
  • Seite 45: Anschliessen Der Soundbar

    03 ANSCHLIESSEN DER SOUNDBAR Stromanschluss Verwenden Sie die Stromkomponenten (1, 2, 3), um den Subwoofer und die Soundbar in der folgenden Reihenfolge an die Stromversorgung anzuschließen: 1 Schließen Sie das Stromkabel an den Subwoofer an. 2 Schließen Sie den AC-Stecker an die Steckdose an. 3 Schließen Sie den Netzadapter an die Soundbar und dann an eine Steckdose an.
  • Seite 46: Verbinden Der Soundbar Mit Dem Subwoofer

    Prüfen Sie, ob das Stromkabel richtig am ausgeschaltetem Soundbar-Hauptgerät angeschlossen ist. Soundbar-Hauptgerät) Verbindung Erneut verbinden. Siehe die Anweisungen zur fehlgeschlagen manuellen Verbindung auf Seite 7. Rot und Siehe die Kontaktinformationen für das Blinkend Fehlfunktion blau Samsung Servicezentrum in dem Handbuch. DEU - 6...
  • Seite 47: Manuelles Verbinden Des Subwoofers Bei Fehlschlagen Der Automatischen Verbindung

    Manuelles Verbinden des Subwoofers bei Fehlschlagen der automatischen Verbindung Vor dem Ausführen der folgenden Verbindungsschritte: • Überprüfen Sie, ob die Stromkabel der Soundbar und des Subwoofers richtig angeschlossen sind. • Stellen Sie sicher, dass die Soundbar eingeschaltet ist. 1. Halten Sie ID SET auf der Rückseite des Subwoofers mindestens 5 Sekunden lang gedrückt. •...
  • Seite 48: Vorsichtsmassnahmen

    Verbinden des SWA-8500S (separat erhältlich) mit einer Soundbar Erweitern Sie das System um echten drahtlosen Surround-Sound, indem Sie das Drahtlose Rücklautsprecherkit (SWA-8500S, separat erhältlich) von Samsung an Ihre Soundbar anschließen. 1. Verbinden Sie das drahtlose Empfangsmodul an 2 Surround-Lautsprecher. – Die Lautsprecherkabel sind farbcodiert.
  • Seite 49 2. Überprüfen Sie den Standby-Status des drahtlosen Empfangsmoduls, nachdem es an eine Steckdose angeschlossen worden ist. • Die LINK LED-Anzeige (blaue LED-Lampe) auf dem drahtlosen Empfängermodul blinkt. Wenn die LED nicht blinkt, halten Sie die Taste ID SET auf der Rückseite des drahtlosen Rücklautsprecherkits mit einer Stiftspitze 5 bis 6 Sekunden lang gedrückt, bis die LED- Verbindungsanzeige LINK auf dem drahtlosen Rücklautsprecherkit blinkt (blau).
  • Seite 50: Anschluss An Ihr Fernsehgerät

    04 ANSCHLUSS AN IHR FERNSEHGERÄT Hören Sie den TV-Ton durch kabelgebundene oder kabellose Verbindungen über Ihre Soundbar. • Wenn die Soundbar an einen ausgewählten Samsung TV angeschlossen ist, kann die Soundbar über die Fernbedienung des Fernsehers bedient werden. – Diese Funktion wird durch Samsung Smart-Fernsehermodelle von 2017 und später unterstützt, die Bluetooth unterstützen, wenn Sie die Soundbar mit einem optischen Kabel mit dem...
  • Seite 51: Methode 2. Drahtlose Verbindung

    2. Wählen Sie den Bluetooth-Modus an dem Fernseher aus. (Weitere Informationen finden Sie im Handbuch des Fernsehers.) 3. Wählen Sie „[AV] Samsung Soundbar R4-Series“ aus der Liste auf dem Bildschirm des Fernseher aus. Eine verfügbare Soundbar wird durch „Need Pairing“ oder „Paired“ auf der Bluetooth-Geräteliste des Fernsehers angezeigt.
  • Seite 52 Falls das Gerät nicht verbunden werden kann • Falls die Auflistung der zuvor verbundenen Soundbar (z. B. „[AV] Samsung Soundbar R4-Series“) in der Liste erscheint, löschen Sie sie. • Wiederholen Sie dann die Schritte 1 bis 3. HINWEIS • Nachdem Sie die Soundbar zum ersten Mal mit Ihrem Fernseher verbunden haben, verwenden Sie den Modus „BT READY“...
  • Seite 53: Verbindung Mit Einem Optischen Oder Analogen Audio (Aux)-Kabel

    05 VERBINDUNG MIT EINEM EXTERNEN GERAT HERSTELLEN Über ein kabelgebundenes oder kabelloses Netzwerk mit einem externen Gerät verbinden, um den Ton des externen Geräts über die Soundbar wiederzugeben. Verbindung mit einem optischen oder analogen Audio (AUX)-Kabel BD / DVD-Player / Set-Top-Box / Rechte Seite der Soundbar Spielkonsole DIGITAL AUDIO IN...
  • Seite 54: Verbinden Eines Usb Speichergeräts

    Ende und einer Standard-USB-2.0-Buchse (Typ A) am anderen Ende mit dem Micro-USB- Anschluss Ihrer Soundbar. • Das Micro-USB-auf-USB-Adapterkabel ist separat erhältlich. Wenden Sie sich hierzu an ein Samsung Servicezentrum oder den Kundendienst von Samsung. 2. Verbinden Sie das USB-Gerät mit der Buchse des Adapterkabels. 3. Drücken Sie die Taste (Quelle) auf der rechten Seite oder der Fernbedienung und wählen Sie...
  • Seite 55 Kompatibilitätsliste Verlängerung Codec Samplingrate Bitrate *.mp3 MPEG 1 Layer2 16kHz ~ 48kHz 80 ~ 320kbps MPEG 1 Layer3 16kHz ~ 48kHz 80 ~ 320kbps MPEG 2 Layer3 16kHz ~ 48kHz 80 ~ 320kbps MPEG 2.5 Layer3 16kHz ~ 48kHz 80 ~ 320kbps *.wma Wave_Format_MSAudio1 16kHz ~ 48kHz...
  • Seite 56: Anschliessen Eines Mobilgeräts

    3. Geben Sie Musikdateien auf dem über Bluetooth verbundenen Gerät über die Soundbar aus. Falls das Gerät nicht verbunden werden kann • Falls die Auflistung der zuvor verbundenen Soundbar (z. B. „[AV] Samsung Soundbar R4-Series“) in der Liste erscheint, löschen Sie sie.
  • Seite 57: Bluetooth Power Ein (Sound Mode)

    HF (Hands Free) Funktion unterstützen. • Nachdem Sie eine Verbindung zwischen der Soundbar und einem Bluetooth-Gerät hergestellt haben, wird durch Auswahl von „[AV] Samsung Soundbar R4-Series“ aus der Liste der gefundenen Geräte die Soundbar automatisch in den „BT“-Modus umgeschaltet.
  • Seite 58: Das Bluetooth-Gerät Von Der Soundbar Trennen

    Das Bluetooth-Gerät von der Soundbar trennen Sie können die Verbindung zwischen dem Bluetooth-Gerät und Soundbar trennen. Die Anleitung hierzu finden Sie in der Bedienungsanleitung des Bluetooth-Geräts. • Verbindung zum Soundbar wird getrennt. • Wenn die Soundbar von dem Bluetooth-Gerät getrennt ist, zeigt die Soundbar „BT DISCONNECTED“ auf der vorderen Anzeige an.
  • Seite 59: Samsung Audio Remote App Verwenden

    Samsung Audio Remote App verwenden Installieren der Samsung Audio Remote App Um die Soundbar mit Ihrem Smartphone oder Tablet sowie der Samsung Audio Remote App zu steuern, laden Sie die App aus dem Google Play Store herunter. Im Play Store suchen nach : Samsung Audio Remote...
  • Seite 60: Verwenden Der Fernbedienung

    08 VERWENDEN DER FERNBEDIENUNG So verwenden Sie die Fernbedienung Schaltet die Soundbar ein und aus. Strom Drücken Sie dies, um eine an die Soundbar angeschlossene Quelle auszuwählen. PAIR • BT PAIRING-Modus Quelle Zum Einschalten des Modus „BT PAIRING“ schalten Sie die Quelle auf den Modus „BT“ um und halten Sie dann die taste (Quelle) länger als 5 Sekunden lang gedrückt.
  • Seite 61 Drücken Sie die PAIR-Taste. Im Soundbar-Display wird „BT PAIRING“ angezeigt. In diesem Modus können Sie die Soundbar mit einem neuen Bluetooth-Gerät verbinden, PAIR indem Sie die Soundbar aus der Bluetooth-Gerätesuchliste auswählen. Bluetooth PAIR SOUND MODE Drücken Sie die p-Taste, um eine Musikdatei vorübergehend anzuhalten. Wenn Sie die Taste erneut drücken, wird die Musikdatei wiedergegeben.
  • Seite 62 • Lautstärkebeschränkungsfunktion Um Ihr Gehör zu schützen, beschränkt die Lautstärkebegrenzungsfunktion die Lautstärke auf 20, wenn Sie die Soundbar einschalten und die Lautstärke höher als 20 eingestellt ist. – Der Standardwert für die Lautstärkebegrenzungsfunktion ist Aus. Sie müssen sie einschalten, um sie zu aktivieren. –...
  • Seite 63: Anpassen Der Soundbar-Lautstärke Mit Einer Tv-Fernbedienung

    (Steuerung über eine mit einer TV-Fernbedienung Samsung-TV-Fernbedienung), drücken Sie die Taste WOOFER nach oben und halten Sie sie Bei einem Samsung TV kann die Lautstärke für 5 Sekunden wiederholt gedrückt, bis „SAMSUNG-TV REMOTE“in der Anzeige der Soundbar mit der IR-Fernbedienung, die erscheint.
  • Seite 64: Verwenden Der Verborgenen Tasten (Tasten Mit Mehr Als Einer Funktion)

    2.1 Kanal 4.1 Kanal SMART 5.1 Kanal 2.1 Kanal 4.1 Kanal • Das drahtlose Rücklautsprecherkit von Samsung ist separat erhältlich. Für den Erwerb eines Kits WOOFER kontaktieren Sie den Händler, bei dem Sie die Soundbar erworben haben. DEU - 24...
  • Seite 65: Installieren Der Wandhalterung

    09 INSTALLIEREN DER Komponenten für die Anbringung an der Wand WANDHALTERUNG Montagehilfe für die Wandhalterung Vorsichtsmaßnahmen für die Installation • Installieren Sie nur an einer vertikalen Wand. • Installieren Sie nicht an einem Ort mit hoher Aufhängungsschraube Schraube Temperatur oder Feuchtigkeit. •...
  • Seite 66 2. Richten Sie die Mittellinie der Montagehilfe 5. Stecken Sie eine Schraube (nicht enthalten) für die Wandhalterung auf die Mitte des durch jede Aufhängungsschraube und Fernsehers aus (wenn Sie die Soundbar unter drehen Sie dann jede Schraube in einem dem Fernseher montieren) und befestigen Aufhängungsschraubenloch.
  • Seite 67: Soundbar Von Der Wand Abnehmen

    Soundbar von der Wand • Die linke und rechte Halterung haben eine unterschiedliche Form. Achten Sie abnehmen darauf, sie korrekt zu positionieren. 1. Um die Soundbar von der Wandhalterung zu entfernen, schieben Sie sie in Richtung des Pfeils, neigen Sie sie leicht nach oben und Wandhalterung R Wandhalterung L nehmen Sie sie dann wie dargestellt von der...
  • Seite 68: Softwareaktualisierung

    Weitere Informationen zum Schritte: Gehen Sie auf die Samsung-Website Herunterladen der Aktualisierungsdateien finden unter (samsung.com)  suchen Sie nach dem Sie auf der Samsung Electronics Webseite unter Modellnamen - wählen Sie die Option (www.samsung.com → Support). Geben Sie dann Kundendienst (Änderung der Bezeichnung...
  • Seite 69: Wenn Update Nicht Angezeigt Wird

    6. Wenn das Update abgeschlossen ist, wird die • Benutzer von Mac OS sollten als USB-Format Soundbar ausgeschaltet. Halten Sie die Taste MS-DOS (FAT) verwenden. p auf der Fernbedienung 5 Sekunden lang • Abhängig vom Hersteller des Speichergeräts ist gedrückt. „INIT“ wird auf dem Bildschirm eine Aktualisierung über USB gegebenenfalls angezeigt und die Soundbar wird nicht verfügbar.
  • Seite 70: Fehlerbehebung

    11 FEHLERBEHEBUNG Bevor Sie sich an den Kundendienst wenden, überprüfen Sie bitte die folgenden Punkte. Das Gerät wird nicht eingeschaltet. Ist das Stromkabel an die Steckdose angeschlossen? ; Schließen Sie den Netzstecker an die Steckdose an. Eine Funktion funktioniert nicht, wenn die Taste gedrückt wird. Gibt es statische Elektrizität in der Luft? ;...
  • Seite 71: Lizenz

    Wenn Sie Fragen bezüglich des Themas Open Laboratories. Dolby, Dolby Audio, Pro Logic, Source haben, wenden Sie sich bitte per E-Mail and the double-D symbol are trademarks of unter der Adresse an Samsung Dolby Laboratories. (oss.request@samsung.com). 14 WICHTIGE For DTS patents, see http://patents.dts.com.
  • Seite 72: Spezifikationen Und Leitfaden

    Halten Sie die Taste SOUND MODE für Bluetooth mindestens 5 Sekunden gedrückt, um die Anschlussdeaktivierungsmethode Bluetooth Power-Funktion auszuschalten. HINWEISE • Samsung Electronics Co., Ltd behält sich das Recht auf unangekündigte Änderungen vor. • Gewicht und Abmessungen können von den Angaben abweichen. DEU - 32...
  • Seite 73 Gewerbliche Nutzer wenden sich an ihren Lieferanten und gehen nach den Bedingungen des Verkaufsvertrags vor. Dieses Produkt und elektronische Zubehörteile dürfen nicht zusammen mit anderem Gewerbemüll entsorgt werden. Für Informationen über die Umweltverpflichtungen und produktspezifischen regulatorischen Verpflichtungen von Samsung wie z. B. REACH, WEEE, Batterien, besuchen Sie: http://www.samsung.com/uk/aboutsamsung/samsungelectronics/corporatecitizenship/data_corner.html DEU - 33...
  • Seite 74: Informations Relatives À La Sécurité

    Reportez-vous au tableau ci-dessous pour une BRANCHEZ LA FICHE AU FOND, EN explication des symboles pouvant figurer sur PRENANT SOIN D’INSÉRER LA TIGE LARGE votre produit Samsung. DANS LA FENTE LARGE. • Cet appareil doit toujours être branché à une prise terre.
  • Seite 75 Votre produit n’est pas prévu pour un usage sur le centre d’assistance clientèle en ligne de industriel. Ce produit ne peut être utilisé qu’à Samsung ou en scannant le code QR. Pour des fins personnelles. Une condensation consulter le manuel sur votre PC ou appareil peut se former si le produit ou un disque a mobile, téléchargez-le au format document...
  • Seite 76 SOMMAIRE Contrôle des Composants Insertion des piles avant l’utilisation de la télécommande (Piles AA X 2) ------------------------- Présentation du Produit Panneau avant / Panneau côté droit de la Soundbar ------------------------- Panneau inférieur de la Soundbar ------------------------- Connexion de la Soundbar Connexion de l’alimentation électrique ------------------------- Connexion de la Soundbar au Caisson de basse...
  • Seite 77 Connexion à un Appareil Mobile Connexion via Bluetooth ------------------------- Utilisation de l’application Samsung Audio Remote ------------------------- – Installation de l’application Samsung Audio Remote ------------------------- – Lancement de l’application Samsung Audio Remote ------------------------- Utilisation de la télécommande Comment utiliser la télécommande ------------------------- Réglage du volume de la Soundbar avec une télécommande de téléviseur...
  • Seite 78: Contrôle Des Composants

    • Pour acheter des composants supplémentaires ou des câbles optionnels, contactez un Centre de service Samsung ou le Service client de Samsung. • En fonction de la région, l’apparence de la fiche CA peut varier ou elle peut être fournie intégrée à...
  • Seite 79: Présentation Du Produit

    02 PRÉSENTATION DU PRODUIT Panneau avant / Panneau côté droit de la Soundbar Placez le produit de sorte que le logo SAMSUNG se trouve sur le dessus. Côté droit de la Soundbar Affichage Affiche l'état et le mode actuel du produit.
  • Seite 80: Panneau Inférieur De La Soundbar

    Panneau inférieur de la Soundbar DIGITAL AUDIO IN (OPTICAL) USB (5V 0.5A) DC 19V AUX IN DIGITAL AUDIO IN DC 19V (OPTICAL) USB (5V 0.5A) AUX IN DIGITAL AUDIO IN (OPTICAL) Permet de connecter la sortie numérique (optique) d'un appareil externe. USB (5V 0.5A) Permet de connecter un périphérique USB pour lire des fichiers musicaux sur le périphérique USB via la Soundbar.
  • Seite 81: Connexion De La Soundbar

    03 CONNEXION DE LA SOUNDBAR Connexion de l’alimentation électrique Utilisez les composants d’alimentation (1, 2, 3) pour connecter le Caisson de basse et la Soundbar à une prise électrique dans l’ordre suivant : 1 Connectez le cordon d’alimentation au Caisson de basse. 2 Connectez la fiche CA à...
  • Seite 82: Connexion De La Soundbar Au Caisson De Basse

    Rouge Activé Reconnectez. Reportez-vous aux Échec de la connexion instructions sur la connexion manuelle à la page 7. Reportez-vous aux informations de Rouge et Clignotement Dysfonctionnement contact du Centre de service Samsung bleu dans le manuel. FRA - 6...
  • Seite 83: Connexion Manuelle Du Caisson De Basse Si La Connexion Automatique Échoue

    Connexion manuelle du Caisson de basse si la connexion automatique échoue Avant d’effectuer la procédure de connexion manuelle ci-dessous : • Vérifiez que les câbles d’alimentation pour la Soundbar et le Caisson de basse sont connectés correctement. • Assurez-vous que la Soundbar est allumée. 1.
  • Seite 84: Connexion Du Swa-8500S (Vendue Séparément) À Une Soundbar

    Connexion du SWA-8500S (Vendue séparément) à une Soundbar Passez au vrai son surround sans fil en connectant votre kit d’enceintes arrière sans fil Samsung (SWA-8500S, vendu séparément) à votre Soundbar. 1. Connectez le module de réception sans fil à 2 enceintes surround.
  • Seite 85 2. Vérifiez l’état de veille du module de réception sans fil après l’avoir branché à une prise électrique. • Le voyant LED LINK (LED bleue) situé sur le module de réception sans fil clignote. Si la LED ne clignote pas, appuyez sur la touche ID SET au dos du module de réception sans fil avec la pointe d’un stylo pendant 5 à...
  • Seite 86: Connexion À Votre Téléviseur

    • Lorsque la Soundbar est connectée à un téléviseur Samsung TV sélectionné, la Soundbar peut être contrôlée à l’aide de la télécommande du téléviseur. – Cette fonction est prise en charge par les téléviseurs Samsung Smart TV sortis en 2017 et ultérieurement, et qui prennent en charge le Bluetooth lorsque vous connectez la Soundbar au téléviseur à...
  • Seite 87: Méthode 2. Connexion Sans Fil

    2. Sélectionnez le mode Bluetooth sur le téléviseur. (Pour plus d’informations, reportez-vous au manuel du téléviseur.) 3. Sélectionnez «[AV] Samsung Soundbar R4-Series» dans la liste sur l’écran du téléviseur. Une Soundbar disponible est indiquée «Need Pairing» ou «Paired» dans la liste des appareils Bluetooth sur le téléviseur.
  • Seite 88 Si la connexion de l’appareil échoue • Si la liste de Soundbar connectées précédemment (par ex. «[AV] Samsung Soundbar R4-Series» apparaît dans la liste, supprimez-la. • Ensuite, répétez les étapes 1 à 3. REMARQUE • Après avoir connecté la Soundbar au téléviseur pour la première fois, utilisez le mode «BT READY»...
  • Seite 89: Connexion À Un Appareil Externe

    05 CONNEXION À UN APPAREIL EXTERNE Raccordez un appareil externe via un réseau câblé ou sans fil pour écouter le son de l’appareil externe via la Soundbar. Connexion à l’aide d’un câble audio Optique ou Analogique (AUX) Lecteur BD/DVD / Boîtier décodeur / Côté...
  • Seite 90: Connexion D'un Périphérique De Stockage Usb

    Micro USB de la Soundbar. • Le câble adaptateur Micro USB à USB est vendu séparément. Pour l’achat, contactez un Centre de service Samsung ou le Service client de Samsung. 2. Raccordez votre périphérique USB à l’extrémité femelle du câble adaptateur.
  • Seite 91 Liste de compatibilités Extension Codec Débit d'échantillonnage Débit binaire *.mp3 MPEG 1 Layer2 16 ~ 48 kHz 80 ~ 320 kbps MPEG 1 Layer3 16 ~ 48 kHz 80 ~ 320 kbps MPEG 2 Layer3 16 ~ 48 kHz 80 ~ 320 kbps MPEG 2.5 Layer3 16 ~ 48 kHz 80 ~ 320 kbps...
  • Seite 92: Connexion À Un Appareil Mobile

    3. Lisez des fichiers musicaux à partir de l’appareil, connecté via Bluetooth, via la Soundbar. Si la connexion de l’appareil échoue • Si la liste de Soundbar connectées précédemment (par ex. «[AV] Samsung Soundbar R4-Series» apparaît dans la liste, supprimez-la.
  • Seite 93 • Vous ne pouvez pas connecter le Soundbar à un périphérique Bluetooth qui prend en charge uniquement la fonction HF (Hands Free). • Lorsque vous avez apparié la barre audio à un périphérique Bluetooth, sélectionner «[AV] Samsung Soundbar R4-Series» parmi la liste des périphériques connectés à ce périphérique placera automatiquement la barre audio en mode «BT».
  • Seite 94 Déconnexion de l’appareil Bluetooth d’une Soundbar Vous pouvez déconnecter le périphérique Bluetooth du système Soundbar. Pour les instructions, reportez-vous au manuel d’utilisation de ce périphérique. • Le système Soundbar sera déconnecté. • Lorsque la Soundbar est déconnectée de l’appareil Bluetooth, la Soundbar affichera «BT DISCONNECTED»...
  • Seite 95: Utilisation De L'application Samsung Audio Remote

    Google Play. Recherchez : Samsung Audio Remote Lancement de l’application Samsung Audio Remote Pour lancer et utiliser l’application Samsung Audio Remote, appuyez sur l’icône Audio Remote sur votre téléphone, puis suivez les instructions affichées à l’écran. Audio Remote •...
  • Seite 96: Utilisation De La Télécommande

    08 UTILISATION DE LA TÉLÉCOMMANDE Comment utiliser la télécommande Allume et éteint la Soundbar. Alimentation Appuyez pour sélectionner une source connectée à la Soundbar. PAIR • Mode BT PAIRING Source Pour activer le mode «BT PAIRING», changez la source sur le mode «BT», puis appuyez et maintenez enfoncée la touche (Source) pendant plus de 5 secondes.
  • Seite 97 Appuyez sur la touche PAIR. «BT PAIRING» s'affiche sur l'écran de la Soundbar. Vous pouvez connecter la Soundbar à un nouvel appareil Bluetooth dans ce mode en PAIR sélectionnant la Soundbar dans la liste de recherche d'appareils Bluetooth. Bluetooth PAIR SOUND MODE Appuyez sur la touche p pour mettre le fichier musical temporairement en pause.
  • Seite 98 • Fonction de restriction du volume Pour protéger votre audition, la fonction Restriction du volume limite le volume à 20 si vous allumez la Soundbar lorsque le volume est réglé plus haut que 20. – La valeur par défaut pour la fonction Restriction du volume est désactivée. Vous devez la régler sur activée pour l’activer.
  • Seite 99: Réglage Du Volume De La Soundbar Avec Une Télécommande De Téléviseur

    Utilisez d’abord le menu du téléviseur pour régler le SAMSUNG-TV REMOTE 5 Sec son de votre téléviseur Samsung sur les enceintes externes, puis utilisez votre télécommande Samsung pour contrôler le volume de la Soundbar. Pour plus d’informations, reportez-vous au manuel d’utilisateur –...
  • Seite 100: Utilisation Des Touches Dissimulées (Touches Avec Plus D'une Fonction)

    2.1 canaux 4.1 canaux SMART 5.1 canaux 2.1 canaux 4.1 canaux • Le kit d’enceintes arrière sans fil Samsung peut être acheté séparément. Pour acheter un kit, WOOFER contactez le vendeur chez qui vous avez acheté la Soundbar. FRA - 24...
  • Seite 101: Installation Du Support Mural

    09 INSTALLATION Composants de fixation au mur DU SUPPORT MURAL Guide de fixation murale Précautions d’installation Vis de fixation • Installez sur un mur vertical uniquement. • N’installez pas dans un endroit à température élevée ou humide. • Vérifiez si le mur est suffisamment robuste pour supporter le poids du produit. Sinon, renforcez le mur ou choisissez un autre Support de fixation Support de fixation...
  • Seite 102 2. Alignez la Ligne centrale du Guide de 5. Enfoncez une vis (non fournie) dans chaque fixation murale avec le centre de votre Vis de fixation, puis vissez fermement téléviseur (si vous fixez la Soundbar sous chaque vis dans un trou pour vis portante. votre téléviseur), puis fixez le Guide de fixation murale au mur avec du ruban adhésif.
  • Seite 103: Retrait De La Soundbar Du Mur

    Retrait de la Soundbar du mur • Les fixations droite et gauche ont des formes différentes. Veillez à bien les 1. Pour retirer la Soundbar de la fixation positionner. murale, poussez-la dans la direction de la flèche, inclinez-la légèrement et retirez-la du mur comme indiqué...
  • Seite 104: Mise À Jour Du Logiciel

    Nous vous recommandons d’écrire vos paramètres pour pouvoir les rétablir après la mise à jour. Notez que Samsung peut proposer des mises à jour pour le la mise à jour du micrologiciel réinitialise microprogramme du système de la Soundbar également la connexion du subwoofer.
  • Seite 105: Si Update Ne S'affiche Pas

    6. Lorsque la mise à jour est terminée, la • Les utilisateurs de Mac OS doivent utiliser Soundbar s’éteint. Appuyez sur la touche MS-DOS (FAT) comme format USB. p de la télécommande pendant 5 secondes. • L’exécution de la mise à jour via USB peut ne «INIT»...
  • Seite 106: Dépannage

    11 DÉPANNAGE Avant de contacter l’assistance, veuillez lire ce qui suit. L’unité ne s’allume pas. Le cordon d’alimentation est-il branché dans la prise murale? ; Branchez la fiche secteur sur la prise. Une fonction ne répond pas lorsque la touche est enfoncée. De l’électricité statique est-elle présente dans l’air? ; Débranchez la fiche secteur et rebranchez-la. Des distorsions sonores se font entendre en mode BT.
  • Seite 107: Licence

    12 LICENCE 13 AVIS DE LICENCE LIBRE Pour toute requête et demande concernant les sources ouvertes, contactez Samsung via e-mail à Manufactured under license from Dolby l’adresse (oss.request@samsung.com). Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of 14 REMARQUE Dolby Laboratories.
  • Seite 108: Spécifications Et Guide

    SOUND MODE pendant plus de 5 secondes pour Méthode de désactivation du port désactiver la fonction Bluetooth Power. REMARQUES • Samsung Electronics Co., Ltd se réserve le droit de modifier les caractéristiques sans préavis. • Le poids et les dimensions sont approximatifs. FRA - 32...
  • Seite 109 Ce produit et ses accessoires ne peuvent être jetés avec les autres déchets. Pour obtenir des informations sur les engagements environnementaux de Samsung et sur les obligations réglementaires spécifiques à l’appareil, par ex. la réglementation REACH WEEE, rendez-vous sur : http://www.samsung.com/uk/aboutsamsung/samsungelectronics/corporatecitizenship/data_corner.html...
  • Seite 110: Informazioni Sulla Sicurezza

    Fare riferimento alla seguente tabella per una CORRETTAMENTE E COMPLETAMENTE LA descrizione dei simboli che è possibile trovare sul SPINA. proprio prodotto Samsung. • Questo dispositivo deve essere sempre collegato ad una presa elettrica dotata di ATTENZIONE messa a terra di protezione.
  • Seite 111: Informazioni Sul Manuale

    È possibile accedere al MANUALE COMPLETO cavo di alimentazione dalla presa di corrente. nel centro di assistenza clienti Samsung online Il prodotto non è destinato all’uso industriale. scansionando il codice QR. Per visualizzare il Questo prodotto è destinato esclusivamente manuale sul proprio PC o dispositivo mobile, all’uso personale.
  • Seite 112 SOMMARIO Verifica dei componenti Inserimento delle batterie prima dell’utilizzo del telecomando (2 batterie AA) ------------------------- Panoramica del prodotto Pannello frontale / Pannello laterale destro della Soundbar ------------------------- Pannello inferiore della Soundbar ------------------------- Collegamento della Soundbar Collegamento alla rete elettrica ------------------------- Connessione della Soundbar al Subwoofer ------------------------- –...
  • Seite 113 Connessione di un dispositivo mobile Connessione tramite Bluetooth ------------------------- Utilizzo dell’app Samsung Audio Remote ------------------------- – Installazione dell’app Samsung Audio Remote ------------------------- – Avvio dell’app Samsung Audio Remote ------------------------- Utilizzo del telecomando Come utilizzare il telecomando ------------------------- Regolazione del volume della Soundbar tramite il telecomando di una TV --------------------------- Utilizzo dei pulsanti nascosti (pulsanti con più...
  • Seite 114: Verifica Dei Componenti

    • I passaggi per il collegamento all’alimentazione sono contrassegnati ( 1 , 2 , 3 ). Per ulteriori informazioni sui collegamenti all’alimentazione, consultare la pagina 5. • Per acquistare componenti aggiuntivi o cavi opzionali, contattare un Centro servizi Samsung o l’Assistenza clienti Samsung.
  • Seite 115: Panoramica Del Prodotto

    02 PANORAMICA DEL PRODOTTO Pannello frontale / Pannello laterale destro della Soundbar Posizionare il prodotto in modo tale che il logo SAMSUNG si trovi nella parte superiore. Lato destro della Soundbar Visualizzazione Consente di visualizzare lo stato e il modo attuale del prodotto. Tasto +/- (Volume) Consente di regolare il volume. • Una volta effettuata la regolazione, il livello del volume viene visualizzato sul display frontale della Soundbar.
  • Seite 116: Pannello Inferiore Della Soundbar

    Pannello inferiore della Soundbar DIGITAL AUDIO IN (OPTICAL) USB (5V 0.5A) DC 19V AUX IN DIGITAL AUDIO IN DC 19V (OPTICAL) USB (5V 0.5A) AUX IN DIGITAL AUDIO IN (OPTICAL) Collegare all’uscita digitale (ottica) di un dispositivo esterno. USB (5V 0.5A) Collegare a un dispositivo USB per riprodurre file musicali sul dispositivo USB tramite la Soundbar. AUX IN Collegare all’uscita analogica di un dispositivo esterno.
  • Seite 117: Collegamento Della Soundbar

    03 COLLEGAMENTO DELLA SOUNDBAR Collegamento alla rete elettrica Per collegare il subwoofer e la Soundbar a una presa elettrica, utilizzare i componenti di alimentazione (1, 2, 3) nel seguente ordine: 1 Collegare il cavo di alimentazione al subwoofer. 2 Collegare la spina CA all’alimentatore. 3 Collegare l’alimentatore alla Soundbar e a una presa elettrica. Vedere le figure sottostanti.
  • Seite 118: Connessione Della Soundbar Al Subwoofer

    Soundbar. Rosso Acceso Procedere nuovamente alla connessione. Connessione non riuscita Vedere le istruzioni relative alla connessione manuale a pagina 7. Rosso e Consultare il manuale per i recapiti del Lampeggiante Malfunzionamento Centro servizi Samsung. ITA - 6...
  • Seite 119: Connessione Manuale Del Subwoofer In Caso Di Connessione Automatica Non Riuscita

    Connessione manuale del subwoofer in caso di connessione automatica non riuscita Prima di eseguire la procedura di connessione manuale descritta di seguito: • Verificare che i cavi di alimentazione della Soundbar e del subwoofer siano collegati correttamente. • Assicurarsi che la Soundbar sia accesa. 1. Tenere premuto ID SET sul retro del subwoofer per almeno 5 secondi. • L’indicatore rosso sul retro del diffusore si spegne e l’indicatore blu lampeggia. 5 Sec Retro del subwoofer 2.
  • Seite 120: Collegamento Del Kit Swa-8500S (Venduto Separatamente) Alla Soundbar

    Soundbar Per provare il vero impianto audio surround wireless, collegare il kit di diffusori posteriori wireless Samsung (SWA-8500S, venduto separatamente) alla Soundbar. 1. Collegare il modulo ricevitore wireless ai 2 diffusori surround. – Il cavi dei diffusori sono identificati tramite un codice colore.
  • Seite 121 2. Dopo aver inserito il modulo ricevitore wireless in una presa elettrica, verificare che sia in stato di standby. • L’indicatore LINK a LED (LED blu) sul Modulo ricevitore wireless lampeggia. Se il LED non lampeggia, premere il tasto ID SET sul retro del Modulo ricevitore wireless con la punta di una penna per 5~6 secondi fino a che l’indicatore LINK a LED lampeggia (in blu).
  • Seite 122: Collegamento Alla Tv

    • Quando la Soundbar è collegata a specifici modelli di televisore Samsung, è possibile controllarla utilizzando il telecomando della TV. – Questa funzione è supportata dalle Smart TV Samsung del 2017 e successive che sono in grado di supportare il Bluetooth quando si collega la Soundbar alla TV con un cavo ottico.
  • Seite 123: Metodo 2. Connessione Wireless

    PAIRING”. 2. Selezionare il modo Bluetooth sulla TV. (Per ulteriori informazioni, consultare il manuale della TV.) 3. Selezionare “[AV] Samsung Soundbar R4-Series” dall’elenco visualizzato nella schermata della TV. Una Soundbar disponibile è indicata con “Need Pairing” o “Paired” nell’elenco dei dispositivi Bluetooth della TV. Per connettersi alla Soundbar, selezionare il messaggio e stabilire una connessione.
  • Seite 124 Se il dispositivo non riesce a connettersi • Se la voce relativa alla Soundbar precedentemente connessa (ad es. “[AV] Samsung Soundbar R4-Series”) compare nell’elenco, cancellatela. • Ripetere quindi i passaggi da 1 a 3. NOTA • Una volta connessa la Soundbar alla TV per la prima volta, utilizzare la modalità “BT READY” per la riconnessione.
  • Seite 125: Collegamento Di Un Dispositivo Esterno

    05 COLLEGAMENTO DI UN DISPOSITIVO ESTERNO È possibile connettersi a un dispositivo esterno tramite una rete cablata o wireless per riprodurre l’audio del dispositivo esterno tramite la Soundbar. Collegamento tramite un cavo audio (AUX) ottico o analogico Lettore BD / DVD / Decoder / Lato destro della Soundbar Console per videogiochi DIGITAL AUDIO IN (OPTICAL) OPTICAL OUT Cavo ottico USB (5V 0.5A) - AUDIO - AUX IN Cavo audio (AUX)
  • Seite 126 USB della Soundbar. • Il cavo adattatore da micro USB a USB è venduto separatamente. Per effettuarne l’acquisto, contattare un Centro servizi Samsung o l’Assistenza clienti Samsung. 2. Collegare il dispositivo USB all’estremità femmina del cavo adattatore. 3. Premere il tasto (Sorgente) sul pannello laterale destro o sul telecomando, quindi selezionare il modo “USB”.
  • Seite 127 Elenco della compatibilità Estensione Codec Frequenza di Velocità di campionamento trasmissione *.mp3 MPEG 1 Layer2 16 kHz ~ 48 kHz 80 ~ 320 kbps MPEG 1 Layer3 16 kHz ~ 48 kHz 80 ~ 320 kbps MPEG 2 Layer3 16 kHz ~ 48 kHz 80 ~ 320 kbps MPEG 2.5 Layer3 16 kHz ~ 48 kHz...
  • Seite 128: Connessione Di Un Dispositivo Mobile

    [Nome dispositivo Bluetooth] → “BT”. 3. Riprodurre file musicali dal dispositivo, connesso tramite Bluetooth, tramite la Soundbar. Se il dispositivo non riesce a connettersi • Se la voce relativa alla Soundbar precedentemente connessa (ad es. “[AV] Samsung Soundbar R4-Series”) compare nell’elenco, cancellatela. • Quindi ripetere i passaggi 1 e 2.
  • Seite 129 HF (Hands Free). • Una volta stabilito il collegamento tra la Soundbar e un dispositivo Bluetooth, selezionando “[AV] Samsung Soundbar R4-Series” dall’elenco dei dispositivi trovati, la Soundbar passa automaticamente al modo “BT”. – Disponibile solo se il Soundbar è elencato tra i dispositivi collegati al dispositivo Bluetooth.
  • Seite 130 Disconnettere il dispositivo Bluetooth dalla Soundbar È possibile scollegare il dispositivo Bluetooth dall’Soundbar. Per le istruzioni, vedere il manuale utente del dispositivo Bluetooth. • L’Soundbar viene scollegato. • Una volta disconnessa la Soundbar dal dispositivo Bluetooth, nel suo display frontale verrà visualizzato il messaggio “BT DISCONNECTED”. Disconnessione della Soundbar dal dispositivo Bluetooth Premere il tasto (Sorgente) sul pannello laterale destro o sul telecomando e passare a un modo...
  • Seite 131: Utilizzo Dell'app Samsung Audio Remote

    Utilizzo dell’app Samsung Audio Remote Installazione dell’app Samsung Audio Remote Per controllare la Soundbar con il dispositivo smart e l’app Samsung Audio Remote, scaricare l’app Samsung Audio Remote da Google Play. Ricerca di mercato : Samsung Audio Remote Avvio dell’app Samsung Audio Remote Per avviare e utilizzare l’app Samsung Audio Remote, toccare l’icona Audio Remote sul dispositivo smart e seguire le istruzioni su schermo.
  • Seite 132: Utilizzo Del Telecomando

    08 UTILIZZO DEL TELECOMANDO Come utilizzare il telecomando Consente di accendere e spegnere la Soundbar. Alimentazione Premere per selezionare una sorgente collegata alla Soundbar. PAIR • Modo BT PAIRING Sorgente Per attivare il modo “BT PAIRING”, cambiare la sorgente passando al modo “BT”, quindi tenere premuto il tasto (Sorgente) per almeno 5 secondi.
  • Seite 133 Premere il tasto PAIR. Sul display della Soundbar viene visualizzato “BT PAIRING”. In questa modalità è possibile connettere la Soundbar a un nuovo dispositivo Bluetooth PAIR selezionando la Soundbar dall’elenco di ricerca del dispositivo Bluetooth. Bluetooth PAIR SOUND MODE Premere il tasto p per sospendere temporaneamente la riproduzione di un file musicale. Premendo nuovamente il tasto, si riavvia la riproduzione •...
  • Seite 134 • Funzione di limitazione del volume Per proteggere l’udito dell’utente, la funzione Limitazione volume limita il volume a 20 se la Soundbar viene accesa quando il volume è più alto di 20. – Il valore predefinito per la funzione Limitazione volume è Non attiva. Per utilizzarla è...
  • Seite 135: Regolazione Del Volume Della Soundbar Tramite Il Telecomando Di Una Tv

    TV. La modalità predefinita per questa funzione è modalità cambia seguendo quest’ordine: il controllo mediante un telecomando Samsung. “SAMSUNG-TV REMOTE” (Modalità Se la propria TV non è una TV Samsung, seguire le predefinita) → “OFF-TV REMOTE” → indicazioni sotto riportate per modificare le “ALL-TV REMOTE”.
  • Seite 136: Utilizzo Dei Pulsanti Nascosti (Pulsanti Con Più Di Una Funzione)

    2.1 canali 4.1 canali SMART 5.1 canali 2.1 canali 4.1 canali • È possibile acquistare il kit di diffusori posteriori wireless Samsung separatamente. Per acquistare WOOFER un kit, contattare il venditore da cui avete acquistato la Soundbar. ITA - 24...
  • Seite 137: Installazione Del Supporto Aparete

    09 INSTALLAZIONE Componenti per il montaggio a parete DEL SUPPORTO A PARETE Guida per il montaggio a parete Precauzioni per l’installazione • Installare solamente su pareti verticali. • Non installare in luoghi caratterizzati da alte temperature e livelli di umidità. Rondella di fissaggio Vite • Verificare che la parete sia sufficientemente robusta da sostenere il peso del prodotto. In caso contrario, provvedere a rinforzare la parete o scegliere un altro luogo di installazione.
  • Seite 138 2. Allineare la Linea centrale della Guida per il 5. Far passare una vite (non fornita in montaggio a parete con il centro della TV (in dotazione) attraverso ciascuna Rondella di caso di montaggio della Soundbar sotto la fissaggio, quindi avvitare saldamente TV), quindi fissare la Guida per il montaggio ciascuna vite in un apposito foro. a parete alla parete con del nastro adesivo.
  • Seite 139: Rimozione Della Soundbar Dalla Parete

    Rimozione della Soundbar dalla • I supporti di sinistra e di destra hanno forme diverse. Assicurarsi di posizionarli parete correttamente. 1. Per separare la Soundbar dal supporto a parete, spingerla nella direzione indicata dalla freccia, inclinarla leggermente verso Supporto a parete D Supporto a parete S l’alto, quindi allontanarla dalla parete come illustrato nell’immagine.
  • Seite 140: Aggiornamento Del Software

    Se viene messo a disposizione un aggiornamento, scaricare il software di prodotto: è possibile aggiornare il firmware collegando un Visitare il sito Samsung su (samsung.com) dispositivo USB, su cui è stato preventivamente  cercare il nome del modello - selezionare salvato l’aggiornamento del firmware, alla porta...
  • Seite 141: Se Non Compare La Scritta Update

    6. Una volta completato l’aggiornamento, la • Gli utenti di Mac OS dovrebbero usare MS- Soundbar si spegnerà. Tenere premuto il DOS (FAT) come formato USB. tasto p del telecomando per 5 secondi. • L’aggiornamento tramite USB potrebbe non “INIT” comparirà sul display, quindi la essere disponibile, a seconda del produttore Soundbar si spegnerà.
  • Seite 142: Risoluzione Dei Problemi

    11 RISOLUZIONE DEI PROBLEMI Prima di contattare l’assistenza, controllare quanto segue. L’unità non si accende. Il cavo di alimentazione è collegato alla presa? ; Collegare la spina del cavo di alimentazione alla presa. Una funzione non risponde quando viene premuto il tasto. È presente elettricità statica nell’aria? ; Scollegare la spina del cavo di alimentazione e ricollegarla. Si verificano interruzioni dell’audio nel modo BT. ; Consultare le sezioni relative alla connessione Bluetooth, alle pagine 11 e 16. Non viene riprodotto l’audio.
  • Seite 143: Licenza

    LICENZA OPEN SOURCE Manufactured under license from Dolby Per inviare richieste e domande sulle open source, Laboratories. Dolby, Dolby Audio, Pro Logic, contattare Samsung tramite e-mail and the double-D symbol are trademarks of (oss.request@samsung.com). Dolby Laboratories. 14 NOTA IMPORTANTE SUL For DTS patents, see http://patents.dts.com.
  • Seite 144: Specifiche E Guida

    Tenere premuto il tasto SOUND MODE per più di Bluetooth 5 secondi per disattivare la funzione Bluetooth Metodo di disattivazione porta Power. NOTE • Samsung Electronics Co., Ltd si riserva il diritto di modificare le specifiche senza preavviso. • Peso e dimensioni sono approssimativi. ITA - 32...
  • Seite 145 Questo prodotto e i relativi accessori elettronici non devono essere smaltiti unitamente ad altri rifiuti commerciali. Per informazioni sugli impegni ambientali assunti da Samsung e gli obblighi normativi specifici del prodotto, ad es. REACH, WEEE, batterie, visitare la pagina http://www.samsung.com/it/aboutsamsung/sustainability/environment/our-commitment/data/...
  • Seite 146 © 2019 Samsung Electronics Co., Ltd. All rights reserved. Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care Centre. Country Contact Centre  Web Site Country Contact Centre ...

Inhaltsverzeichnis
