Layout Plant Connection Base - elco VECTRON G 04.430 DUO PLUS Betriebsanleitung

Inhaltsverzeichnis

Werbung

Verfügbare Sprachen

Verfügbare Sprachen

Function
Layout plant

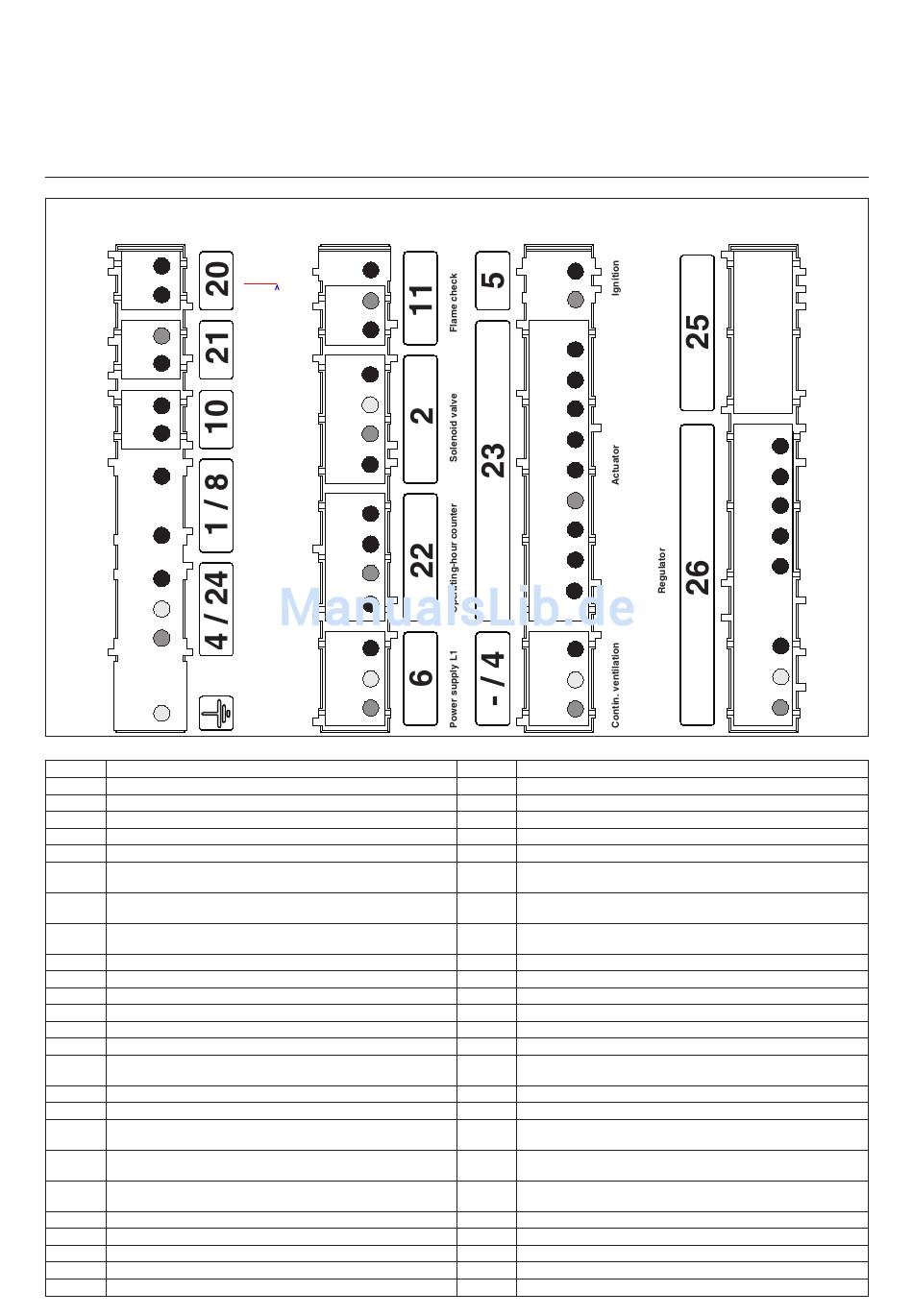

Connection base
Terminal
Plug no.
1
2
3
4
5
6
7
9
10
11
12
Terminal
1
Terminal A of control unit
2
Terminal 9 of control unit
3
Neutral
4
Terminal B of control unit
5
Terminal 4 of control unit
6
Terminal 7 of control unit
7
Terminal T2 at Wiel.-plug 7P.
9
Terminal 9 of control unit via bridge (or temperature
control) regulator
10
Terminal 4 of control unit
11
Earth (ground)
12
Neutral
15
Terminal 2 of control unit
16
Neutral (terminal 8 of control unit)
17
Terminal 9 of control unit
18
Terminal B5 at Wiel.-plug 4P. and terminal 4 of SM-plug
(full-load)
19
Earth (ground)
20
Neutral
21
Terminal 5 of control unit and terminal B4 at Wiel.-plug 7P.
(low-load)
22
Terminal 5 of control unit and terminal B4 at Wiel.-plug 7P.
(low-load counter)
23
Terminal B5 at Wiel.-plug 4P. and terminal 4 of SM-plug
(counter full-load)
24
Neutral
25
Phase
26
Phase
27
Earth (ground)
28
Neutral
30
Terminal
Plug no.
15
Remote
control
16
17
Malfunction
display
18
19
Air-pressure
switch
20
21
Gas pressure
switch
22
23
24
25
Burner motor
26
27
28
Description
06/2005 - Art. Nr. 13 018 084A
Plug no.
Terminal
29
30
31
32
33
34
35
36
37
38
39
40
41
42
Terminal
29
Terminal 3 of control unit
30
Neutral
31
Terminal T7 at Wiel.-plug 4P. (1 of SM-plug)
32
Terminal C of control unit (2 of SM-plug)
33
Terminal T1 at Wiel.-plug 7P. (3 of SM-plug)
34
Terminal B5 at Wiel.-plug 4P. (4 of SM-plug) and phase of
valve 2
35
Terminal B4 at Wiel.-plug. 7P. (5 of SM-plug) and phase of
valve 1 (terminal 5 of control unit)
36
Neutral (6 of SM-plug)
37
Terminal 3 of control unit
38
Terminal 4 of control unit (8 of SM-plug)
39
Terminal T8 at Wiel.-plug 4P. (terminal 9 of SM-plug)
40
Phase
41
Earth (ground)
42
Neutral
48
Terminal T8 at Wiel.-plug 4P.
49
Terminal T6 at Wiel.-plug 4P.
50
Terminal T7 at Wiel.-plug 4P. (1 of SM-plug)
51
Terminal T2 at Wiel.-plug 7P. via gas pressure switch
52
Terminal 9 of control unit
54
Phase
55
Earth (ground)
56
Neutral
Plug no.
Terminal
48
49
50
51
52
54
55
56
Description
