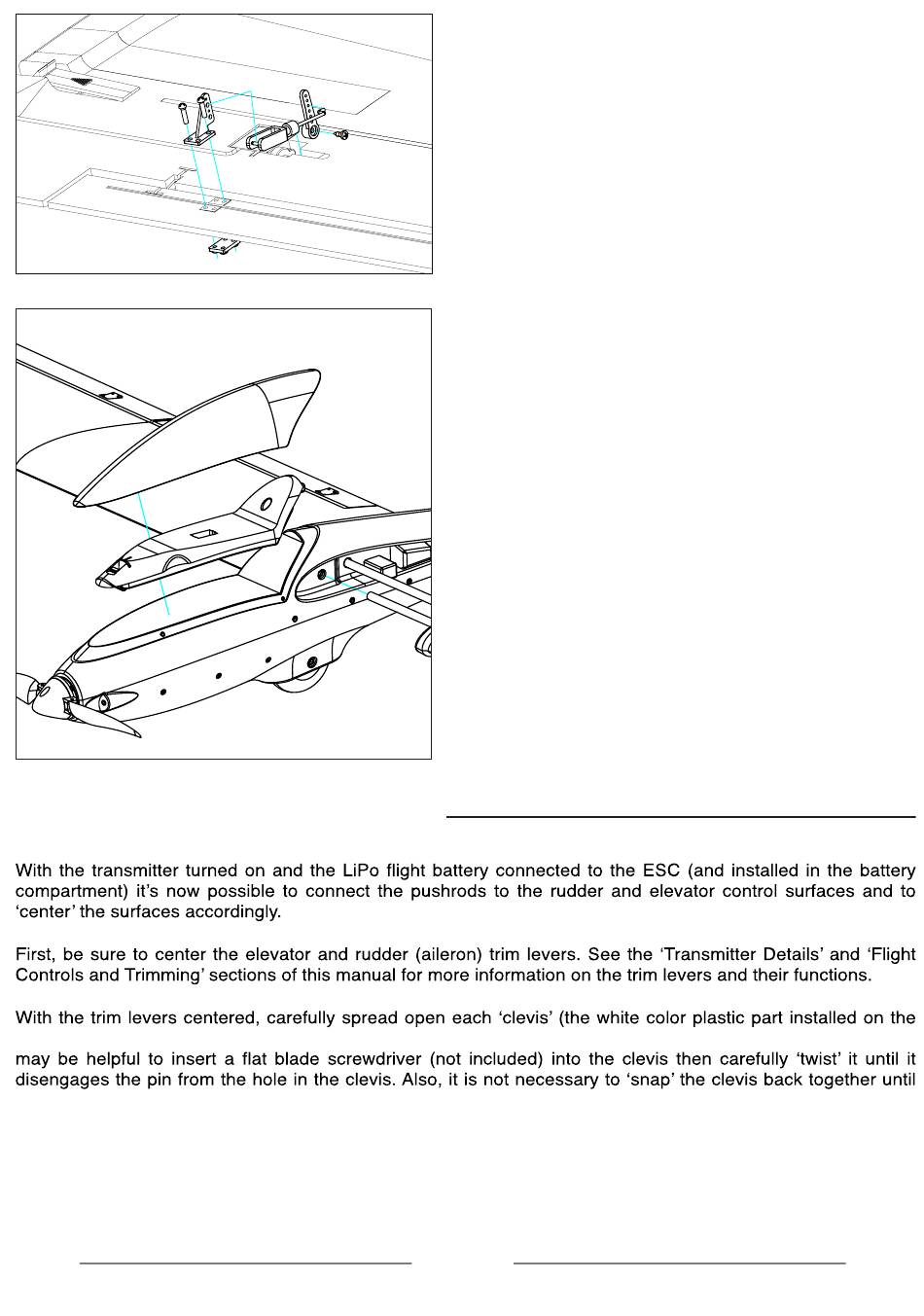

Centering the Control Surfaces
threaded end of the metal pushrod) so you can insert the pin in the OUTERMOS T hole on each control horn. It
the centering adjustments are complete.
7. Install hinge control horns to reserved position
on main wings, secured by 4pcs PB2*12 screws.
Then install push rod(40mm) to the servo on
each main wing, through the third hole counted
from servo arm edge, secured by a PWA2.3*4
screw.
Secure the clevis to the hinge control horn by
the second hole counted from the horn edge,
tightened by the rubber circle.
8. Depends on what feature you need, cover
on the camera mount(for FPV flight) or the
canopy(for normal flight).
13 / 18
