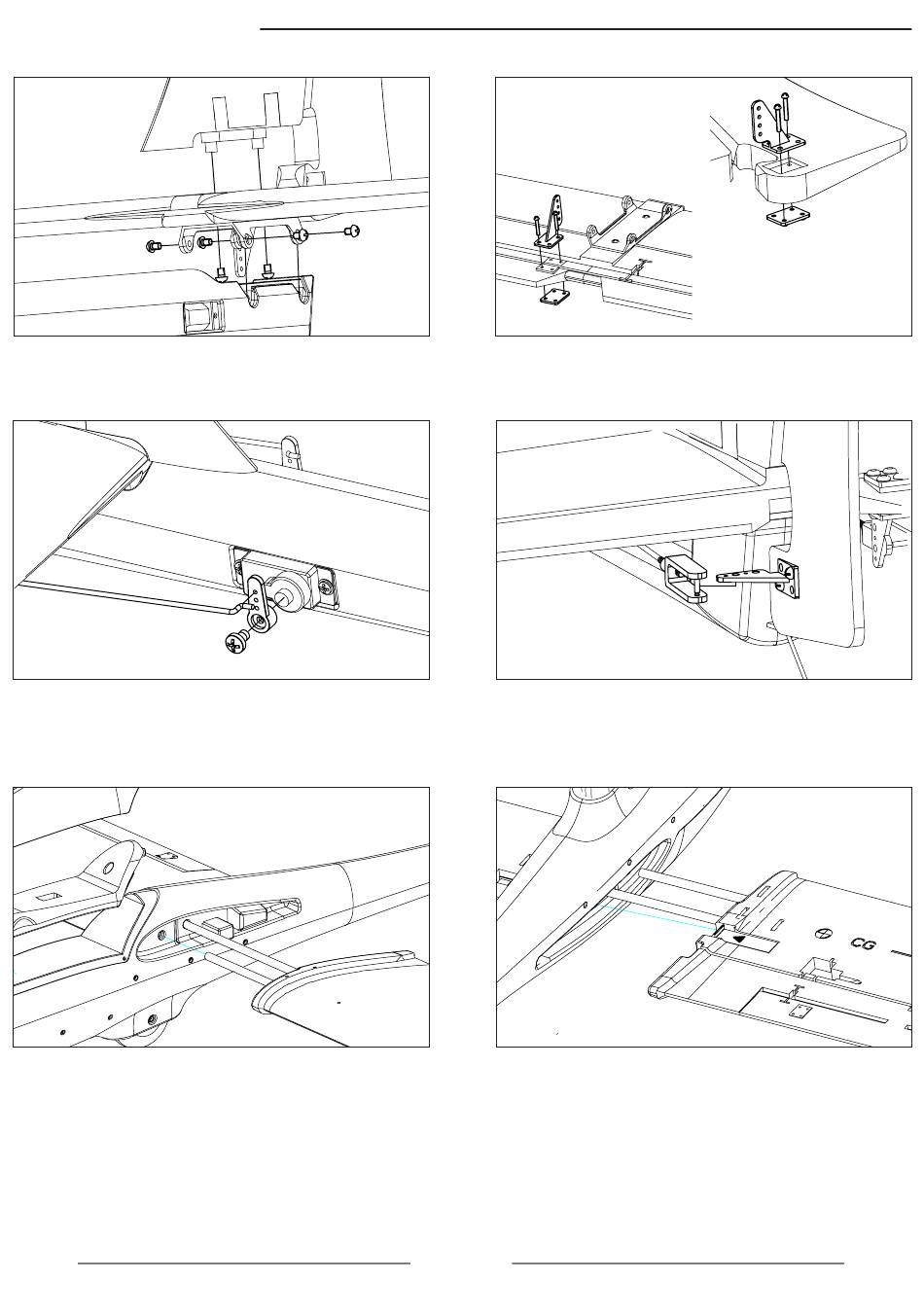

Installation Guide
1. Install the vertical tail and horizontal tail to the
fuselage as shown, secured by 6pcs PA2.6*8
screws.
3. Install push rod(115mm) to the servo on each
side of fuselage, through the third hole counted
from servo arm edge. Secured servo arm to
servo with a PWA2.3*4 screw.
5. Slot the wing connective rods to one wing,
then connect another wing through the holes of
fuselage.
2. Install hinge control horns to reserved position
on vertical tail and horizontal tail, secured by
4pcs PB2*12 screws.
.
4. Secure the clevis to the hinge control horn by
the second hole counted from the horn edge,
tightened by the rubber ring.
6. Secure the wings to the fuselage with the joint
point plastic pieces. Make sure you hear a "click"
sound to secure well.
