Matrix T-DPT Handbuch Seite 7

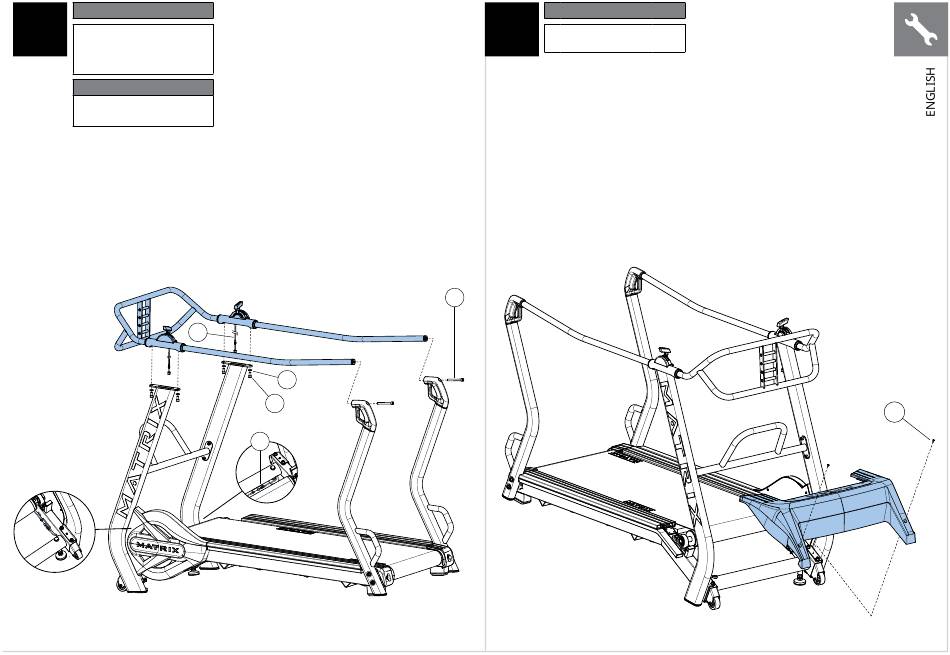

Green Hardware Bag
5
Description Qty
E Bolt 4
F Flat Washer 4
G Bolt 2
Note:
Step 5 Torque Value:
39.2 Nm / 28.9 ft-lb
1
A. Carefully pull the CABLE (1) through the
RIGHT HANDLEBAR SUPPORT using the twist
tie located inside the RIGHT HANDLEBAR
SUPPORT and attach to the CONNECTOR
CABLE (2) on the MAIN FRAME.
B. Repeat on other side.
C. Completely tighten hardware from
steps 2–5 according to the Torque
Values specified in each step.
F
E
2
Yellow Hardware Bag
6
Description
H Screw
G
Qty
2
H
7
