Preparation

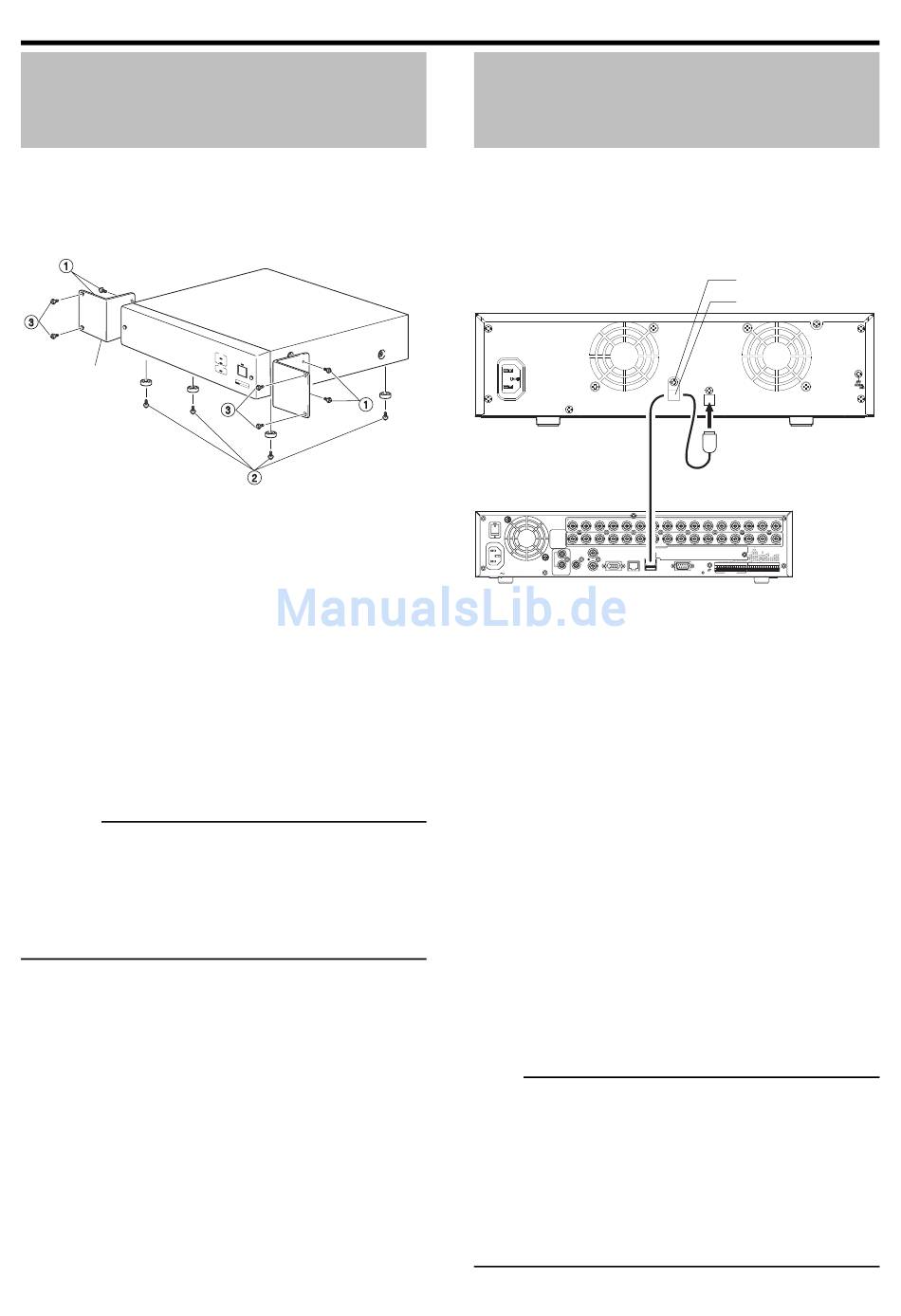

Attaching to the Rack

Use the rack mount fittings provided to attach the unit to the
EIA rack.
When installing this unit in the EIA rack, contact your
nearest JVC dealer.
Rack mount
fitting
1. Remove the unit side screws.
Remove the front panel side screws (×4).
2. Attach the rack mount fittings.
Use the four screws (M4 × 10 mm) at
sides of the unit.
3. Remove the feet (×4) from the bottom of the
unit.
Loosen the fastening screws
4. Attach the unit to the rack.
Use the provided four screws (M5 × 11 mm) at
fasten.
Caution
• Never place anything on top of a unit with a rack mount
attached. This is to prevent unbalancing the rack, tipping it
over, falling, and damaging the unit.
• When installing two or more units in a rack, leave space
between the units about the size of one unit.
➀
to fasten both
➁
and remove them.
➂
to
Connecting the Digital Video
Recorder
Before connecting the DVR and this unit, make sure that
both are switched off.
For more details about the settings and operation of the
DVR to be connected to this unit, please refer to the DVR
operating instructions.
VR-D0U
AC IN
Digital video recorder
POWER
1 2 3 4 5 6
ON
1 2 3 4 5 6
OFF
SPOT OUT
1
1
2
2
AC IN 100V AUDIO IN AUDIO OUT VIDEO OUT VGA OUT LAN
1. Connect this unit and DVR.
Use the provided cable to make the connection.
2. Fasten the connection cable.
Be sure to fasten the cable clamp (this prevents cable
disconnection).
➀
Loosen the fastener screw of the cable clamp, then
remove the cable clamp.
➁
Pass the connection cable through the cable clamp
then fasten it to the unit.
3. Connect the power cord.
Connect the power cord plug to an AC 120 V - 240 V
power outlet.
4. Switch this unit on.
5. Switch the DVR on.
6. Do the settings for the DVR.
Do the settings by following the procedures in the DVR
operating instructions.
Note
• Never switch off the unit while the HDD ACCESS display is lit.
• Always make sure that the DVR is switched off before you
switch on this power.
• Always power off the DVR before you switch off this unit.
(The HDD ACCESS display may stay lit for about 30
seconds after the DVR has been turned off. You may turn
off the power to the equipment because communication
has ended.)
Cable clamp fastener screw
Cable clamp
TO RECORDER
Connection cable (provided)
To the serial terminal
VIDEO IN
7 8 9 10 11 12 13 14 15 16
7 8 9 10 11 12 13 14 15 16
THROUGH OUT
SIGNAL
SERIAL RS-232C ALARM IN
GND
E-5
