3. Install the new batteries. Note the polarity illustration in the
battery compartment (see Figure 3 below).

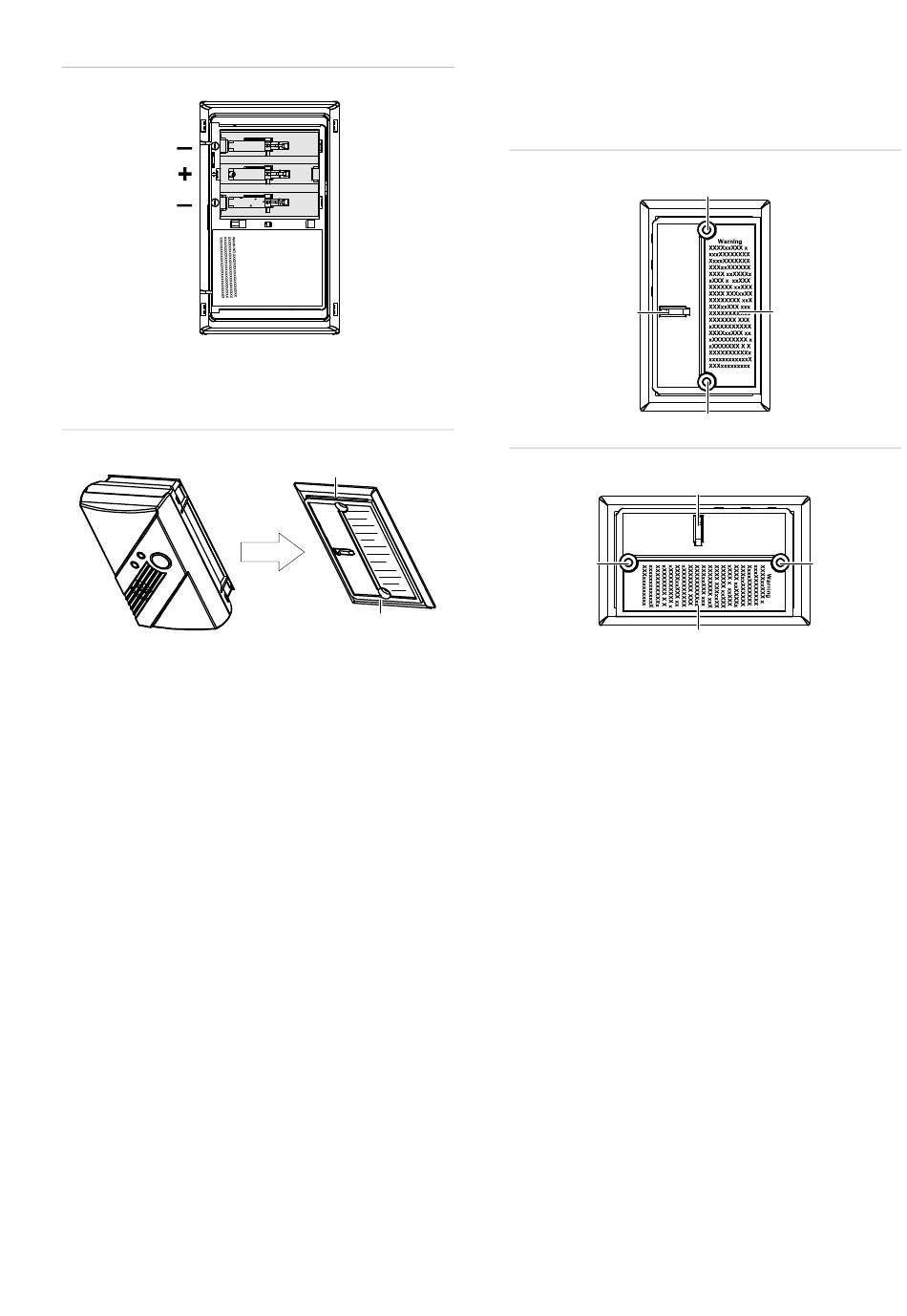

Figure 3: battery compartment
4. Slide the body back onto the mounting plate.
Note: The mounting plate will not close if all three
batteries are not installed.
Figure 4: Sliding the alarm on the mounting plate
(1), (2) Alarm mounting guides
Perform a sensor/RF test with the control panel. See "RF
5.
communication test" on page 4.
When replacing the batteries, use one of the following
approved brands:
•
Duracell MN 1500
For battery replacement information, see interlogix.com.
Use of a different battery may have a detrimental effect on the
alarm operation.
Notes
•
Do not use lithium batteries in this unit.
•
Constant exposures to high or low humidity may reduce
battery life.
After installing or changing the batteries, reinstall your alarm.
Test your alarm by using the Test/Hush button and check that
the green power LED is on.
Mounting the alarm
Note: Verify RF performance prior to permanently mounting
the sensor. See "RF communication test" on page 4.
The CO alarm can be wall mounted or ceiling mounted.
P/N 3102145 (ML) • REV C • ISS 15JUL15
To mount the alarm:
1.
(1)
(2)
2.
3.
Programming
The following section provides a general guideline for
programming (learning) the unit into control panel memory.
Refer to the panel documentation for complete programming
details.
To add the CO alarm to panel memory:
1.
2.
3.
4.
5.
6.
7.
Note:
manufactured. The unique ID is enrolled into the control panel
Slide the body off of the mounting plate. Place the
mounting plate in the desired location, and mark the
location of the two mounting holes. Orient the mounting
plate vertically or horizontally as shown in the following
figures.
Figure 5: Vertical mounting
(2)
Figure 6: Horizontal mounting
(4)
(1) Mounting hole
(2) Mounting latch
Insert the two screws provided and secure the mounting
plate to the wall or ceiling surface.
After the mounting plate is secured, slide the alarm over
the mounting plate (see Figure 4 above).
Set the panel to program mode.
Proceed to the Learn/Add Sensors menu.
Select the desired sensor number.
Trip the wall tamper by removing the alarm body from the
mounting plate.
When the panel prompts you for sensor group number,
enter the appropriate group number based on the system
panel.
At the panel, exit program mode.
Place the alarm body back onto the mounting plate.
Each CO alarm is programmed with a unique ID when
(1)
(3)
(4)
(2)
(1)
(3)
(3) Alarm procedure label
(4) Mounting hole
