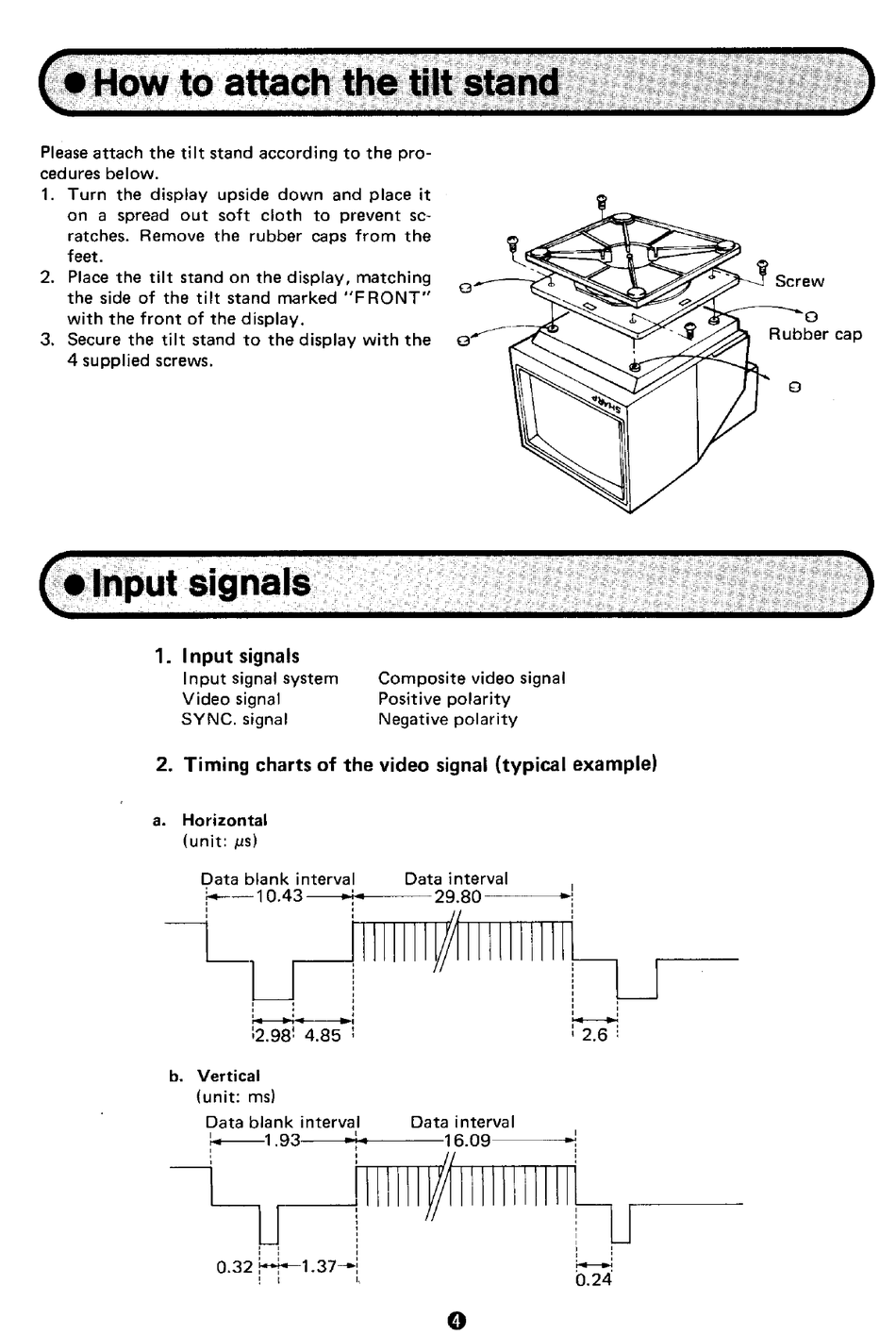

(. How to attach the tilt
stand
Please attach the tilt stand according to the pro-
cedures below.
1. Turn the display upside down and place it
on a spread out soft cloth to prevent sc-
ratches. Remove the rubber caps from the
feet.
2. Place the tilt stand on the display, matching
the side of the tilt stand marked "F RONT"
with the front of the display.
3. Secure the tilt stand to the display with the
4 supplied screws.
(_Input signals
1. I nput signals
I nput signal system
Video signal
SYNC. signal
Composite video signal
Positive polarity
Negative polarity
2. Timing charts of the video signal (typical example)
8.
Horizontal
(unit:
j.ls)
Data blank interval
Data interval
I
!--10.43
.:.
29.80
-i
~IIIIIIIIII~,---
:
:
1
!
:
i+------+'I~,
~
:2.98! 4.85 :
: 2.6 :
b. Vertical
(unit: ms)
Data blank interval
Data interval
r~3 lilll,,~ili"""'i~~
I
,
:
:
:
0.32 H-1.37--:
~
!
I
I,
0.24
o
)
